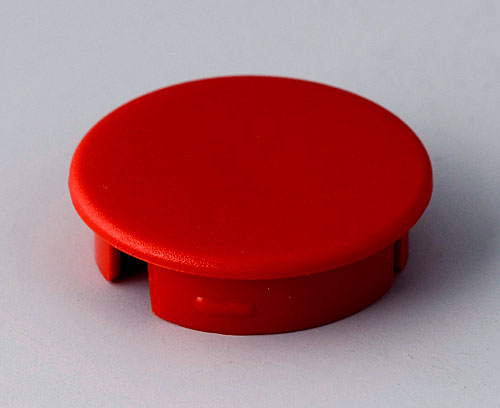

A4120002

Cover 20, without line

Suitable for round and wing knob 20. Cover simply to pin up.

Supply

1 cover

Disegno PDF 2D
3D/2D download

Create la vostra scheda dati PDF per A4120002

Selezionate le informazioni prodotto per la vostra scheda dati.

Aggiungi al carrello Aggiungi al carrello Aggiungi al carrello
Prodotto aggiunto alla lista
continua o Vai al carrello

System components to complete

A2520040 ROUND KNOB 20, without line

A2520040

ROUND KNOB 20, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 round knob

A2520040

ROUND KNOB 20, without line
Prodotto aggiunto alla lista

black RAL 9005
20x15mm
Foro assiale 4mm
A2520060 ROUND KNOB 20, without line

A2520060

ROUND KNOB 20, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer.
Max. torque: assembly = 1,0 Nm, function = 0.9 Nm.

Supply 1 round knob

A2520060

ROUND KNOB 20, without line
Prodotto aggiunto alla lista

black RAL 9005
20x15mm
Foro assiale 6mm

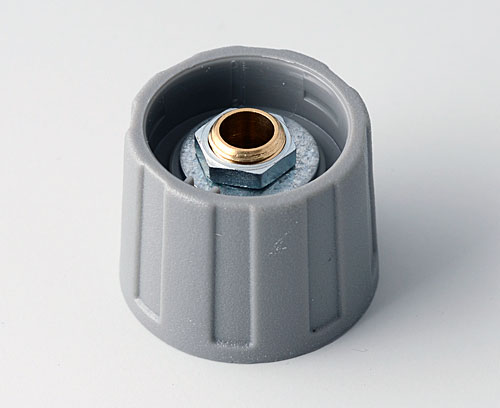

A2520068 ROUND KNOB 20, without line

A2520068

ROUND KNOB 20, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer.
Max. torque: assembly = 1,0 Nm, function = 0.9 Nm.

Supply 1 round knob

A2520068

ROUND KNOB 20, without line
Prodotto aggiunto alla lista

dusty grey RAL 7037
20x15mm
Foro assiale 6mm
A2520630 ROUND KNOB 20, without line

A2520630

ROUND KNOB 20, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer.
Max. torque: assembly = 1,0 Nm, function = 0.9 Nm.

Supply 1 round knob

A2520630

ROUND KNOB 20, without line
Prodotto aggiunto alla lista

black RAL 9005
20x15mm
Foro assiale 1/4″

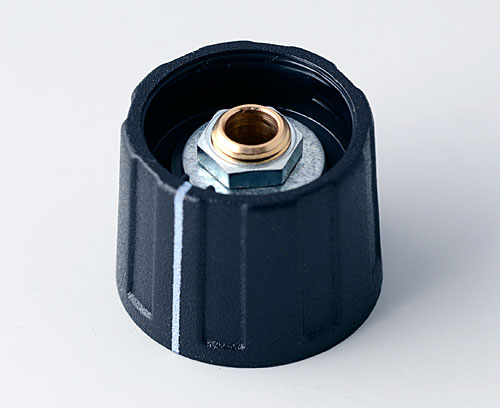

A2620040 ROUND KNOB 20, with line

A2620040

ROUND KNOB 20, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. White marking.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 round knob

A2620040

ROUND KNOB 20, with line
Prodotto aggiunto alla lista

black RAL 9005
20x15mm
Foro assiale 4mm
A2620060 ROUND KNOB 20, with line

A2620060

ROUND KNOB 20, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 1,0 Nm, function = 0.9 Nm.

Supply 1 round knob

A2620060

ROUND KNOB 20, with line
Prodotto aggiunto alla lista

black RAL 9005
20x15mm
Foro assiale 6mm
A2620068 ROUND KNOB 20, with line

A2620068

ROUND KNOB 20, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. Black marking.
Max. torque: assembly = 1,0 Nm, function = 0.9 Nm.

Supply 1 round knob

A2620068

ROUND KNOB 20, with line
Prodotto aggiunto alla lista

dusty grey RAL 7037
20x15mm
Foro assiale 6mm

Customising options for A4120002

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Materiale

Colore
red RAL F12/0-10
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
0,35 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany

Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione A4120002 e non dimenticare di chiedere la quotazione!
