DIN modulární skříňka
A9067219
SMART-CASE L, Vers. II
Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.
VersionWithout battery compartment
SupplyCase-top and base, assembly kit
2D PDF Zobrazení
3D PDF Zobrazení
3D/2D ke stažení
3D/2D ke stažení
Generovat PDF pro A9067219
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
Přidat do košíku
Accessory "station"
A9166004
Set of pull-relief
For pull-relief of cable-connected applications. To be mounted onto the towers provided in the case or station.
Supply 2 preshaped pull-relief clamps, 2 self-tapping screws
A9166004
Set of pull-reliefProdukt byl přidán do Vašeho košíku.
volcano
A9167039

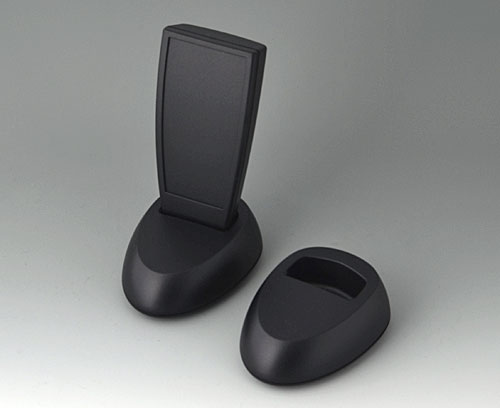

Station L
Attractive and practical station for holding your SMART CASE L with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided, for SMART-CASE L without battery compartment only). Pillars for PCB mounting, and strain relief to the rear.
Supply Bottom and top part, rubber feet, assembly kit
A9167039
Station LProdukt byl přidán do Vašeho košíku.
black RAL 9005
A9193032
Spring contact
Spring contact, round with ballpoint tip and collar for transmitting charging current. Drilled hole necessary, then self-locking. Further contact established by means of a soldered stranded wire on the fixed outer surface or PCB mounting. Load-carrying capacity up to 3 A. 1.5 mm stroke, 0,3 N. Extremely low contact resistance.
Supply 1 spring contact
A9193032
Spring contactProdukt byl přidán do Vašeho košíku.
Accessory "protection"
A9167002
Sealing L
Application: for a higher protection class. For versions II - V.
Supply 1 Sealing kit
A9167002
Sealing LProdukt byl přidán do Vašeho košíku.
Accessory "wall/holder"
A9167005
Adhesive foil L
For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.
Supply 1 piece
A9167005
Adhesive foil LProdukt byl přidán do Vašeho košíku.
A9167029
Holding clamp
Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply 1 holding clamp, assembly kit
A9167029
Holding clampProdukt byl přidán do Vašeho košíku.
black RAL 9005
A9167309
Holder L
Special holder for SMART-CASE L for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm. The contour in the rear facilitates receiving also SMART-CASE L with clip.
Supply 1 holder
A9167309
Holder LProdukt byl přidán do Vašeho košíku.
black RAL 9005
Accessory "carrying"
A9100002
Ring eyelet
For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.
Supply 1 ring eyelet
A9100002
Ring eyeletProdukt byl přidán do Vašeho košíku.
volcano
A9167019
Belt/pocket clip
Design: Special clip for SMART-CASE M, L and XL. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply 1 Clip, assembly kit
A9167019
Belt/pocket clipProdukt byl přidán do Vašeho košíku.
black RAL 9005
Accessory "screws"
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)Produkt byl přidán do Vašeho košíku.
Accessory
A9193030
Contact pin
Contact pin, round with flat flange for transmitting charging current. Stepped bore necessary, then self-locking. Further contact established by means of a soldered stranded wire in the internal drilled hole. Load-carrying capacity up to 15 A. Extremely low contact resistance.
Supply 1 contact pin
A9193030
Contact pinProdukt byl přidán do Vašeho košíku.
Customising options for A9067219
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technická data
-
Nákresy / Info
- Kupní data
Materiál
Bottom part
Top part
Třída produktu
Necessary accessories: sealing,
Barva
black RAL 9005
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Délka
140 mm
Šířka
62,7 mm
Výška
30,5 mm
PCB length, base
89 mm
PCB width, base
51 mm
PCB length, top
117 mm
PCB width, top
51 mm
Keypad length
103,5 mm
Keypad width
51,2 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 409 KB
- AutoCAD DWG-File 1 520 KB
- AutoCAD DXF-File 5 866 KB
- 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 1 300 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 0001211A.x_t 1 230 KB
- 0001211A.STEP 3 377 KB
- 0001211A.SAT 4 048 KB
Weight/1 part
75 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
