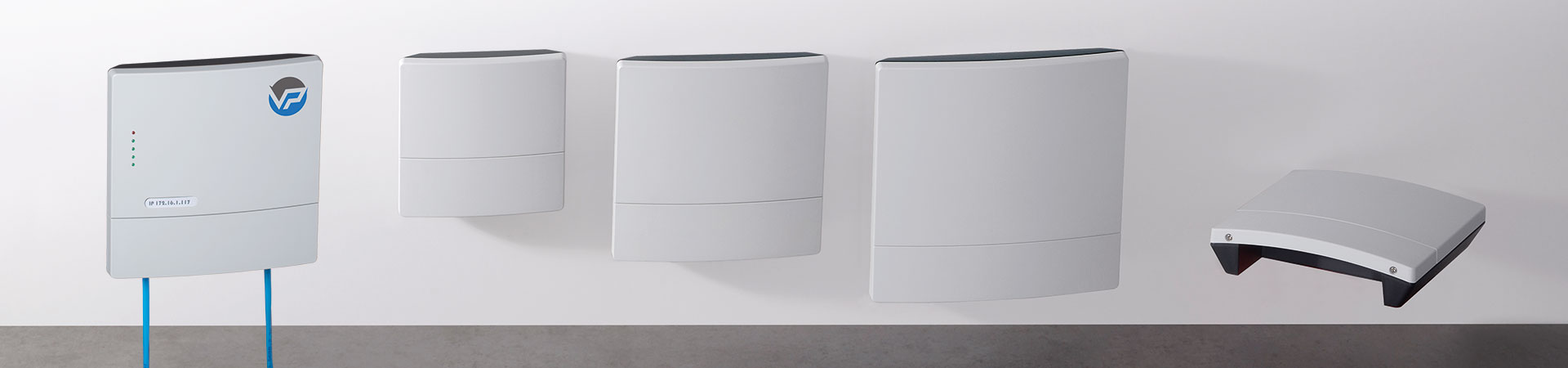

DIN modulární skříňka
Net-Box

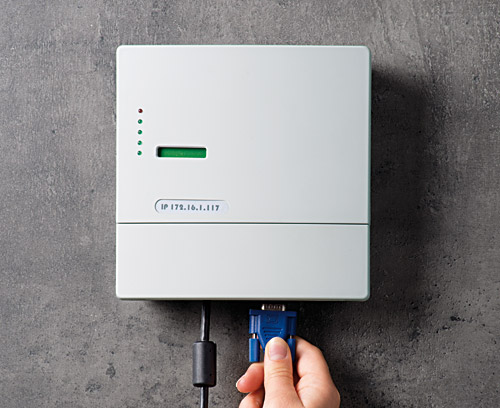

Elegantní řídící centrála
Nová série NET-BOX, která je dodávána na zeď, je svěží a vzrušující.

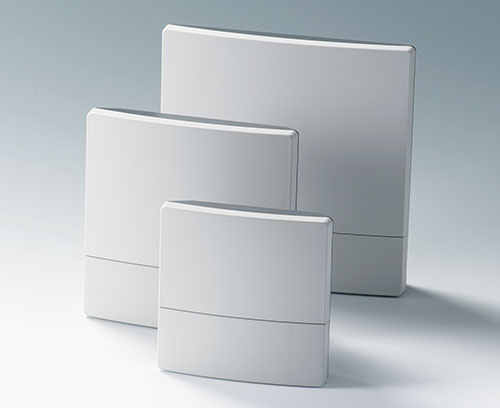

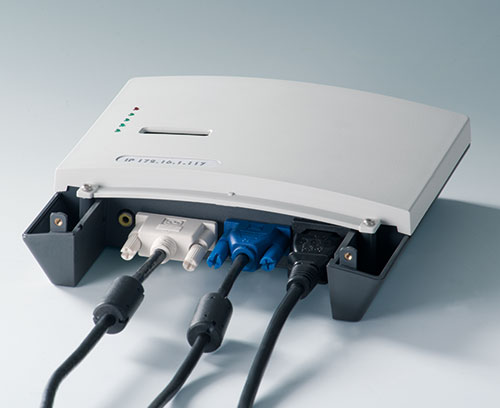

- Tři velikosti s dostatkem prostoru pro elektroniku a rozhraní

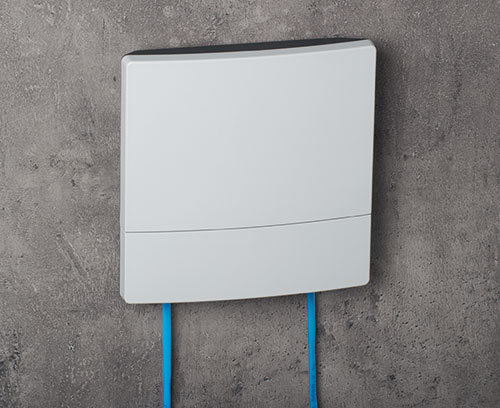

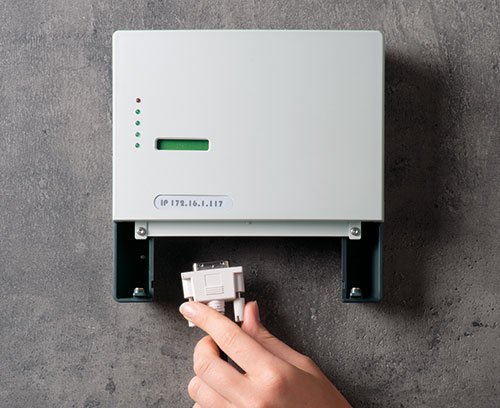

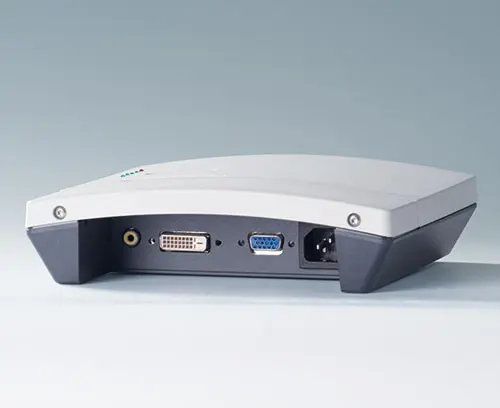

- Skryté šrouby a konektory

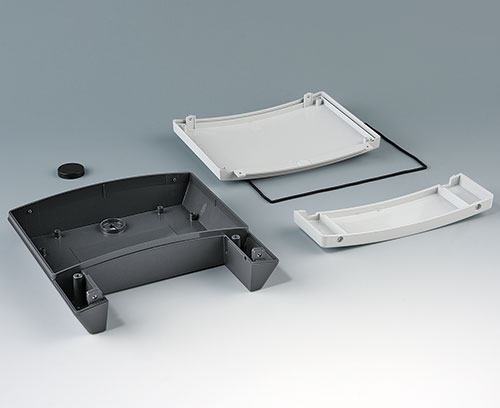

- Vysoce kvalitní materiál V0 a volitelná ochrana IP 65 (těsnicí sada jako příslušenství)

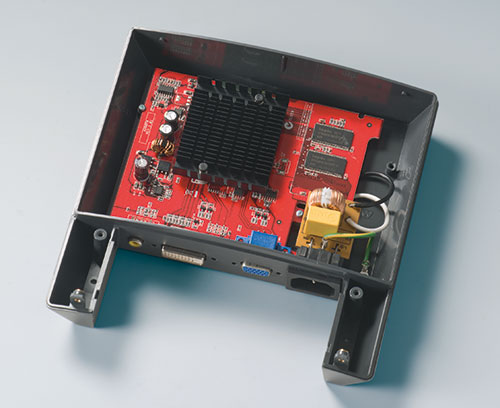

- Prostorná elektronická místnost s dvěma úrovněmi desky
- Volitelný kryt zavírá kazetu dolů a umožňuje montáž další desky
- Jednoduchá instalace na tři stěny
- Šrouby z nerezové oceli se zabezpečeným pohonem Torx
- NET-BOX lze použít také jako skříň na plochu (protiskluzové nožky jako příslušenství)

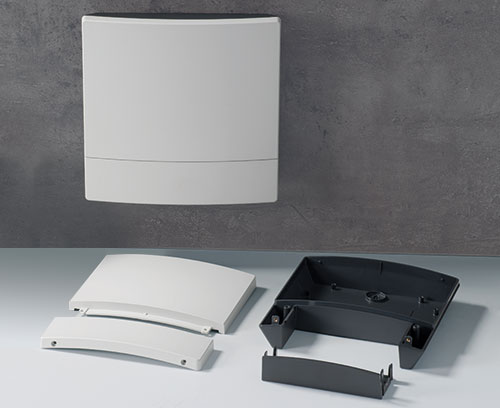

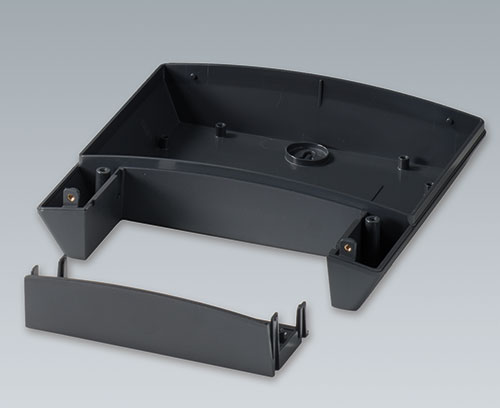

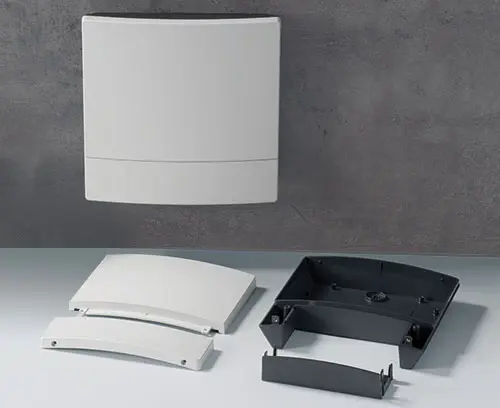

- Třídílné tělo, které se skládá ze základny, vrchního krytu a rámu

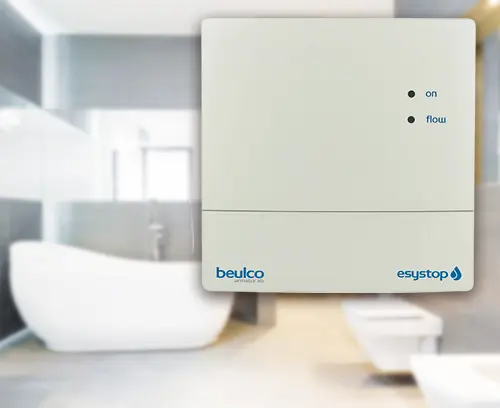

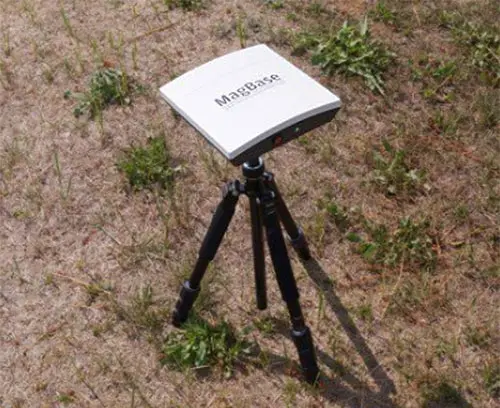

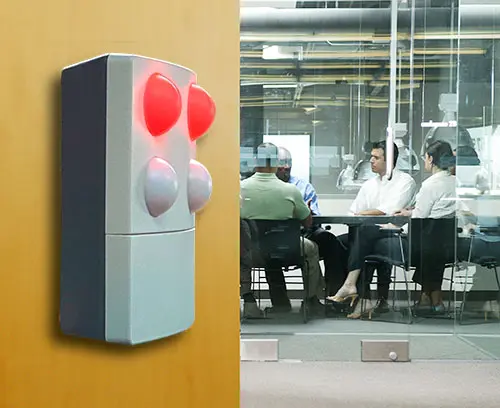

Obory aplikací

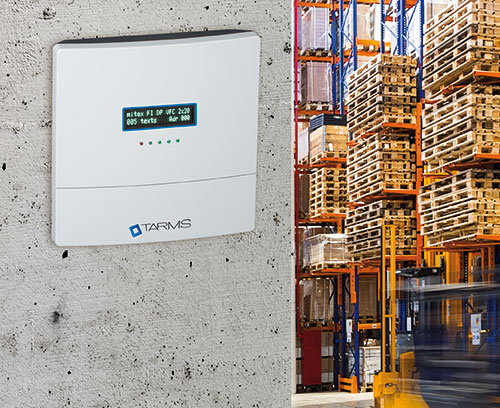

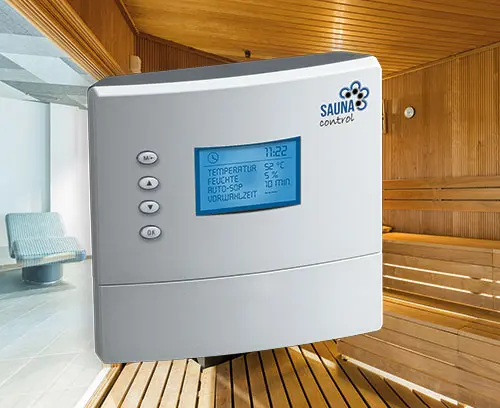

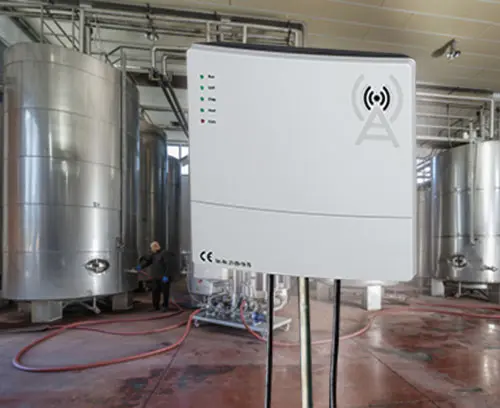

Budovy, řídící centra, monitorovací systémy, IoT/IIoT, řízení přístupu, systémy pro získávání a sběr dat, počítačové periferie, měření a řízení, lékařská technologie, smart factory, industry 4.0, atd.
B3214101
Version Bottom part without openings.
Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit
B3214101
NET-BOX 140, Vers. Ilight grey RAL 7035
140x140x46,5mm
,

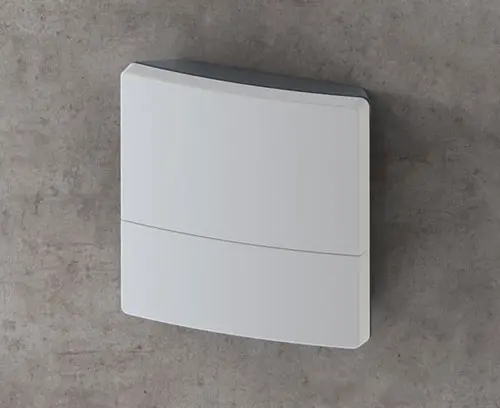

B3214201
Version Bottom part with openings for concealed three-point wall mounting: 1 keyhole for central mounting and 2 holes to secure the enclosure on the bottom right and left.
Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit
B3214201
NET-BOX 140, Vers. IIlight grey RAL 7035
140x140x46,5mm

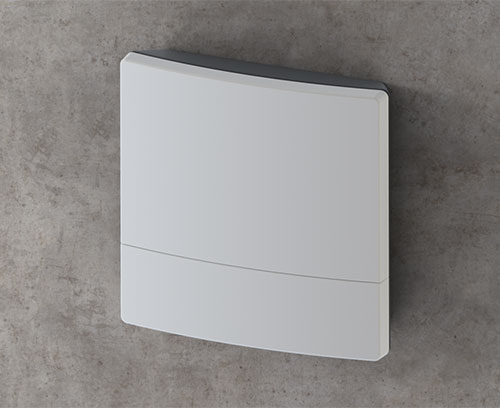

B3218101
Version Bottom part without openings.
Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit
B3218101
NET-BOX 180, Vers. Ilight grey RAL 7035
180x180x48,5mm
,
B3218201
Version Bottom part with openings for concealed three-point wall mounting: 1 keyhole for central mounting and 2 holes to secure the enclosure on the bottom right and left.
Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit
B3218201
NET-BOX 180, Vers. IIlight grey RAL 7035
180x180x48,5mm

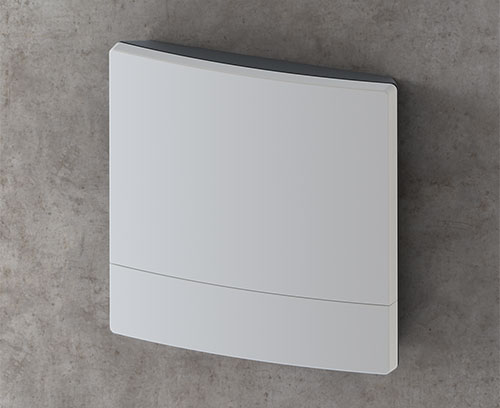

B3222101
Version Bottom part without openings.
Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit
B3222101
NET-BOX 220, Vers. Ilight grey RAL 7035
220x220x50,5mm
,
B3222201
Version Bottom part with openings for concealed three-point wall mounting: 1 keyhole for central mounting and 2 holes to secure the enclosure on the bottom right and left.
Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit
B3222201
NET-BOX 220, Vers. IIlight grey RAL 7035
220x220x50,5mm
A0306031
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
A9207150
Supply 2 rubber feet
A9207150
Anti-slide feet 6.5 x 2 mmA9325018
For the secure and stable mounting of IP rated electronic enclosures to poles, masts, and pipes using cable ties or stainless steel screw bands, suitable for pole diameters from 30 mm. The bracket is attached to the rear of the enclosure (four drilled holes required) and is manufactured from UV resistant material.
Note:
Every application (environment, sealing requirements, enclosure size/version, mast diameter, etc.) is different. For this reason, no mounting screws, cable ties or stainless steel screw bands are supplied; only the mast/pipe bracket is included. However, on request, we can provide a wide range of solutions tailored precisely to the intended application.
Supply 1 pole/mast mounting bracket
A9325018
Pole/mast mounting bracketanthracite grey RAL 7016
100x100x20mm

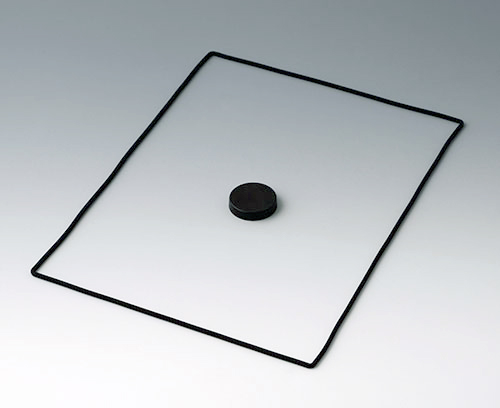

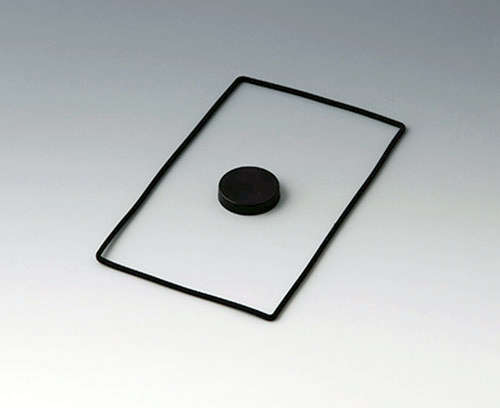

B3314159
Supply 1 sealing kit
B3314159
Sealing kit 140black

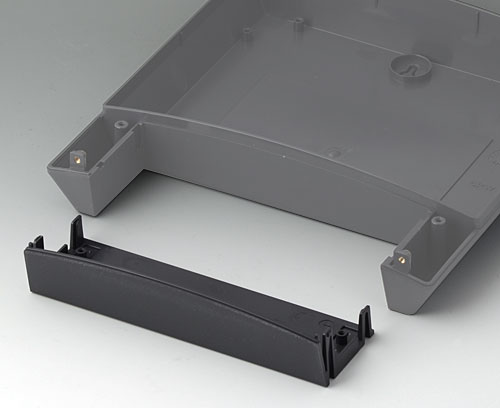

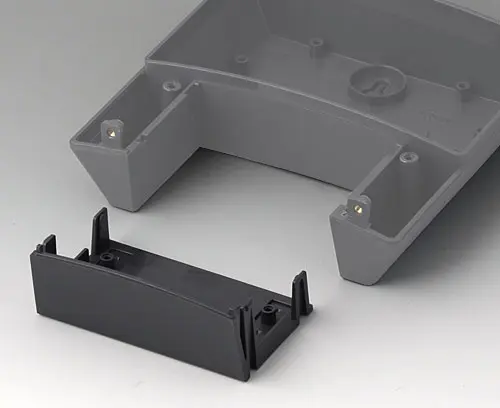

B3314918
Supply 1 infill cover
B3314918
Infill cover 140lava

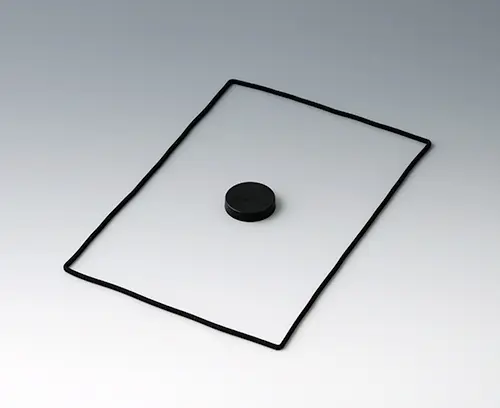

B3318159
Supply 1 sealing kit
B3318159
Sealing kit 180black
B3318918
Supply 1 infill cover
B3318918
Infill cover 180lava
B3322159
Supply 1 sealing kit
B3322159
Sealing kit 220black
B3322918
Supply 1 infill cover
B3322918
Infill cover 220lava

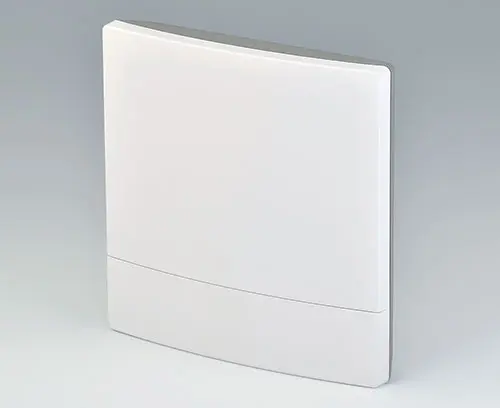

Možnosti přizpůsobení pro Net-Box
Co ještě potřebujete pro svůj vlastní velmi osobní produkt? Můžeme dodat zapouzdření a ladicí knoflíky se všemi nezbytnými úpravami pro montáž vašich elektronických součástek.
