DIN modulární skříňka
B3222101
NET-BOX 220, Vers. I

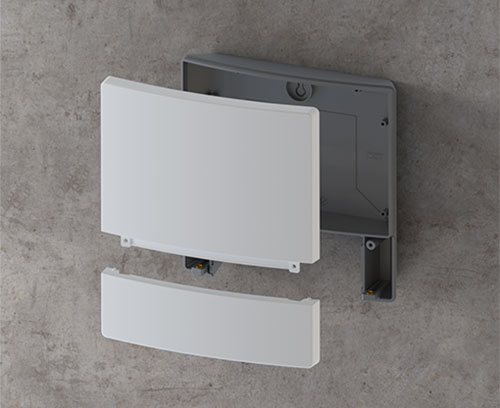

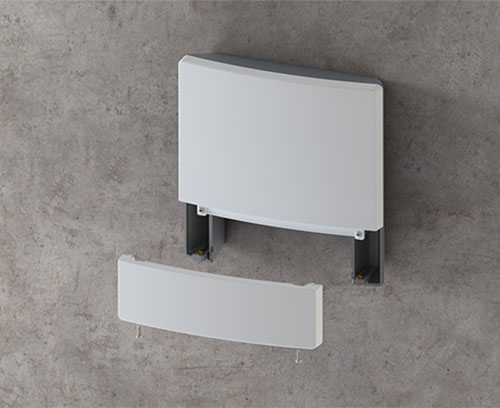

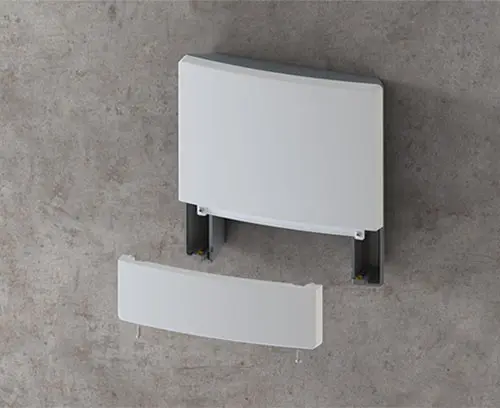

Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.
VersionBottom part without openings.
Supply1 bottom part and 1 top cover, 1 lid and 1 assembly kit
Generovat PDF pro B3222101
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
Accessory "protection"
B3322159
Supply 1 sealing kit
B3322159
Sealing kit 220black
Accessory "wall/holder"
A9325018
For the secure and stable mounting of IP rated electronic enclosures to poles, masts, and pipes using cable ties or stainless steel screw bands, suitable for pole diameters from 30 mm. The bracket is attached to the rear of the enclosure (four drilled holes required) and is manufactured from UV resistant material.
Note:
Every application (environment, sealing requirements, enclosure size/version, mast diameter, etc.) is different. For this reason, no mounting screws, cable ties or stainless steel screw bands are supplied; only the mast/pipe bracket is included. However, on request, we can provide a wide range of solutions tailored precisely to the intended application.
Supply 1 pole/mast mounting bracket
A9325018
Pole/mast mounting bracketanthracite grey RAL 7016
100x100x20mm
Accessory "screws"
A0306031
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)Accessory
A9207150
Supply 2 rubber feet
A9207150
Anti-slide feet 6.5 x 2 mm
B3322918
Supply 1 infill cover
B3322918
Infill cover 220lava
Necessary accessories: sealing kit,
Bottom part lava
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 338 KB
- AutoCAD DWG-File 1 098 KB
- AutoCAD DXF-File 3 971 KB
- 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 1 421 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00015157.x_t 5 482 KB
- 00015157.step 13 718 KB
- 00015157.sat 13 605 KB
(OKW product)
