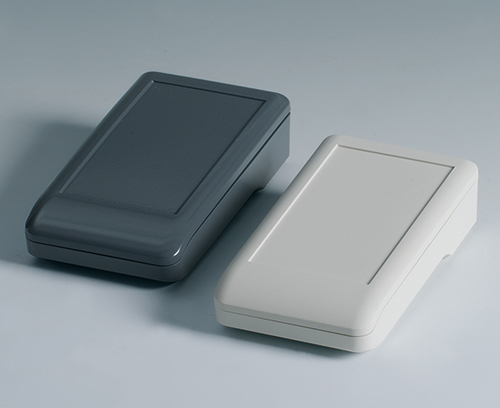

Datec-Compact
Kompaktní zapouzdření do ruky

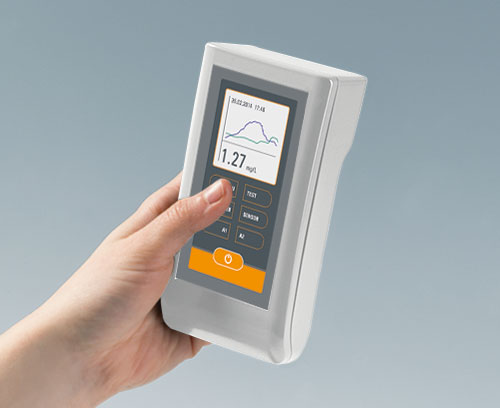

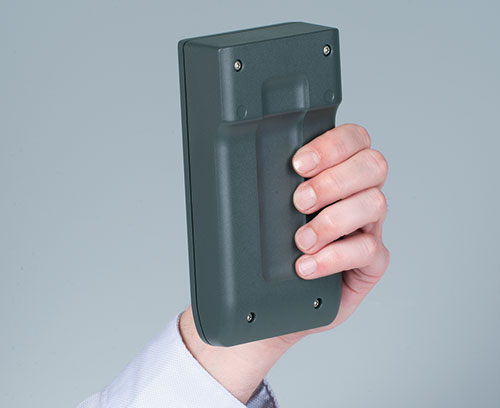

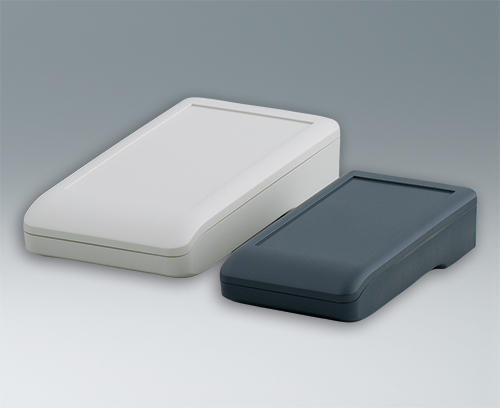

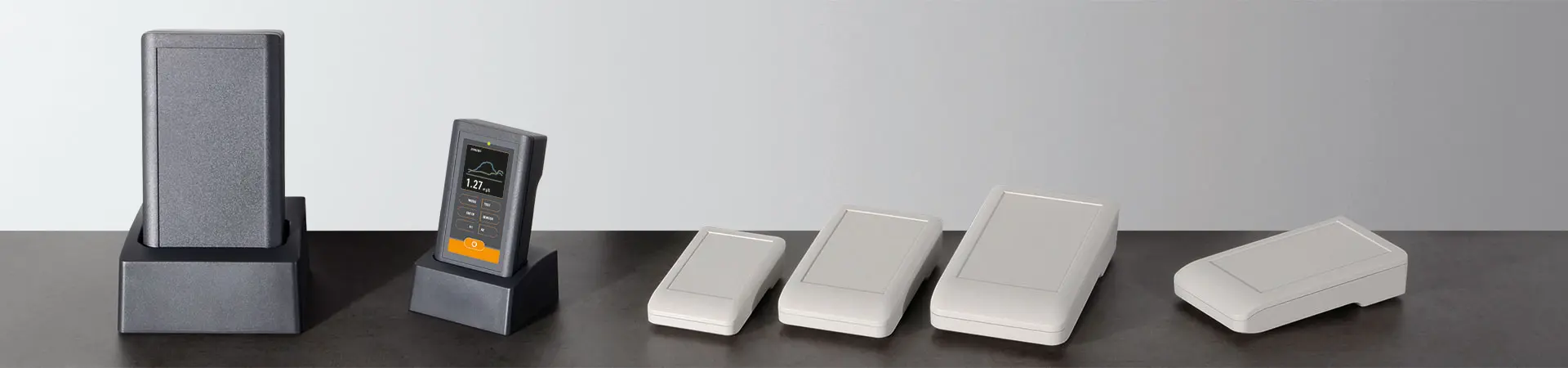

Nová ruční pouzdra DATEC-COMPACT mají obzvlášť kompaktní a robustní design, ideální pro použití s mobilními zařízeními.
- Robustní a vysoce kvalitní materiál ASA + PC-FR pro venkovní použití (venkovní)
- Vysoký stupeň ochrany IP 65 s nepříznivým testem prostředí;
Alternativní třída ochrany IP 41 bez těsnění pro nízkoenergetický kryt měřiče - 3 velikosti, 2 barvy

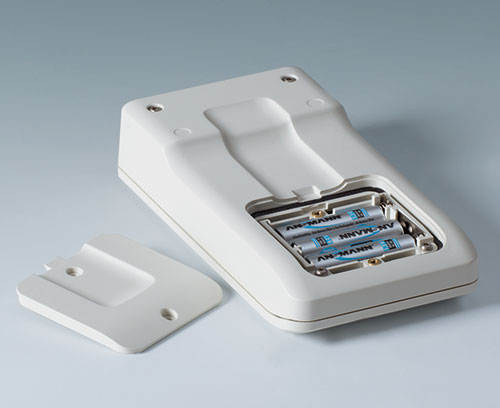

- Bez / s bateriovým prostorem pro mikrovlnné nebo mignonové články o velikosti 1,5 V; tři baterie zaručují bezpečný napájení 3V

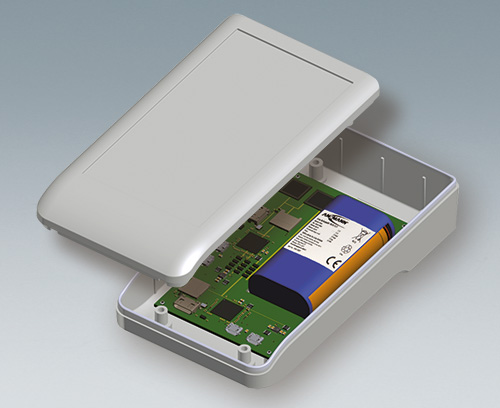

- SD karty / konektory USB lze používat uvnitř uzavřené místnosti (verze s oddělením baterií)

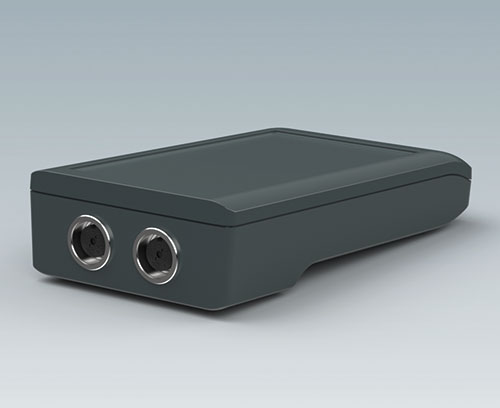

- Zásuvky pro snadné získávání dat a nabíjení přenosu proudu jako příslušenství
- Šroubové připojení se šrouby z nerezové oceli Torx
- Další příslušenství: Kontaktní pružinová souprava a pozlacené kontakty
Learn more!
Read our blog posts on datec-compact View blog posts >>
Obory aplikací

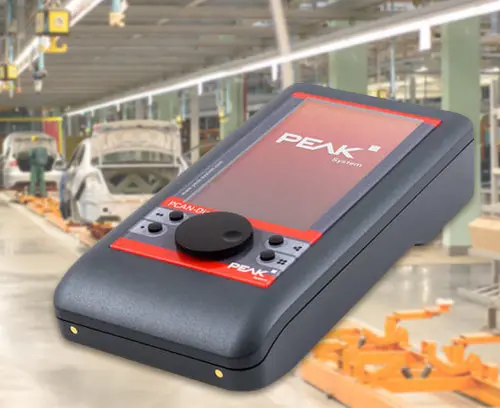

Sběr dat, řídící a regulační technika, lékařská a laboratorní technika, environmentální technologie, outdoor, smart factory, industry 4.0, atd.
Vyberte požadovanou verzi / velikost a klikněte na „vybrat“.
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)Produkt byl přidán do Vašeho košíku.
A0325060
Self-tapping screw 2.5 x 6 mm (T8)
Self-tapping screw with T8 Torx drive. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)Produkt byl přidán do Vašeho košíku.
A9105507
Station S

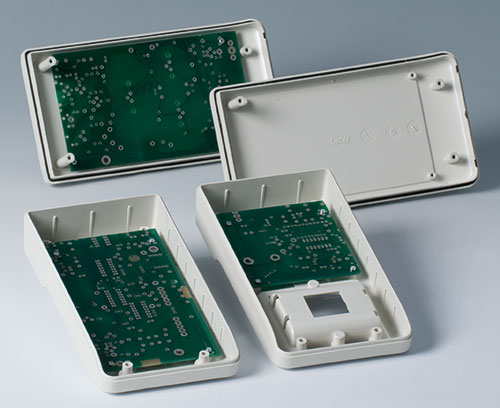

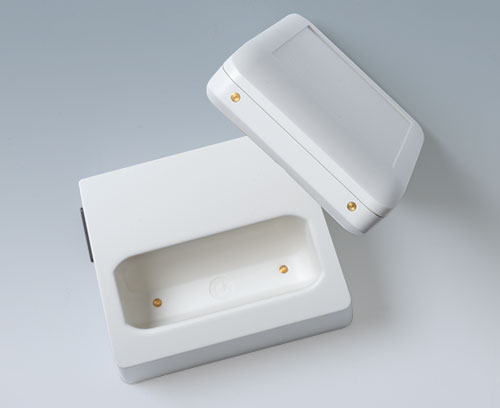

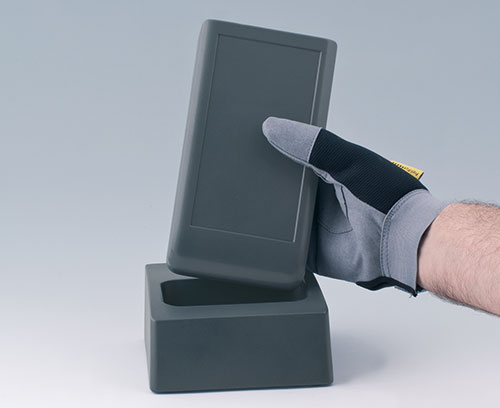

Base for the practical storage of DATEC-COMPACT S, with and without battery compartment. Ideal for charging mobile devices and transmitting data. Domes for mounting PCBs and components. Recesses for spring contacts (accessories).
Supply Station with bottom panel, rubber feet, assembly kit
A9105507
Station SProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
A9105508
Station S
Base for the practical storage of DATEC-COMPACT S, with and without battery compartment. Ideal for charging mobile devices and transmitting data. Domes for mounting PCBs and components. Recesses for spring contacts (accessories).
Supply Station with bottom panel, rubber feet, assembly kit
A9105508
Station SProdukt byl přidán do Vašeho košíku.
lava
A9105627
Holder S

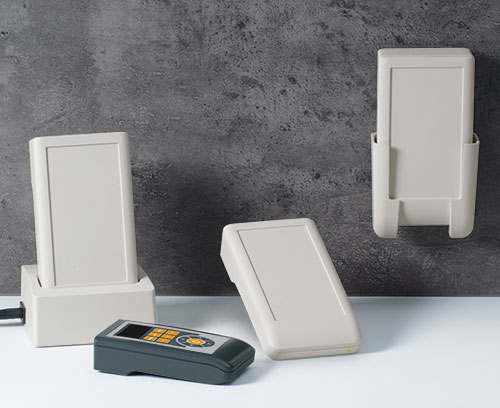

Special holder for DATEC-COMPACT S for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.
Supply 1 holder
A9105627
Holder SProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
A9105628
Holder S
Special holder for DATEC-COMPACT S for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.
Supply 1 holder
A9105628
Holder SProdukt byl přidán do Vašeho košíku.
lava
A9106507
Station M
Base for the practical storage of DATEC-COMPACT M, with and without battery compartment. Ideal for charging mobile devices and transmitting data. Domes for mounting PCBs and components. Recesses for spring contacts (accessories).
Supply Station with bottom panel, rubber feet, assembly kit
A9106507
Station MProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
A9106508
Station M
Base for the practical storage of DATEC-COMPACT M, with and without battery compartment. Ideal for charging mobile devices and transmitting data. Domes for mounting PCBs and components. Recesses for spring contacts (accessories).
Supply Station with bottom panel, rubber feet, assembly kit
A9106508
Station MProdukt byl přidán do Vašeho košíku.
lava
A9106627
Holder M
Special holder for DATEC-COMPACT M for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.
Supply 1 holder
A9106627
Holder MProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
A9106628
Holder M
Special holder for DATEC-COMPACT M for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.
Supply 1 holder
A9106628
Holder MProdukt byl přidán do Vašeho košíku.
lava

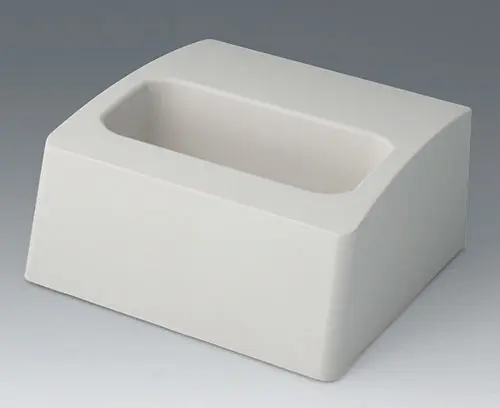

A9107507
Station L
Base for the practical storage of DATEC-COMPACT L, with and without battery compartment. Ideal for charging mobile devices and transmitting data.
Domes for mounting PCBs and components. Recesses for spring contacts (accessories).
Domes for mounting PCBs and components. Recesses for spring contacts (accessories).
Supply Station with bottom panel, rubber feet, assembly kit
A9107507
Station LProdukt byl přidán do Vašeho košíku.
off-white RAL 9002

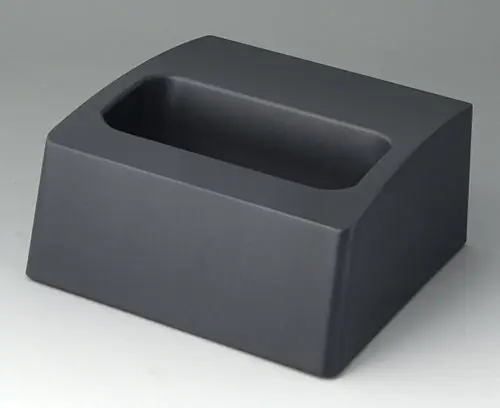

A9107508
Station L
Base for the practical storage of DATEC-COMPACT L, with and without battery compartment. Ideal for charging mobile devices and transmitting data. Domes for mounting PCBs and components. Recesses for spring contacts (accessories).
Supply Station with bottom panel, rubber feet, assembly kit
A9107508
Station LProdukt byl přidán do Vašeho košíku.
lava
A9107627

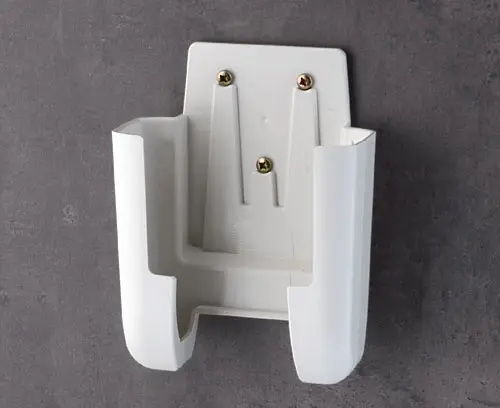

Holder L
Special holder for DATEC-COMPACT L for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.
Supply 1 holder
A9107627
Holder LProdukt byl přidán do Vašeho košíku.
off-white RAL 9002

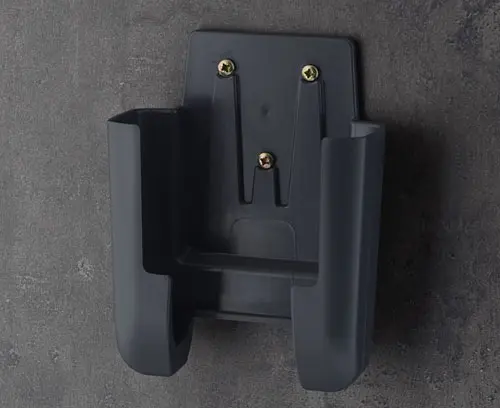

A9107628
Holder L
Special holder for DATEC-COMPACT L for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.
Supply 1 holder
A9107628
Holder LProdukt byl přidán do Vašeho košíku.
lava
A9190023
Set of battery clips, 3 x AA
For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.
Supply 2 double contacts right, 1 single contact positive, 1 single contact negative
A9190023
Set of battery clips, 3 x AAProdukt byl přidán do Vašeho košíku.
nickel-plated
A9190024
Set of battery clips, 3 x AAA
For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.
Supply 1 double contacts right, 1 double contacts left, 1 single contact positive, 1 single contact negative
A9190024
Set of battery clips, 3 x AAAProdukt byl přidán do Vašeho košíku.
nickel-plated
A9193030
Contact pin
Contact pin, round with flat flange for transmitting charging current. Stepped bore necessary, then self-locking. Further contact established by means of a soldered stranded wire in the internal drilled hole. Load-carrying capacity up to 15 A. Extremely low contact resistance.
Supply 1 contact pin
A9193030
Contact pinProdukt byl přidán do Vašeho košíku.
A9193031
Spring contact
Spring contact, round with ballpoint tip and collar for transmitting charging current. Drilled hole necessary, then self-locking. Further contact established by means of a soldered stranded wire on the fixed outer surface or PCB mounting. Load-carrying capacity up to 15 A. 1.5 mm stroke, 1,7 N. Extremely low contact resistance.
Supply 1 spring contact
A9193031
Spring contactProdukt byl přidán do Vašeho košíku.
A9207150
Anti-slide feet 6.5 x 2 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply 2 rubber feet
A9207150
Anti-slide feet 6.5 x 2 mmProdukt byl přidán do Vašeho košíku.

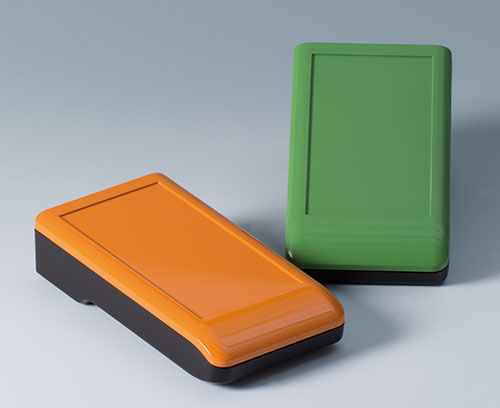

Možnosti přizpůsobení pro Datec-Compact

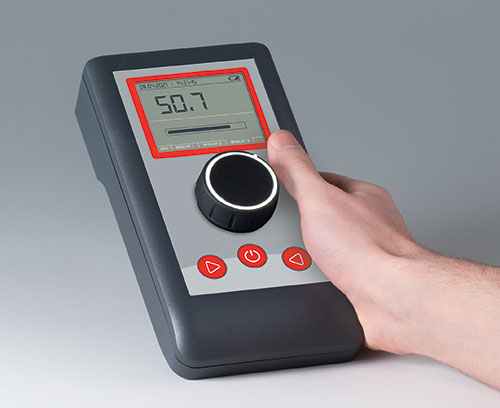

Co ještě potřebujete pro svůj vlastní velmi osobní produkt? Můžeme dodat zapouzdření a ladicí knoflíky se všemi nezbytnými úpravami pro montáž vašich elektronických součástek.
