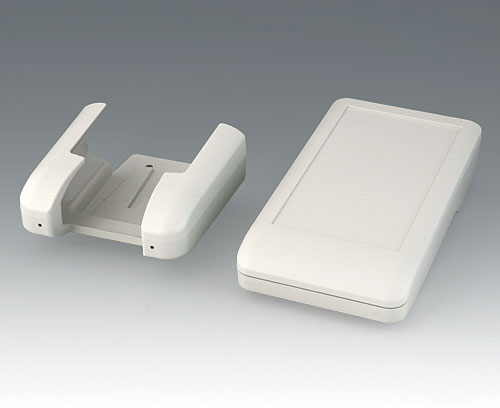

Holder L

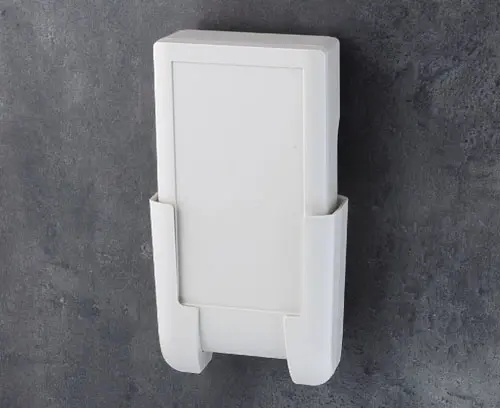

Special holder for DATEC-COMPACT L for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.
Supply1 holder
Generovat PDF pro A9107627
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.

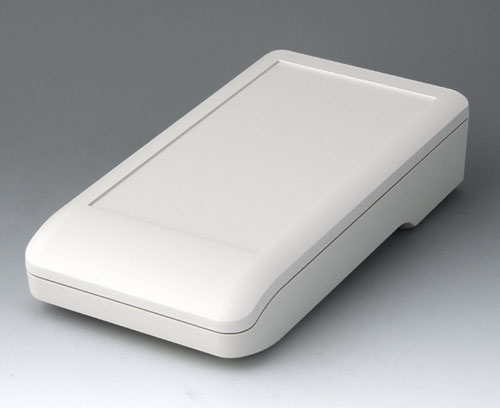

A9007107
Version Without battery compartment
Supply Top and bottom part, assembly kit
A9007107
DATEC-COMPACT Loff-white RAL 9002
206x110x47mm
A9007117
Version Without battery compartment
Supply Top and bottom part, assembly kit
A9007117
Datec-Compactoff-white RAL 9002
206x110x47mm

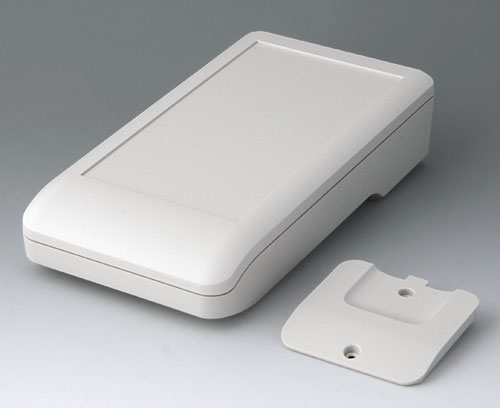

A9007207
Version With battery compartment 3 x AA
Supply Top and bottom part, battery compartment lid, assembly kit
A9007207
DATEC-COMPACT Loff-white RAL 9002
206x110x47mm
A9007217
Version With battery compartment 3 x AA
Supply Top and bottom part, battery compartment lid, assembly kit
A9007217
DATEC-COMPACT Loff-white RAL 9002
206x110x47mm
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 345 KB
- AutoCAD DWG-File 408 KB
- AutoCAD DXF-File 1 366 KB
- 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 1 312 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00017177.x_t 14 501 KB
- 00017177.step 28 960 KB
- 00017177.sat 38 308 KB
(OKW product)
Možnosti úprav: Zapouzdření můžeme upravit tak, aby vyhovovala Vašim specifickým požadavkům. Zapouzdření dodáme kompletně dokončená a připravená k použití. Už bude zbývat pouze instalace Vašich součástek nebo elektroniky. Prohlédněte si možnosti úprav pro A9107627 a nezapomeňte si vyžádat nabídku!
