Connect
Optimální připojení

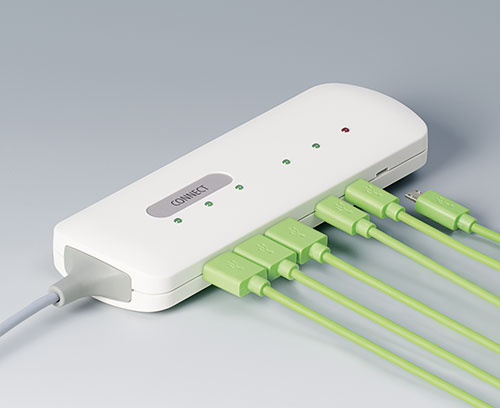

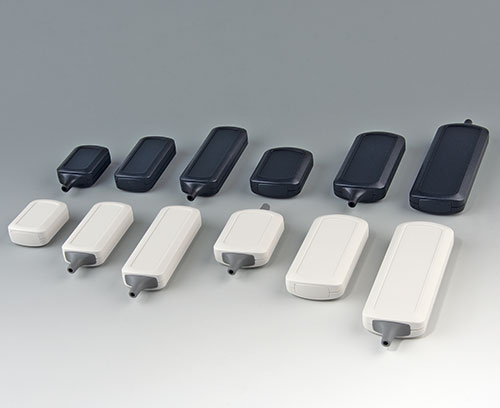

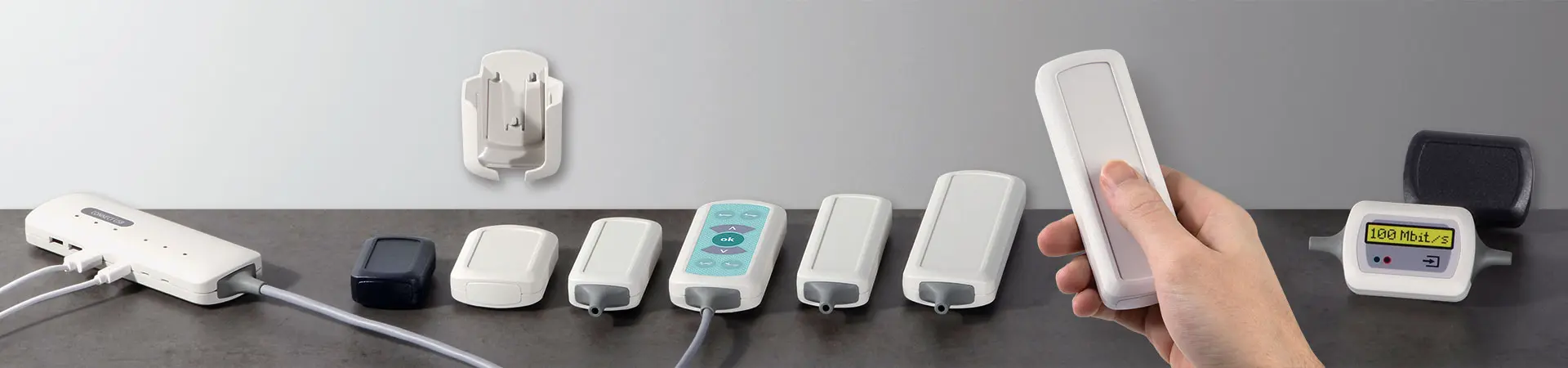

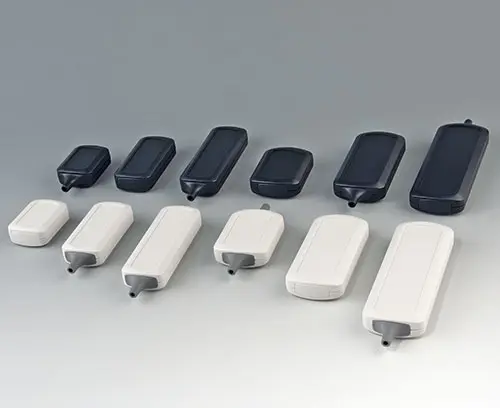

Řada zapouzdření CONNECT je ideální pro drátové a bateriově napájené přenosné aplikace.

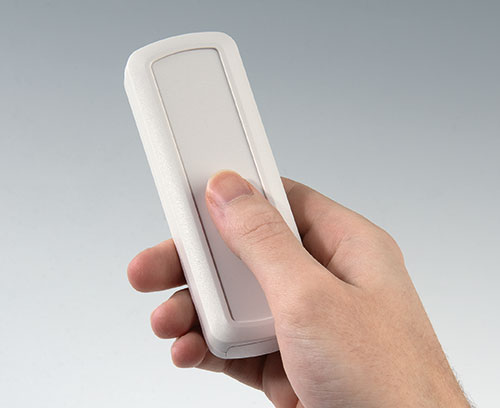

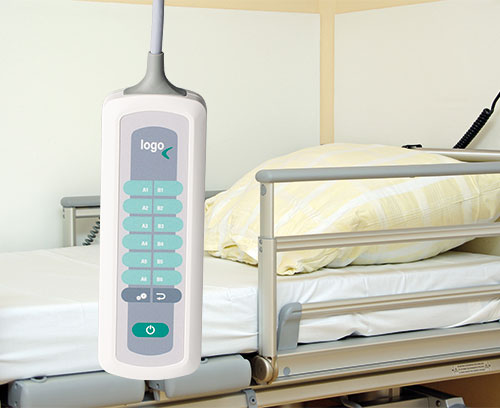

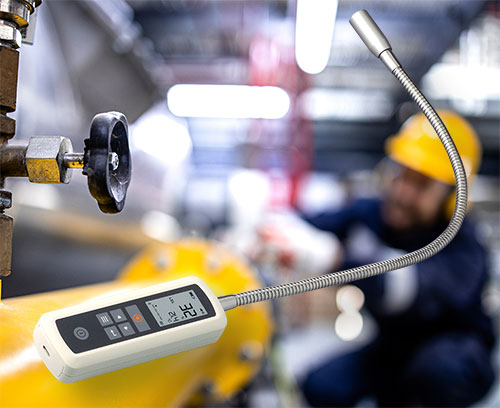

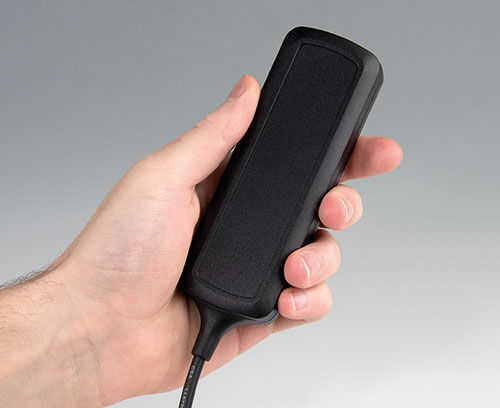

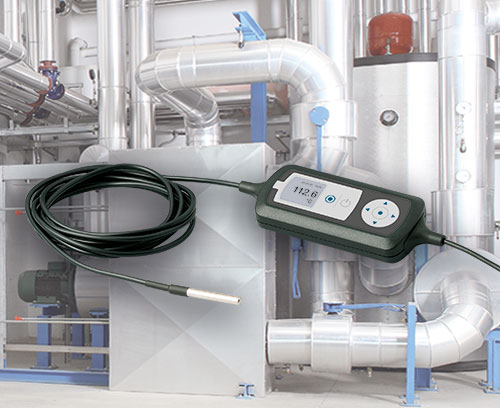

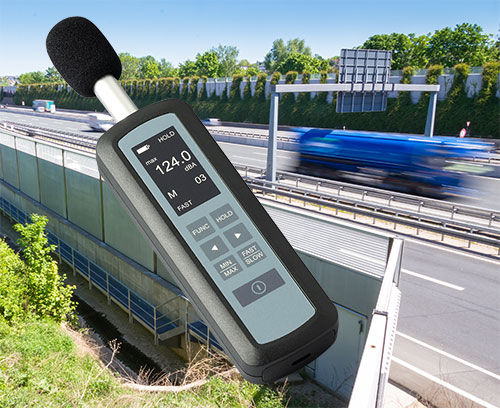

- Novinka: CONNECT S se šířkou pouhých 42 mm se obzvláště dobře drží. Je ideální pro dálkové ovladače, měřicí přístroje, testovací přístroje atd. nebo jako zapouzdření rozhraní s/bez kabelového připojení

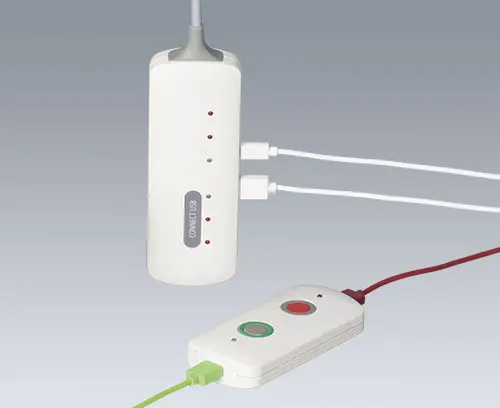

- Dvojdílné pouzdro, konvexní a ploché se zapuštěným povrchem
- Oba díly poudra jsou společně zaklapnuté, bez šroubování, což šetří čas při montáži a také je volně volitelná přední část zařízení
- Výřezy na obou koncích; pro dokončení pouzdra mohou být použity volitelné koncové uzávěry a / nebo kabelové průchodky
- CONNECT S & M ve třech různých délkách, přesně dle Vašich potřeb
- Kontejnery a koncové kryty vyrobené z UV-stabilizovaného materiálu V-0
- Stupeň krytí IP 40 (s koncové kryty)

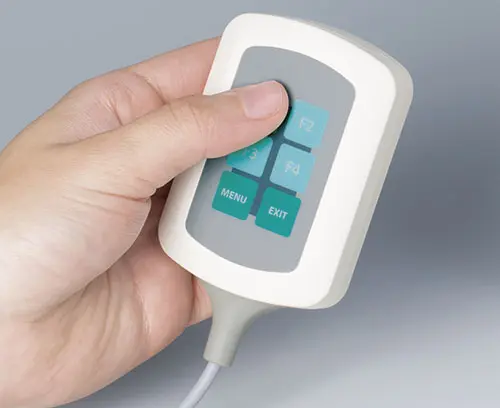

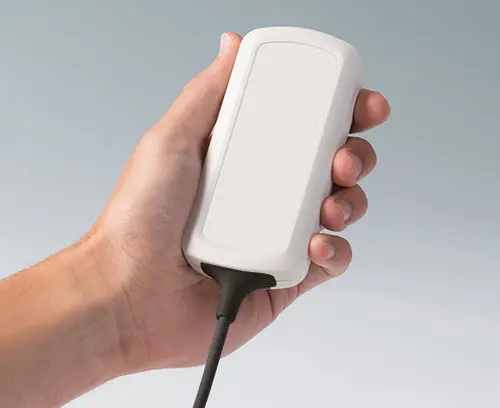

- Integrovaný odlehčovací tah s nastavením kabelové průchodky

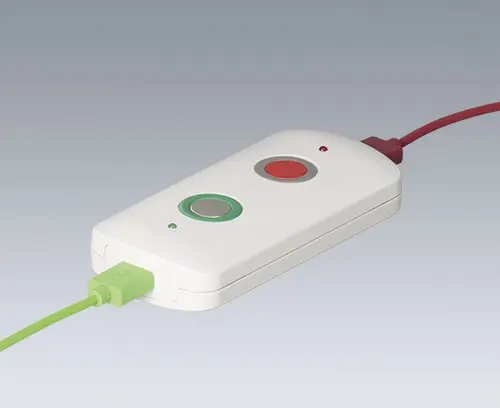

- Dostatek místa pro instalaci kompaktních displejů, LED a konektorů USB konektorů a měřicích senzorů

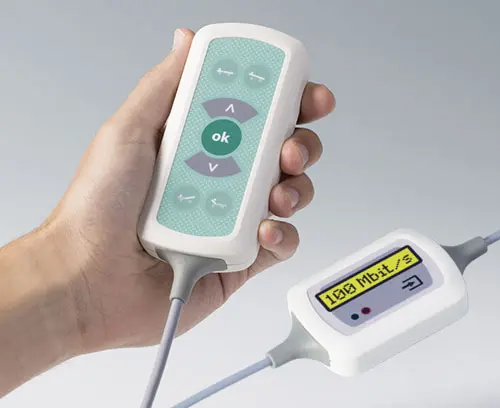

- Zapuštěná oblast pro ochranu membránové klávesnice, dekorativní fólie nebo štítku

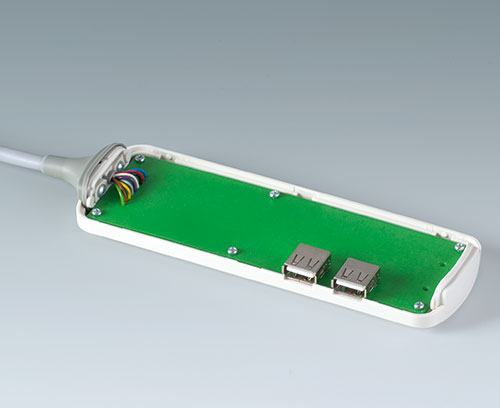

- Montážní sloupky pro desky a součásti ve zploštělém krytu skříně

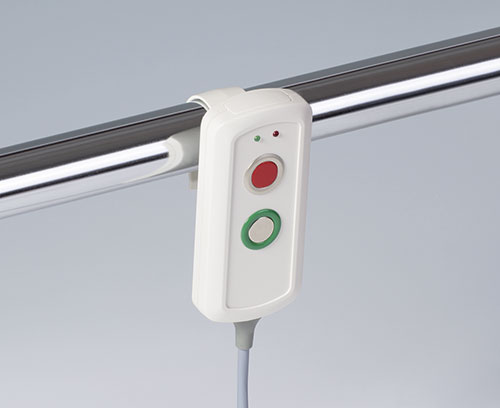

- Upevňovací spona pro kulatou trubku až do ø 32 mm jako příslušenství (CONNECT S: 90/120 mm, CONNECT M: 116/156 mm)
Learn more!
Read our blog posts on connect View blog posts >>
Obory aplikací

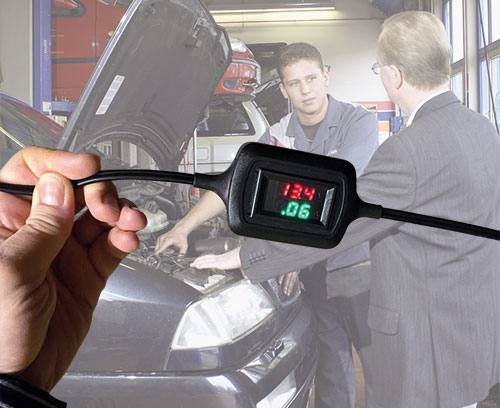

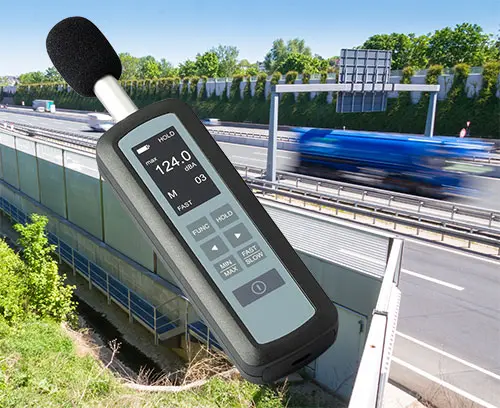

Počítačové periferie, síťové technologie, stavební technologie, zabezpečení, lékařské a terapeutické aplikace, analytické přístroje v laboratoři, měřicí technika, včetně detektorů s měřícími senzory, testovacích systémů/přístrojů, dataloggery v environmentální technice, senzorové systémy, atd.

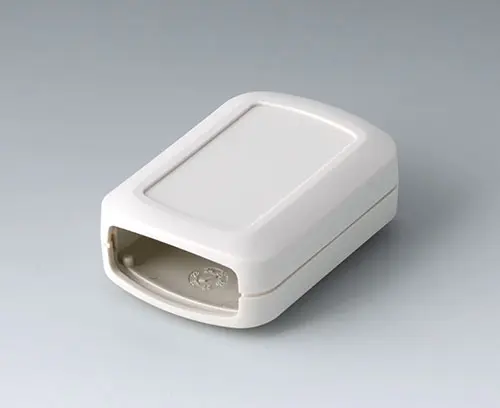

B2822107
CONNECT S
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2822107
CONNECT SProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
60x42x22mm

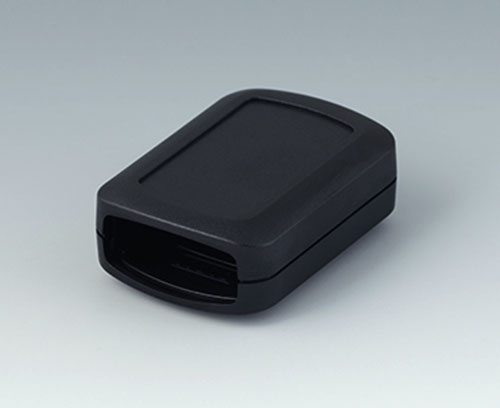

B2822109
CONNECT S
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2822109
CONNECT SProdukt byl přidán do Vašeho košíku.
black RAL 9005
60x42x22mm

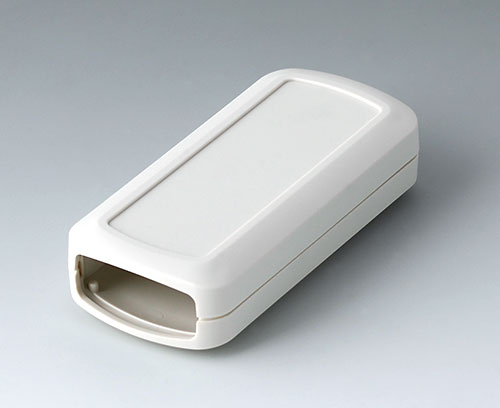

B2823107
CONNECT S
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2823107
CONNECT SProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
90x42x22mm

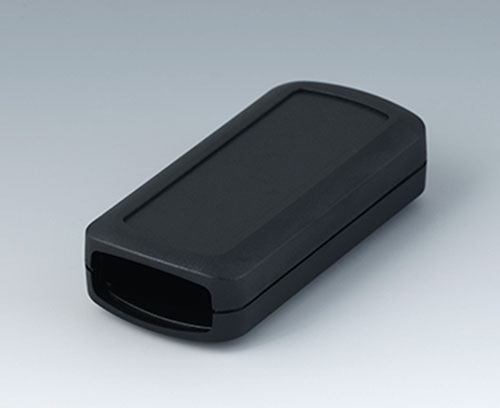

B2823109
CONNECT S
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2823109
CONNECT SProdukt byl přidán do Vašeho košíku.
black RAL 9005
90x42x22mm

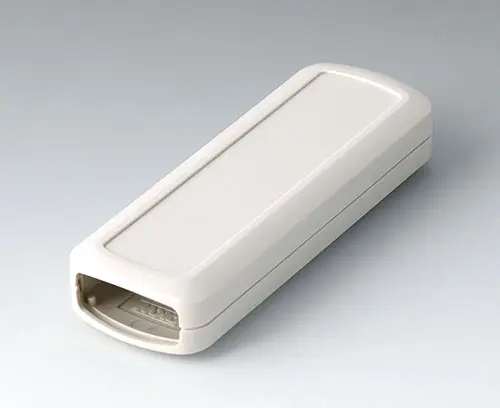

B2824107
CONNECT S
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2824107
CONNECT SProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
120x42x22mm
B2824109
CONNECT S
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2824109
CONNECT SProdukt byl přidán do Vašeho košíku.
black RAL 9005
120x42x22mm

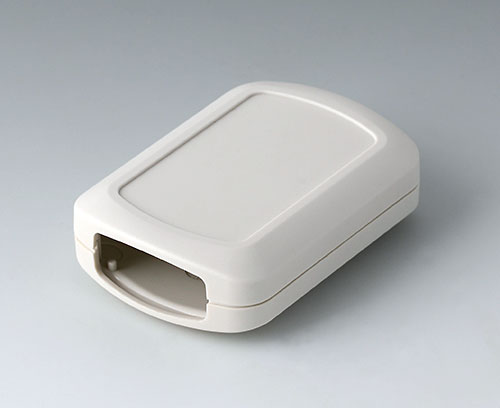

B2832107
CONNECT M
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2832107
CONNECT MProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
76x54x22mm

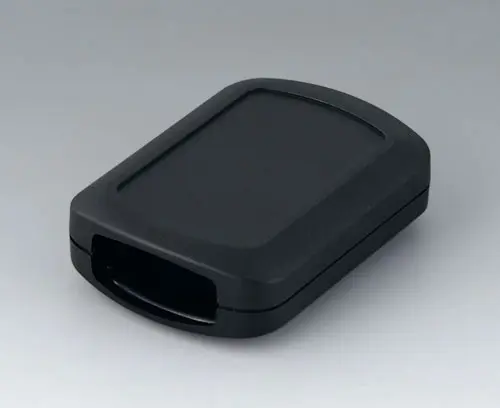

B2832109
CONNECT M
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2832109
CONNECT MProdukt byl přidán do Vašeho košíku.
black RAL 9005
76x54x22mm

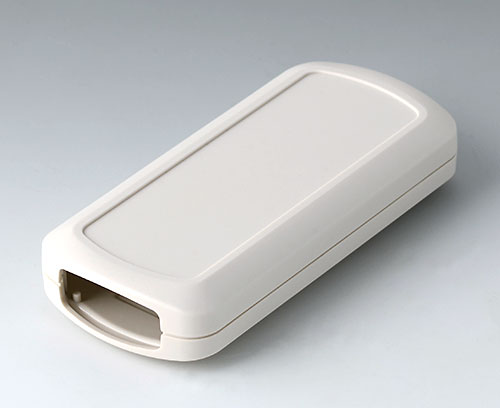

B2833107
CONNECT M
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2833107
CONNECT MProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
116x54x22mm

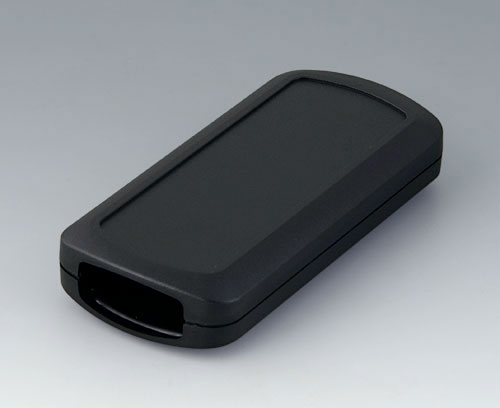

B2833109
CONNECT M
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2833109
CONNECT MProdukt byl přidán do Vašeho košíku.
black RAL 9005
116x54x22mm

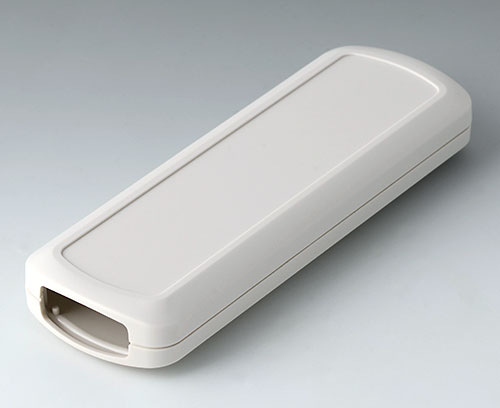

B2834107
CONNECT M
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2834107
CONNECT MProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
156x54x22mm

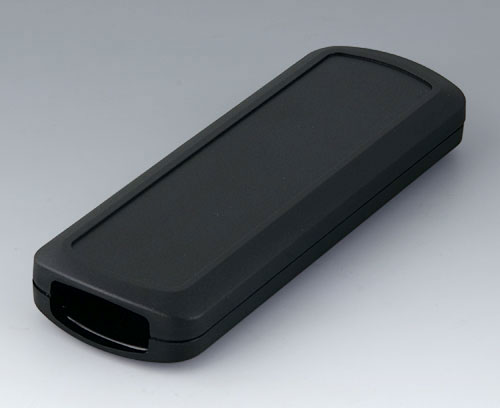

B2834109
CONNECT M
Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply 1 shell convex and 1 flattened shell with recessed surface
B2834109
CONNECT MProdukt byl přidán do Vašeho košíku.
black RAL 9005
156x54x22mm
A0304031

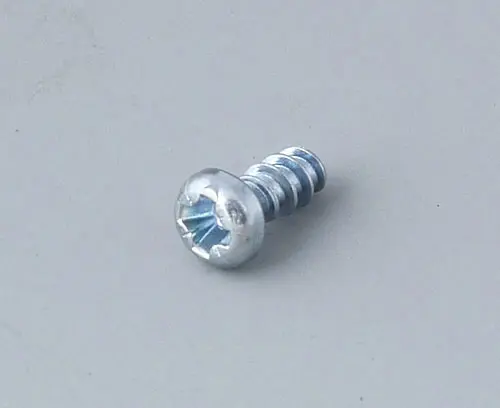

Self-tapping screws 2.2 x 5 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)Produkt byl přidán do Vašeho košíku.
A9167027
Holding clamp
Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply 1 holding clamp, assembly kit
A9167027
Holding clampProdukt byl přidán do Vašeho košíku.
off-white RAL 9002

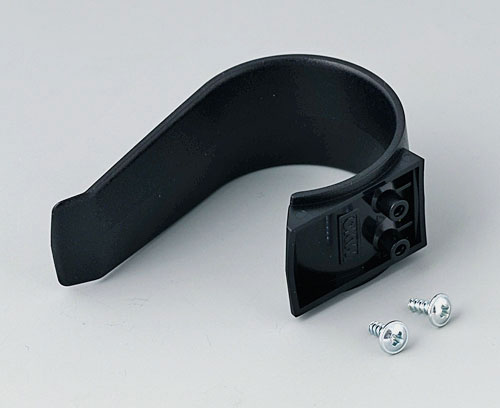

A9167029
Holding clamp
Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply 1 holding clamp, assembly kit
A9167029
Holding clampProdukt byl přidán do Vašeho košíku.
black RAL 9005
B2811207

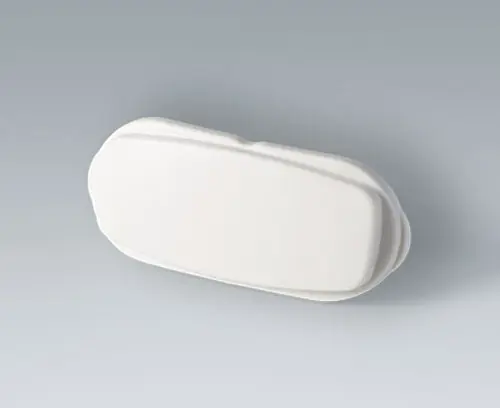

End part
Universal plug-in component.
Supply 1 piece
B2811207
End partProdukt byl přidán do Vašeho košíku.
off-white RAL 9002

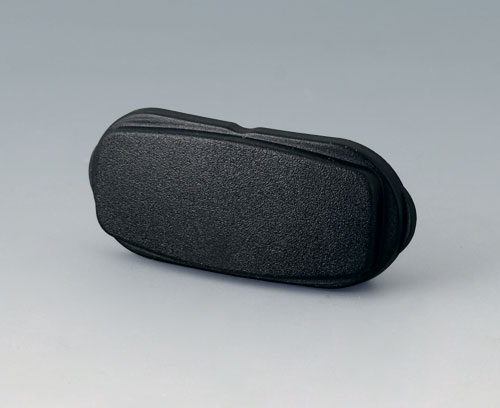

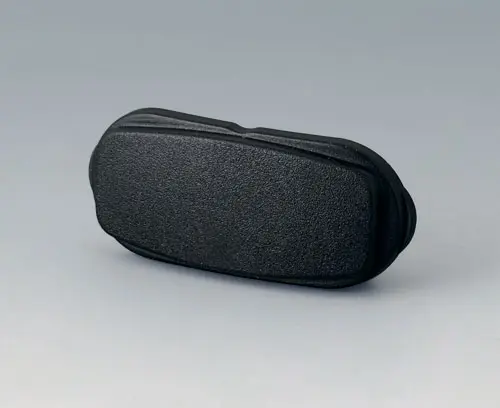

B2811209
End part
Universal plug-in component.
Supply 1 piece
B2811209
End partProdukt byl přidán do Vašeho košíku.
black RAL 9005

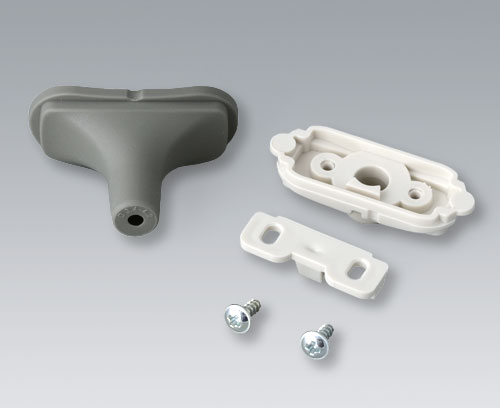

B2911308
Cable gland kit, 3.4 - 4.2
For round cable diameter 3.4 - 4.2 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911308
Cable gland kit, 3.4 - 4.2Produkt byl přidán do Vašeho košíku.
volcano
B2911309
Cable gland kit, 3.4 - 4.2
For round cable diameter 3.4 - 4.2 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911309
Cable gland kit, 3.4 - 4.2Produkt byl přidán do Vašeho košíku.
black RAL 9005

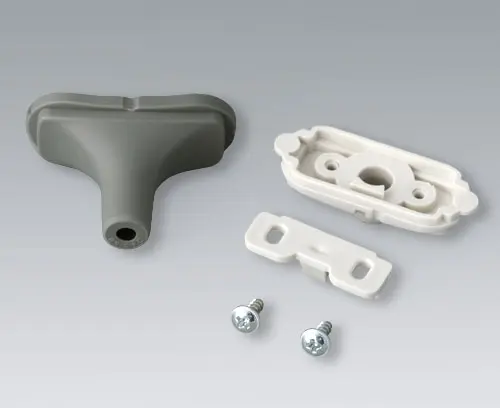

B2911318
Cable gland kit, 4.2 - 5.0
For round cable diameter 4.2 - 5.0 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911318
Cable gland kit, 4.2 - 5.0Produkt byl přidán do Vašeho košíku.
volcano

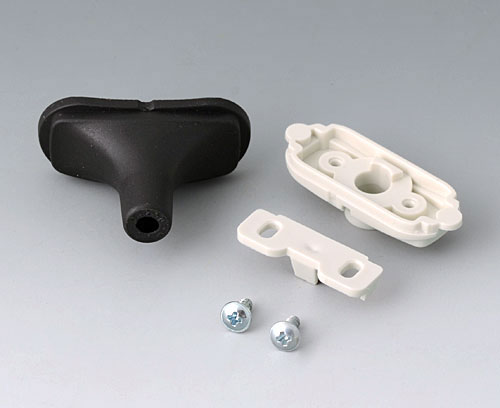

B2911319
Cable gland kit, 4.2 - 5.0
For round cable diameter 4.2 - 5.0 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911319
Cable gland kit, 4.2 - 5.0Produkt byl přidán do Vašeho košíku.
black RAL 9005

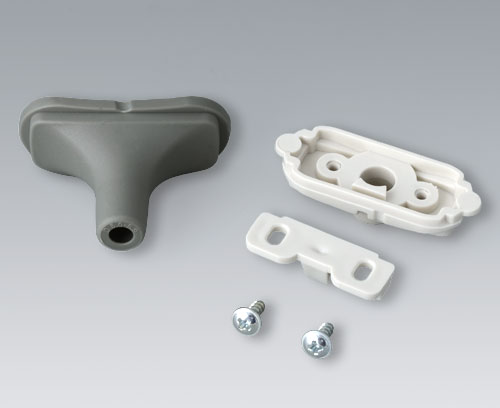

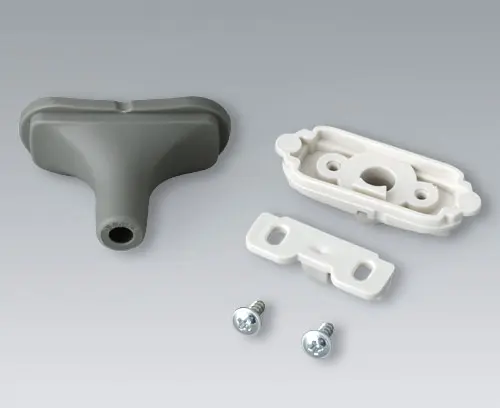

B2911328
Cable gland kit, 5.0 - 5.9
For round cable diameter 5.0 - 5.9 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911328
Cable gland kit, 5.0 - 5.9Produkt byl přidán do Vašeho košíku.
volcano

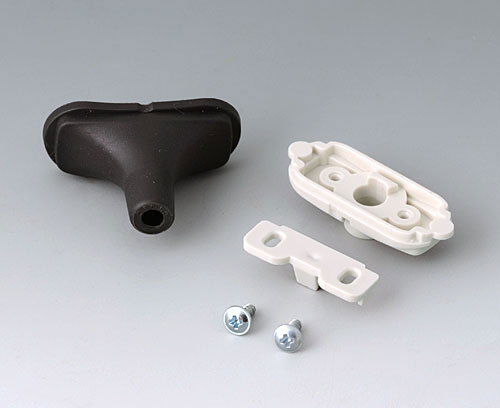

B2911329
Cable gland kit, 5.0 - 5.9
For round cable diameter 5.0 - 5.9 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911329
Cable gland kit, 5.0 - 5.9Produkt byl přidán do Vašeho košíku.
black RAL 9005

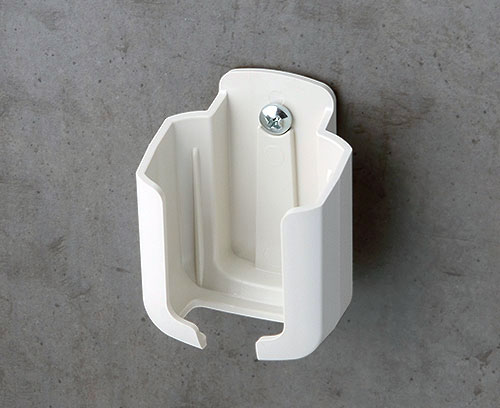

B2921507
Holder S

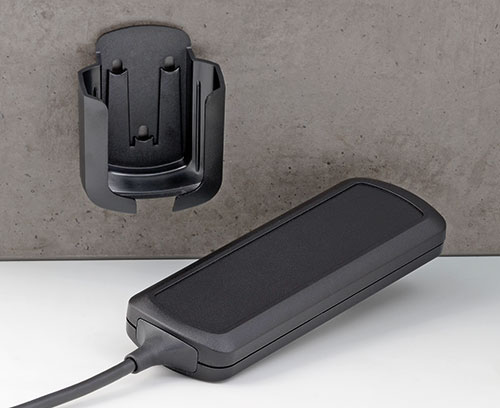

Special holder for CONNECT S for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.
Supply 1 holder
B2921507
Holder SProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
B2921509

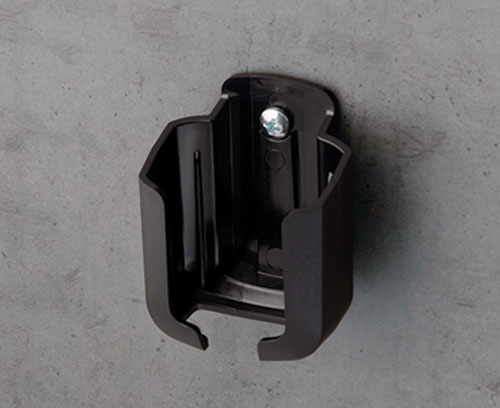

Holder S
Special holder for CONNECT S for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.
Supply 1 holder
B2921509
Holder SProdukt byl přidán do Vašeho košíku.
black RAL 9005
B2931507

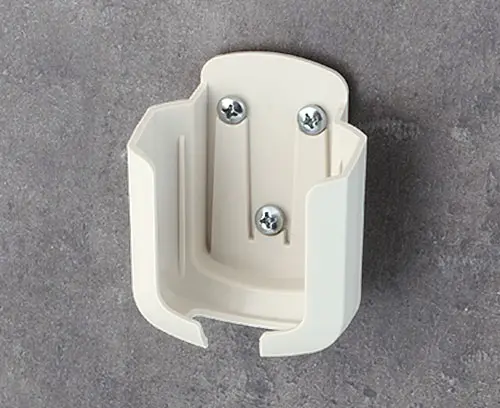

Holder M
Special holder for CONNECT M for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.
Supply 1 holder
B2931507
Holder MProdukt byl přidán do Vašeho košíku.
off-white RAL 9002

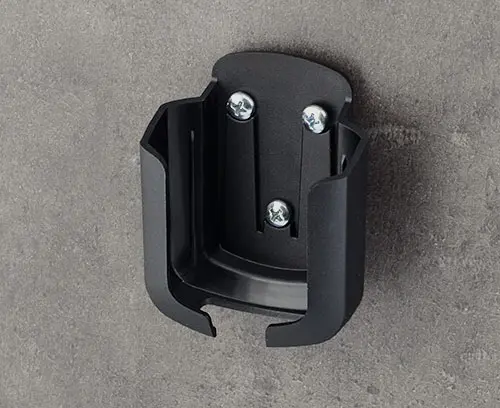

B2931509
Holder M
Special holder for CONNECT M for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.
Supply 1 holder
B2931509
Holder MProdukt byl přidán do Vašeho košíku.
black RAL 9005

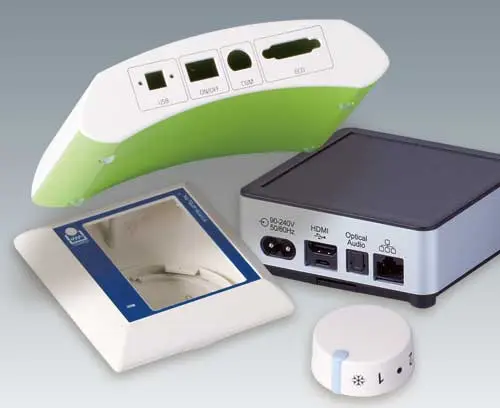

Možnosti přizpůsobení pro Connect

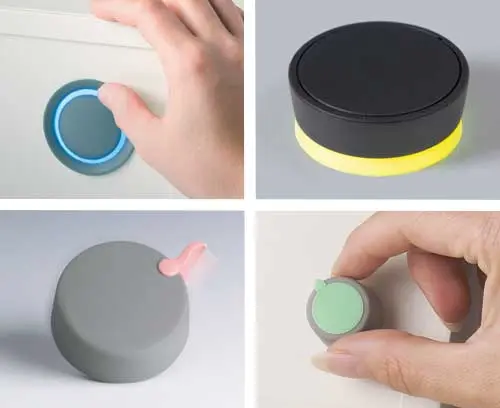

Co ještě potřebujete pro svůj vlastní velmi osobní produkt? Můžeme dodat zapouzdření a ladicí knoflíky se všemi nezbytnými úpravami pro montáž vašich elektronických součástek.
