B2911319 Cable gland kit, 4.2 - 5.0

B2911319

Cable gland kit, 4.2 - 5.0

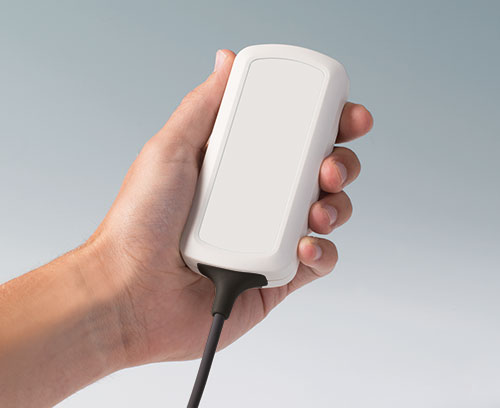

For round cable diameter 4.2 - 5.0 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.

Supply

Elastic cable gland, fixing element, clamping plate, 2 selftapping screws

  • To be used for
B2822107 CONNECT S

B2822107

CONNECT S Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Zavřít

B2822107

CONNECT S
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
off-white RAL 9002
60x42x22mm
B2822109 CONNECT S

B2822109

CONNECT S Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Zavřít

B2822109

CONNECT S
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
black RAL 9005
60x42x22mm
B2823107 CONNECT S

B2823107

CONNECT S Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Zavřít

B2823107

CONNECT S
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
off-white RAL 9002
90x42x22mm
B2823109 CONNECT S

B2823109

CONNECT S Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Zavřít

B2823109

CONNECT S
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
black RAL 9005
90x42x22mm
B2824107 CONNECT S

B2824107

CONNECT S Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Zavřít

B2824107

CONNECT S
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
off-white RAL 9002
120x42x22mm
B2824109 CONNECT S

B2824109

CONNECT S Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Zavřít

B2824109

CONNECT S
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
black RAL 9005
120x42x22mm
B2832107 CONNECT M

B2832107

CONNECT M Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Zavřít

B2832107

CONNECT M
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
off-white RAL 9002
76x54x22mm
B2832109 CONNECT M

B2832109

CONNECT M Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Zavřít

B2832109

CONNECT M
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
black RAL 9005
76x54x22mm
B2833107 CONNECT M

B2833107

CONNECT M Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Zavřít

B2833107

CONNECT M
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
off-white RAL 9002
116x54x22mm
B2833109 CONNECT M

B2833109

CONNECT M Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Zavřít

B2833109

CONNECT M
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
black RAL 9005
116x54x22mm
B2834107 CONNECT M

B2834107

CONNECT M Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Zavřít

B2834107

CONNECT M
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
off-white RAL 9002
156x54x22mm
B2834109 CONNECT M

B2834109

CONNECT M Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Zavřít

B2834109

CONNECT M
Produkt byl přidán do Vašeho košíku.
ASA+PC (UL 94 V-0)
black RAL 9005
156x54x22mm
  • Technická data
  • Kupní data
Materiál
TPE
Cable gland
ASA+PC (UL 94 V-0)
Fasteners
Barva
black RAL 9005
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
4 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
