DIN modulární skříňka
Carrytec
Plastové pouzdro s funkčním madlem

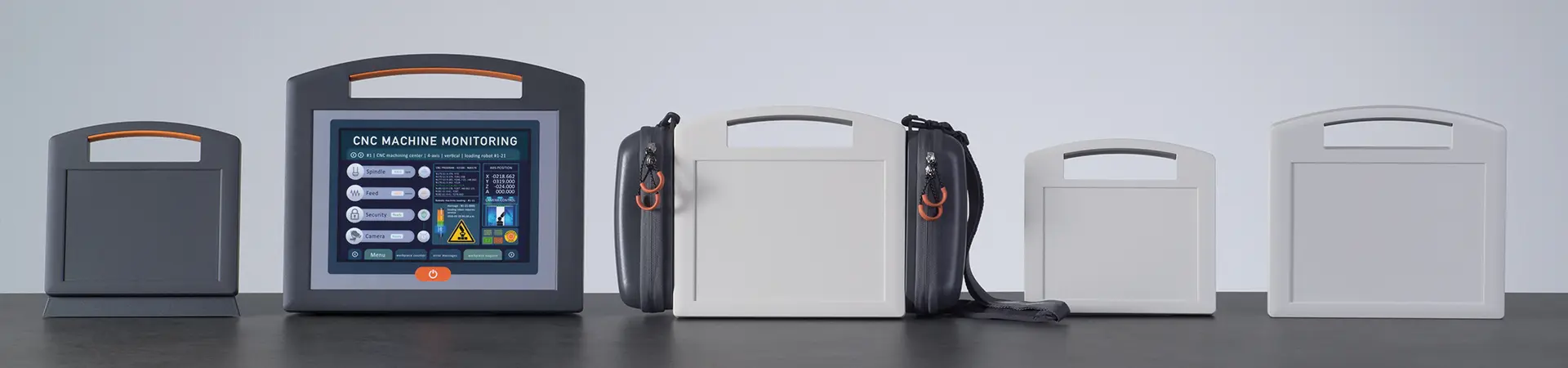

CARRYTEC nabízí funkční rukojeť pro širokou škálu úkolů a situací ve vnitřním i venkovním prostředí.
- Možnost nošení nad těžištěm skříně

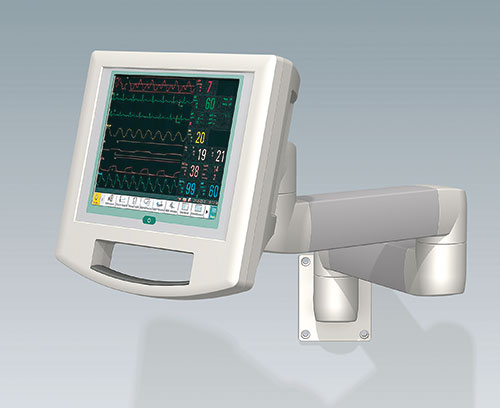

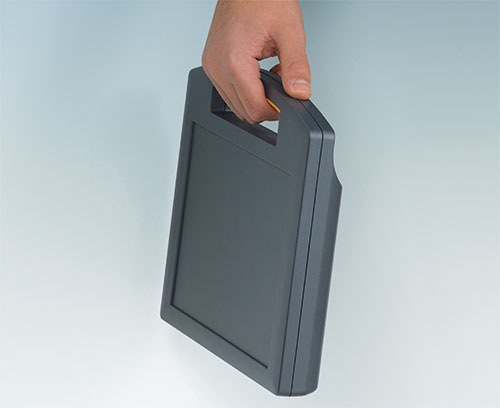

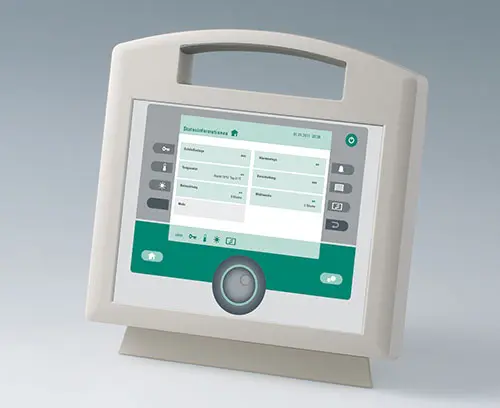

- CARRYTEC M v ploché verzi pro instalaci tabletu ap.
- Zadní montáž na stativ nebo nosný ramenní systém; rychlé polohování / vyrovnání viditelného a obslužného povrchu, čisté vedení kabelů

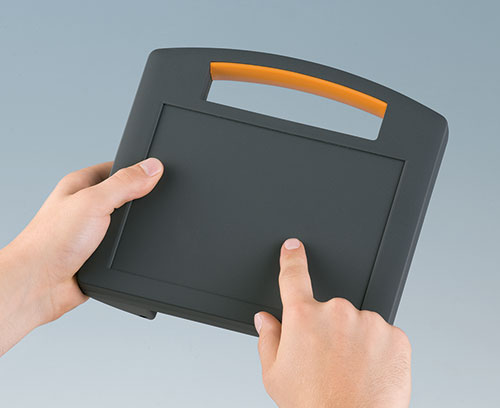

- Obzvláště velký povrch použitelný pro uživatelské rozhraní

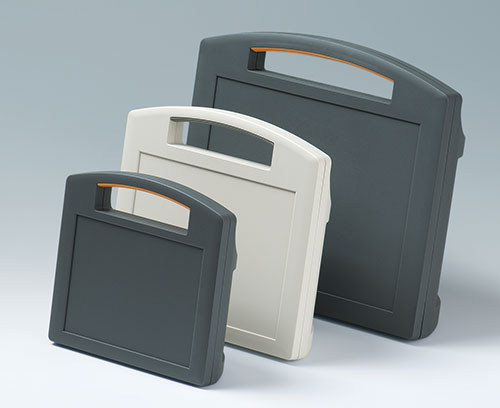

(S: 8,4" / 21 cm, M: 10,4" / 26 cm, L: 13,4" / 34 cm) - Velká zástavbová hloubka a dostatek místa pro rozhraní při tenkém vzhledem

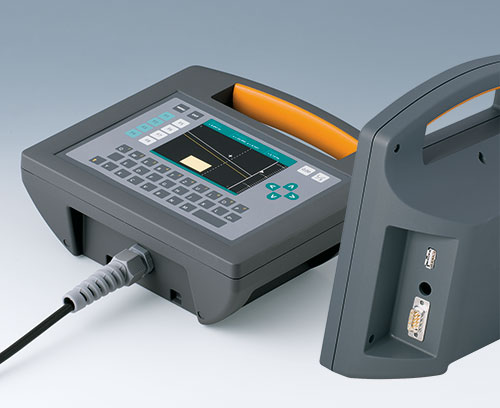

- Chráněná instalace rozhraní

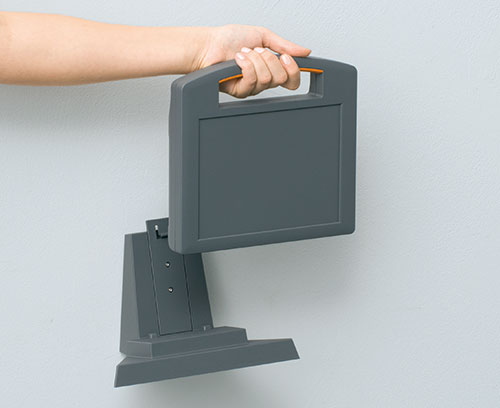

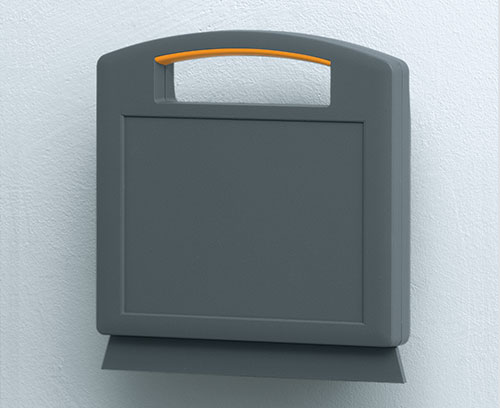

- Bezpečný úložný prostor na stolní konzoli a / nebo na stěnu; jednoduché údaje a nabíjecí proudový přenos; Kontakty jako příslušenství (kromě skříněk)

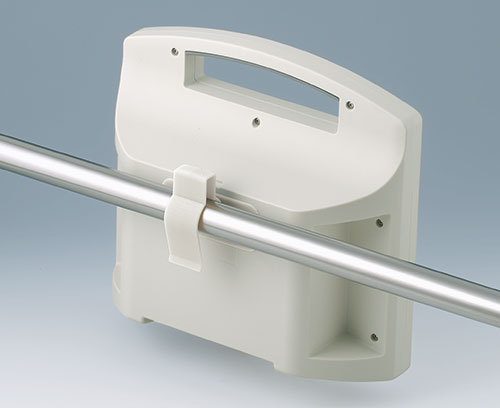

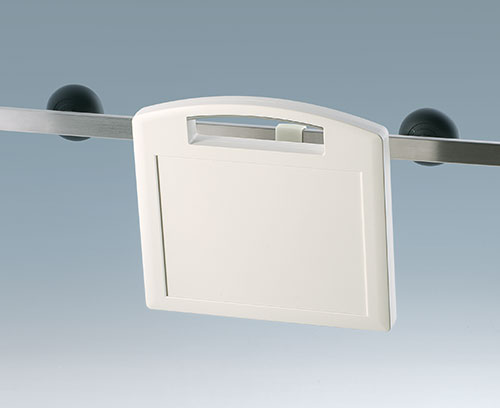

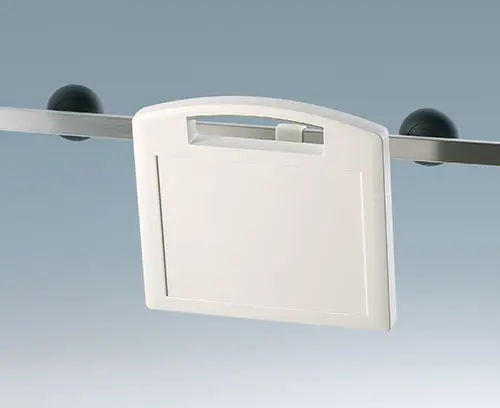

- Upevňovací klip pro zavěšení na kruhové trubky a kolejnice DIN EN ISO 19054
- Pouzdro v nárazuvzdorném plastu odolává těžkému použití
- S ochranou těsnění IP 54 (příslušenství)
- Vestavěný ovládací panel pro ochranu membránové klávesnice
- Pouzdra se snadno čistí
- Volitelný prostor pro baterii 5 x AA (vyžaduje se zpracování)

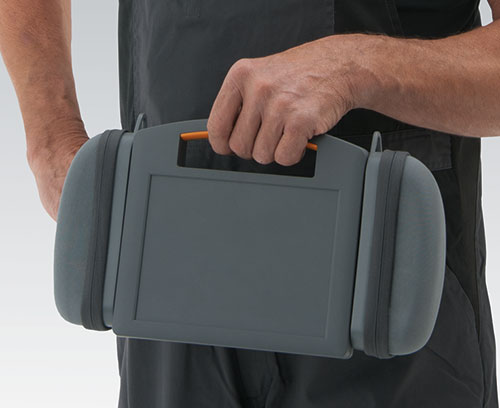

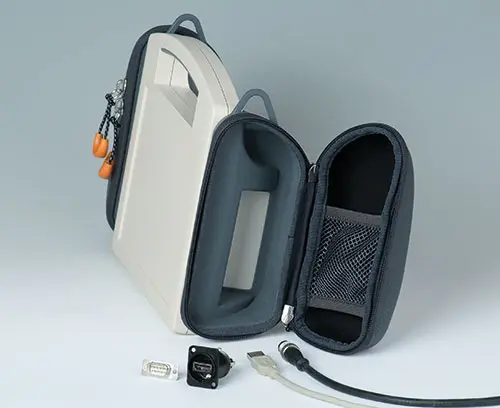

- Ochranné pouzdra pro skladování přístrojů, snímačů, příslušenství atd. (velikosti S a M)

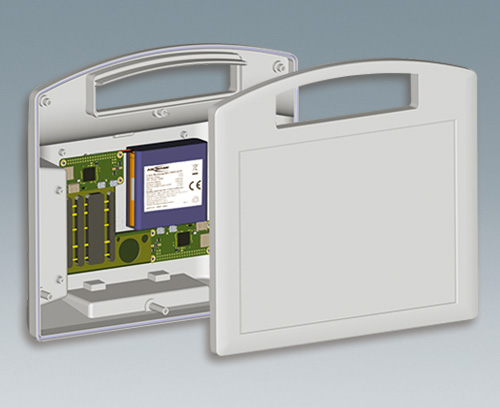

- Upevňovací sloupky pro desky a komponenty
Learn more!
Read our blog posts on carrytec View blog posts >>
Obory aplikací
Univerzální použití: příruční - stůl - stěna - kolejnice - kulatá trubka - stativ - podpěrné rameno. V závislosti na použití (vnitřní / venkovní) jsou skříně k dispozici v různých materiálech, např. v plastu odolném proti nárazu, různých barvách a jejich kombinacích.
B4208107
CARRYTEC S
Robust plastic enclosure with handle. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.
Supply Top and bottom parts, TPE handle pad, assembly kit
B4208107
CARRYTEC SProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
222x205x80mm
B4208208

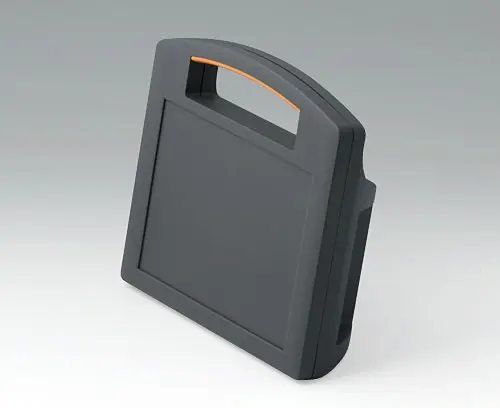

CARRYTEC S
Particularly robust plastic enclosure with handle for outdoor use. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.
Supply Top and bottom parts, TPE handle pad, assembly kit
B4208208
CARRYTEC SProdukt byl přidán do Vašeho košíku.
lava
222x205x80mm
B4210107
CARRYTEC M
Robust plastic enclosure with handle. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.
Supply Top and bottom parts, TPE handle pad, assembly kit
B4210107
CARRYTEC MProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
270x247x91mm
B4210127

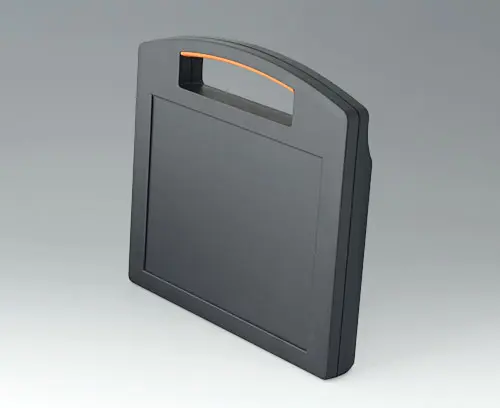

CARRYTEC M slim version
Strong plastic enclosure with handle, slim version. Ideal for the installation of tablet computers and the like, which have modest space requirements and can be carried comfortably and securely in the Carrytec.
The top part is identical with that of the larger enclosure versions; only the bottom part is flatter.
Top part with recessed surface for using membrane keyboards. Attachment domes for PCBs and components in the top and bottom parts. Interface installation at the rear, for example for support arm applications, ensures orderly cable routing through enclosure connection.
The top part is identical with that of the larger enclosure versions; only the bottom part is flatter.
Top part with recessed surface for using membrane keyboards. Attachment domes for PCBs and components in the top and bottom parts. Interface installation at the rear, for example for support arm applications, ensures orderly cable routing through enclosure connection.
Supply Top and bottom parts, TPE handle pad, assembly kit
B4210127
CARRYTEC M slim versionProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
270x247x42mm
B4210208

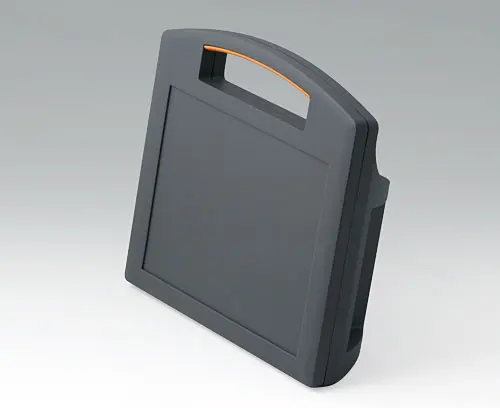

CARRYTEC M
Particularly robust plastic enclosure with handle for outdoor use. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.
Supply Top and bottom parts, TPE handle pad, assembly kit
B4210208
CARRYTEC MProdukt byl přidán do Vašeho košíku.
lava
270x247x91mm
B4210228
CARRYTEC M slim version
Strong plastic enclosure with handle, slim version. Ideal for the installation of tablet computers and the like, which have modest space requirements and can be carried comfortably and securely in the Carrytec.
The top part is identical with that of the larger enclosure versions; only the bottom part is flatter.
Top part with recessed surface for using membrane keyboards. Attachment domes for PCBs and components in the top and bottom parts. Interface installation at the rear, for example for support arm applications, ensures orderly cable routing through enclosure connection.
The top part is identical with that of the larger enclosure versions; only the bottom part is flatter.
Top part with recessed surface for using membrane keyboards. Attachment domes for PCBs and components in the top and bottom parts. Interface installation at the rear, for example for support arm applications, ensures orderly cable routing through enclosure connection.
Supply Top and bottom parts, TPE handle pad, assembly kit
B4210228
CARRYTEC M slim versionProdukt byl přidán do Vašeho košíku.
lava
270x247x42mm
B4213107
CARRYTEC L
Robust plastic enclosure with handle. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection, mounting points match the hole patterns of VESA MIS-D 100. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.
Supply Top and bottom parts, TPE handle pad, assembly kit
B4213107
CARRYTEC LProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
348x303x117mm
B4213208

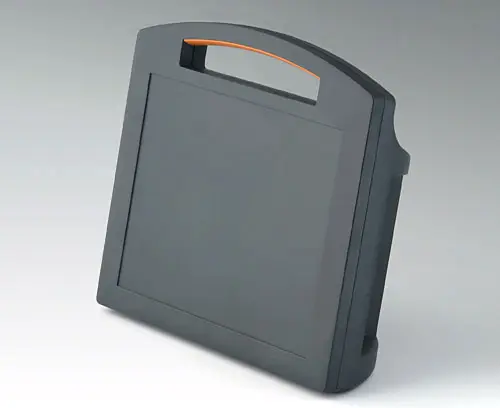

CARRYTEC L
Particularly robust plastic enclosure with handle for outdoor use. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection, mounting points match the hole patterns of VESA MIS-D 100. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.
Supply Top and bottom parts, TPE handle pad, assembly kit
B4213208
CARRYTEC LProdukt byl přidán do Vašeho košíku.
lava
348x303x117mm
A0325080

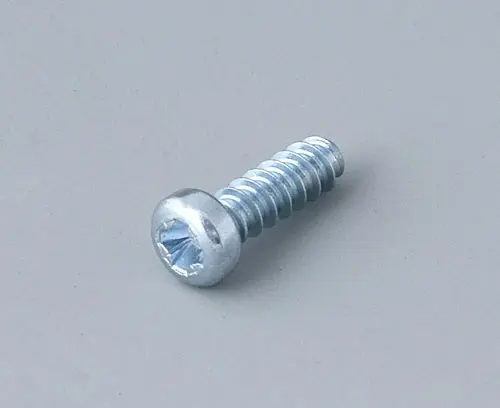

Self-tapping screws 2.5 x 8 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0325080
Self-tapping screws 2.5 x 8 mm (PZ1)Produkt byl přidán do Vašeho košíku.
A9178007
Contacts, male

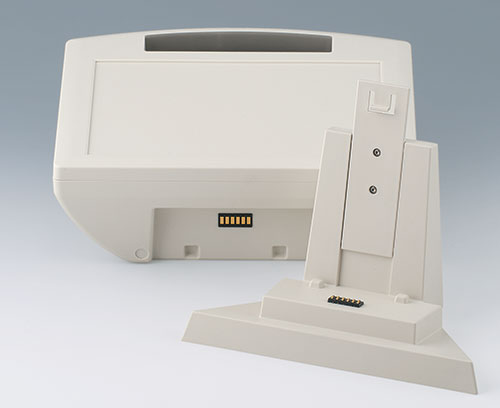

Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply 1 contact
A9178007
Contacts, maleProdukt byl přidán do Vašeho košíku.
A9178008
Contacts, female
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply 1 contact
A9178008
Contacts, femaleProdukt byl přidán do Vašeho košíku.

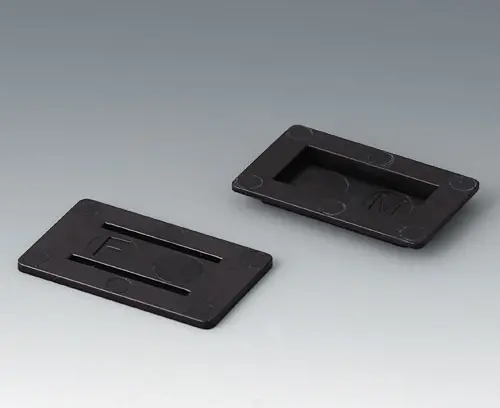

A9193042
Mounting plates for contacts
Universal accessories that simplify the assembly of contacts for transferring data and charging current between enclosures and stations. Available as a kit consisting of two plastic mounting plates for holding the 6-pin contacts which are available as accessories ("female" contact for the enclosure and "male" contact for the station).
For installation, cutouts into which the mounting plates can be glued must be made in the enclosure and in the station. The mounting plates can be installed first in the enclosure and station, and the contacts (accessories) at a later point in time.
For installation, cutouts into which the mounting plates can be glued must be made in the enclosure and in the station. The mounting plates can be installed first in the enclosure and station, and the contacts (accessories) at a later point in time.
Supply 2 mounting plates
A9193042
Mounting plates for contactsProdukt byl přidán do Vašeho košíku.
black RAL 9005
A9193044

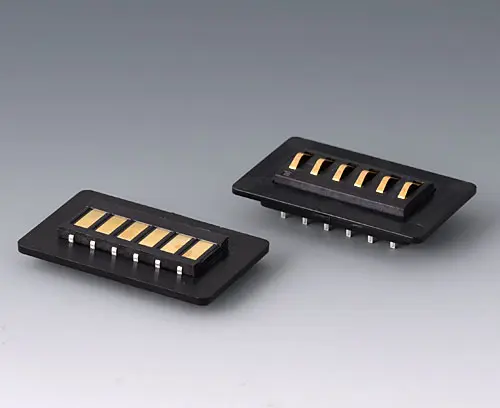

Contacting kit, 6-pin
Universal accessory consisting of mounting plates and 6-pin contacts. Simplifies the assembly of contacts for transferring data and charging current between enclosures and stations. The "female" and "male" contacts are already permanently glued in the corresponding mounting plate. The contact pins are freely accessible for soldering work.
For installation, cutouts into which the mounting plates can be glued must be made in the enclosure and in the station ("female" contact for the enclosure and "male" contact for the station).
For installation, cutouts into which the mounting plates can be glued must be made in the enclosure and in the station ("female" contact for the enclosure and "male" contact for the station).
Supply 2 mounting plates, 2 6-pin contacts ("female" and "male")
A9193044
Contacting kit, 6-pinProdukt byl přidán do Vašeho košíku.
black RAL 9005

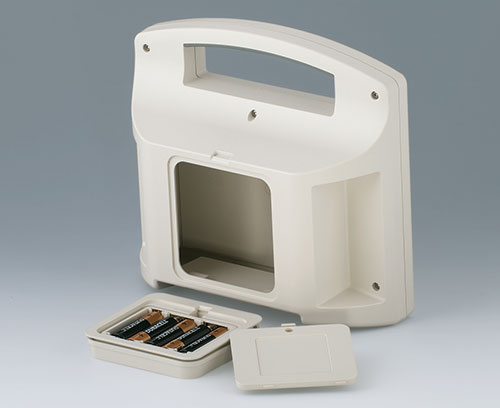

A9338117

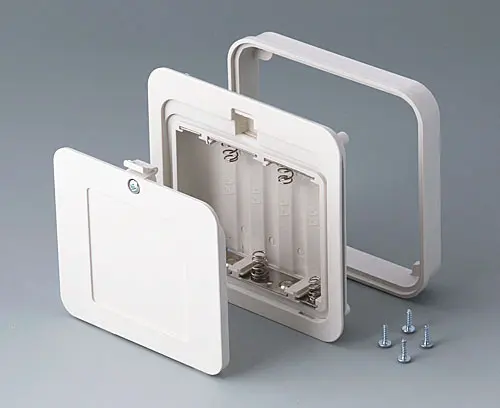

Battery compartment kit, 5 x AA
For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.
Supply 1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws
A9338117
Battery compartment kit, 5 x AAProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
93x98mm

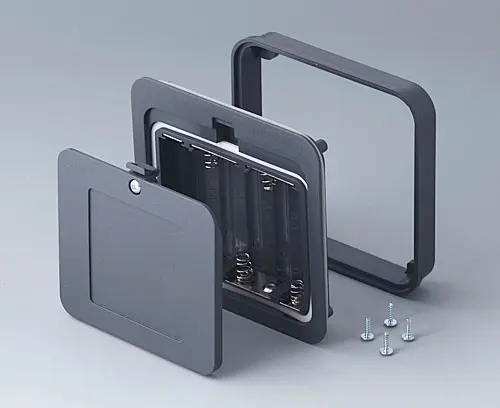

A9338218
Battery compartment kit, 5 x AA
For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.
Supply 1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws
A9338218
Battery compartment kit, 5 x AAProdukt byl přidán do Vašeho košíku.
lava
93x98mm

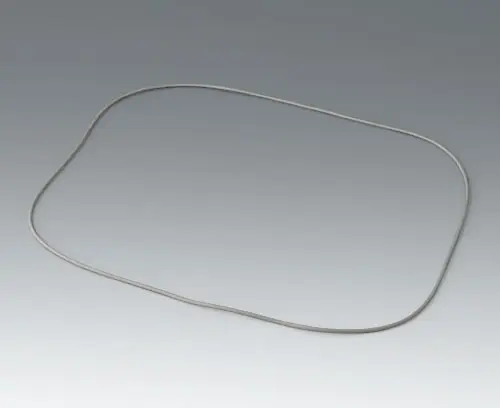

B4308001
Sealing S
Application: for increasing the protection class, of CARRYTEC S. Bottom part with groove to assemble the sealing.
Supply 1 sealing
B4308001
Sealing SProdukt byl přidán do Vašeho košíku.

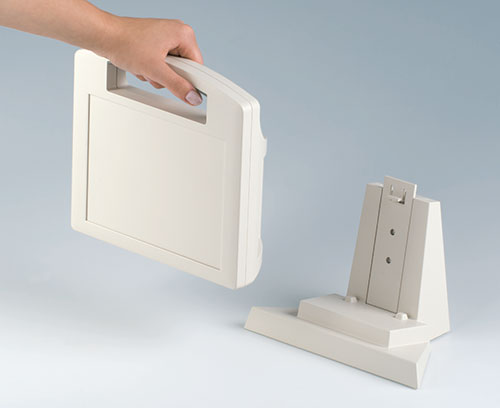

B4308117

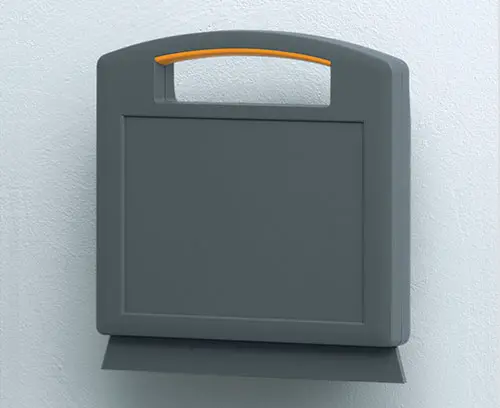

Station S/M

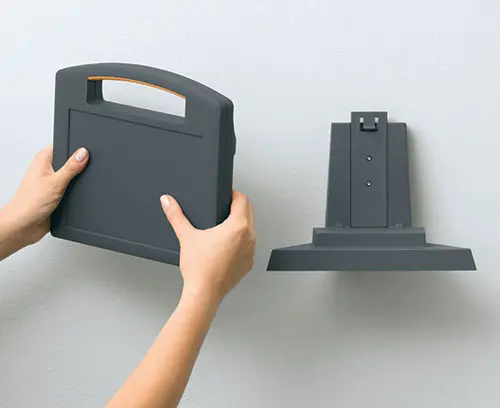

For secure storage of the enclosure. Can be used on table stand and/or wall suspension element. Available with or without base plate (accessory). The enclosure snaps securely into the station. It can be removed easily by pulling the handle. Offers room for charging and data transfer contacts (accessories), interfaces etc.
Supply 1 base, assembly kit
B4308117
Station S/MProdukt byl přidán do Vašeho košíku.
off-white RAL 9002

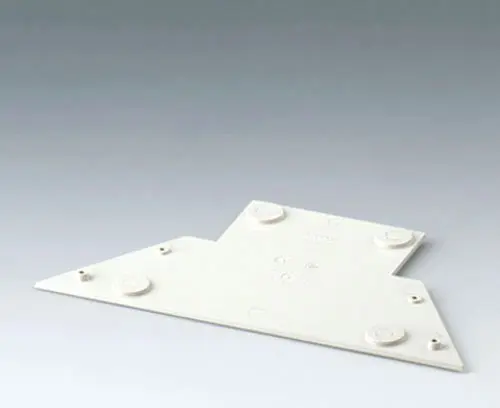

B4308127
Base plate for station
Recommended for table-top applications. The rubber feet included in the supply ensure that the table-top version does not slip.
Supply 1 base plate, 4 rubber feet, assembly kit
B4308127
Base plate for stationProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
B4308218
Station S/M
For secure storage of the enclosure. Can be used on table stand and/or wall suspension element. Available with or without base plate (accessory). The enclosure snaps securely into the station. It can be removed easily by pulling the handle. Offers room for charging and data transfer contacts (accessories), interfaces etc.
Supply 1 base, assembly kit
B4308218
Station S/MProdukt byl přidán do Vašeho košíku.
lava

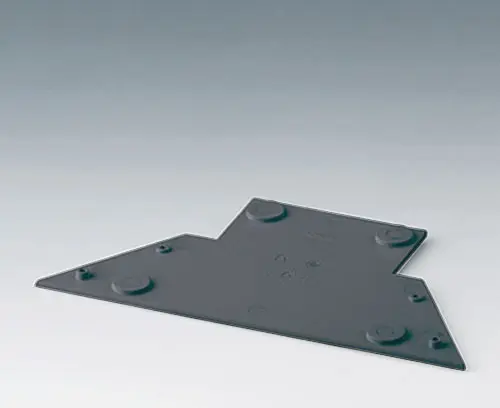

B4308228
Base plate for station
Recommended for table-top applications. The rubber feet included in the supply ensure that the table-top version does not slip.
Supply 1 base plate, 4 rubber feet, assembly kit
B4308228
Base plate for stationProdukt byl přidán do Vašeho košíku.
lava
B4308237
Holding clamps
For hanging the enclosure from round tubes Ø 32 mm and standard equipment rails DIN EN ISO 19054 (25 x 10 mm). 2 locating holes Ø 2.4 mm are required. For attachment, 2 stainless steel Torx screws Ø 3 x 8 mm (Torx 10) are included in the set.
Supply 1 holding clamp, assembly kit
B4308237
Holding clampsProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
B4308238
Holding clamps
For hanging the enclosure from round tubes Ø 32 mm and standard equipment rails DIN EN ISO 19054 (25 x 10 mm). 2 locating holes Ø 2.4 mm are required. For attachment, 2 stainless steel Torx screws Ø 3 x 8 mm (Torx 10) are included in the set.
Supply 1 holding clamp, assembly kit
B4308238
Holding clampsProdukt byl přidán do Vašeho košíku.
lava

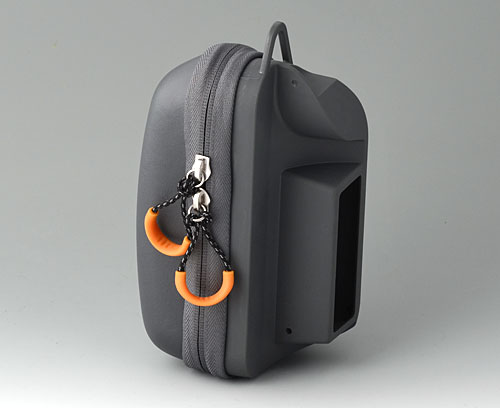

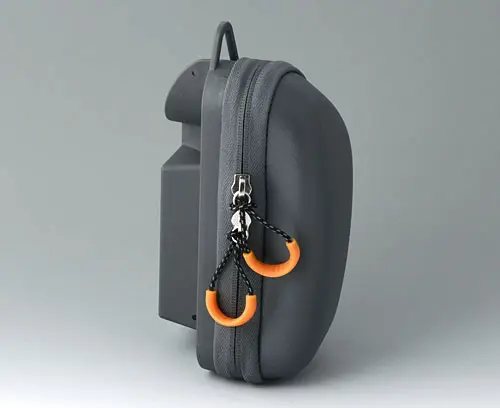

B4308600
Carrying case S, right-hand side
Specially designed for CARRYTEC S. Protects enclosure, cables and sensors. Consists of a moulded plastic part and hard-wearing textile fabric, with a practical zip fastener for fast access. Integrated recesses in the sides of the enclosure for connecting instruments, which are then ready for immediate use. Easy to attach to the screwed connection in the enclosure. Eyelet on the top for carrying with the shoulder strap (separate article, see Accessories).
Version Right-hand side.
Supply 1 carrying case, left-hand side, assembly kit
B4308600
Carrying case S, right-hand sideProdukt byl přidán do Vašeho košíku.
82x180x65mm
B4308610
Carrying case S, left-hand side
Specially designed for CARRYTEC S. Protects enclosure, cables and sensors. Consists of a moulded plastic part and hard-wearing textile fabric, with a practical zip fastener for fast access. Integrated recesses in the sides of the enclosure for connecting instruments, which are then ready for immediate use. Easy to attach to the screwed connection in the enclosure. Eyelet on the top for carrying with the shoulder strap (separate article, see Accessories).
Version Left-hand side.
Supply 1 carrying case, left-hand side, assembly kit
B4308610
Carrying case S, left-hand sideProdukt byl přidán do Vašeho košíku.
82x180x65mm
B4308650
Shoulder strap
Practical shoulder strap with shoulder padding.
Mounting on CARRYTEC enclosures only in conjunction with left and right Carrying cases.
Mounting on CARRYTEC enclosures only in conjunction with left and right Carrying cases.
Supply 1 shoulder strap
B4308650
Shoulder strapProdukt byl přidán do Vašeho košíku.
1400mm
B4310001

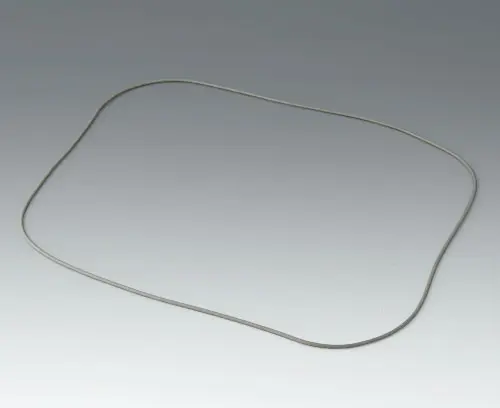

Sealing M
Application: for increasing the protection class, of CARRYTEC M.
Supply 1 sealing
B4310001
Sealing MProdukt byl přidán do Vašeho košíku.
B4310600
Carrying case M, right-hand side
Specially designed for CARRYTEC M. Protects enclosure, cables and sensors. Consists of a moulded plastic part and hard-wearing textile fabric, with a practical zip fastener for fast access. Integrated recesses in the sides of the enclosure for connecting instruments, which are then ready for immediate use. Easy to attach to the screwed connection in the enclosure. Eyelet on the top for carrying with the shoulder strap (separate article, see Accessories).
Version Right-hand side.
Supply 1 carrying case, left-hand side, assembly kit
B4310600
Carrying case M, right-hand sideProdukt byl přidán do Vašeho košíku.
99x214x64mm
B4310610

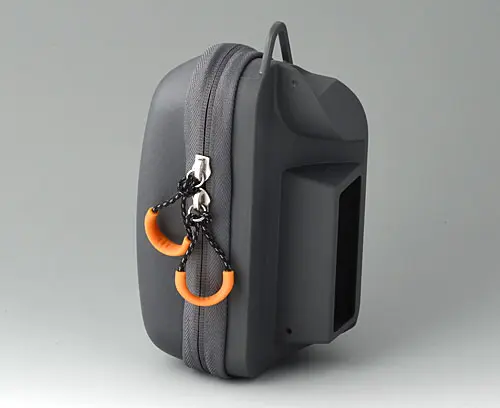

Carrying case M, left-hand side
Specially designed for CARRYTEC M. Protects enclosure, cables and sensors. Consists of a moulded plastic part and hard-wearing textile fabric, with a practical zip fastener for fast access. Integrated recesses in the sides of the enclosure for connecting instruments, which are then ready for immediate use. Easy to attach to the screwed connection in the enclosure. Eyelet on the top for carrying with the shoulder strap (separate article, see Accessories).
Version Left-hand side.
Supply 1 carrying case, left-hand side, assembly kit
B4310610
Carrying case M, left-hand sideProdukt byl přidán do Vašeho košíku.
99x214x64mm
B4313001

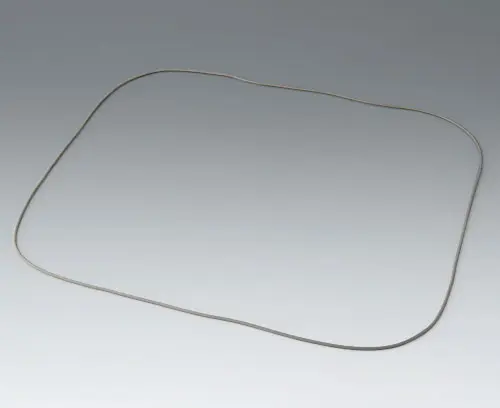

Sealing L
Application: for increasing the protection class, of CARRYTEC L.
Supply 1 sealing
B4313001
Sealing LProdukt byl přidán do Vašeho košíku.
B4313117

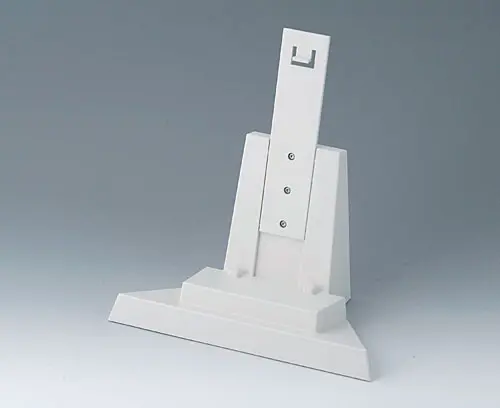

Station L
For secure storage of the enclosure. Can be used on table stand or as wall suspension element. By using it as a wall suspension element the adapter (accessories) is needed. Available with or without base plate (accessory). The enclosure snaps securely into the station. It can be removed easily by pulling the handle. Offers room for charging and data transfer contacts (accessories), interfaces etc.
Supply 1 base, assembly kit
B4313117
Station LProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
B4313147

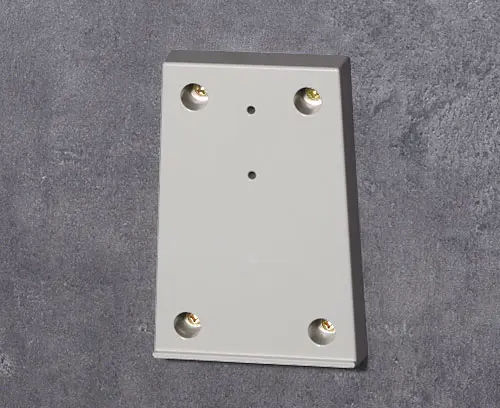

Adapter for Station L
Adapter for mounting Station L on a wall. Supplied with two self-tapping screws for attaching Station L.
Supply 1 adapter and 2 self-tapping screws
B4313147
Adapter for Station LProdukt byl přidán do Vašeho košíku.
off-white RAL 9002

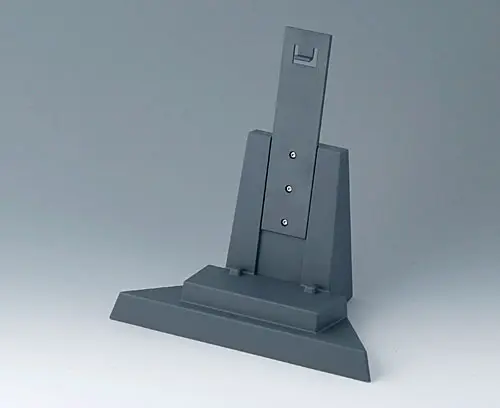

B4313218
Station L
For secure storage of the enclosure. Can be used on table stand or as wall suspension element. By using it as a wall suspension element the adapter (accessories) is needed. Available with or without base plate (accessory). The enclosure snaps securely into the station. It can be removed easily by pulling the handle. Offers room for charging and data transfer contacts (accessories), interfaces etc.
Supply 1 base, assembly kit
B4313218
Station LProdukt byl přidán do Vašeho košíku.
lava

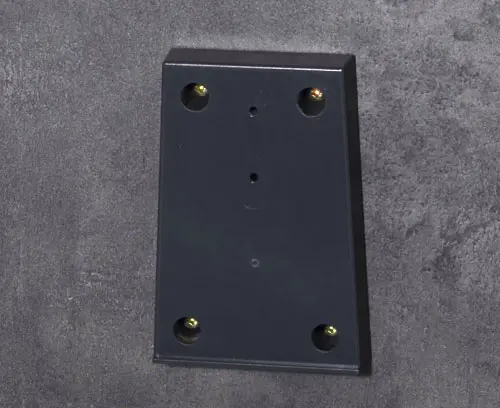

B4313248
Adapter for Station L
Adapter for mounting Station L on a wall. Supplied with two self-tapping screws for attaching Station L.
Supply 1 adapter and 2 self-tapping screws
B4313248
Adapter for Station LProdukt byl přidán do Vašeho košíku.
lava
Možnosti přizpůsobení pro Carrytec
Co ještě potřebujete pro svůj vlastní velmi osobní produkt? Můžeme dodat zapouzdření a ladicí knoflíky se všemi nezbytnými úpravami pro montáž vašich elektronických součástek.
