B4210127

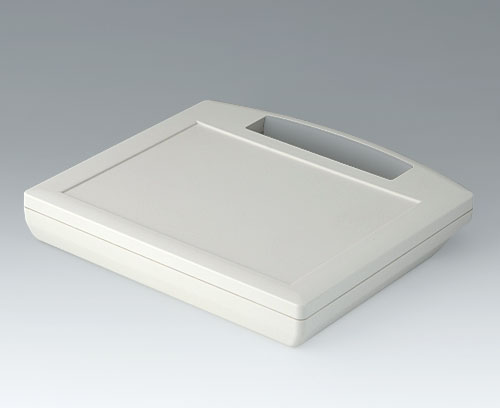

CARRYTEC M slim version
Strong plastic enclosure with handle, slim version. Ideal for the installation of tablet computers and the like, which have modest space requirements and can be carried comfortably and securely in the Carrytec.
The top part is identical with that of the larger enclosure versions; only the bottom part is flatter.

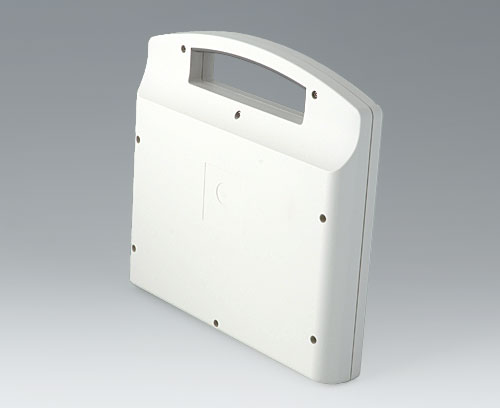

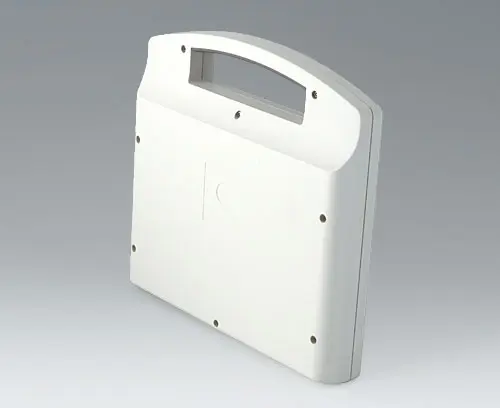

Top part with recessed surface for using membrane keyboards. Attachment domes for PCBs and components in the top and bottom parts. Interface installation at the rear, for example for support arm applications, ensures orderly cable routing through enclosure connection.
Top and bottom parts, TPE handle pad, assembly kit
2D PDF Zobrazení
3D PDF Zobrazení
3D/2D ke stažení
3D/2D ke stažení
Generovat PDF pro B4210127
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
Přidat do košíku
Accessory "protection"
B4310001
Sealing M
Application: for increasing the protection class, of CARRYTEC M.
Supply 1 sealing
B4310001
Sealing MProdukt byl přidán do Vašeho košíku.
Accessory "wall/holder"
B4308237
Holding clamps
For hanging the enclosure from round tubes Ø 32 mm and standard equipment rails DIN EN ISO 19054 (25 x 10 mm). 2 locating holes Ø 2.4 mm are required. For attachment, 2 stainless steel Torx screws Ø 3 x 8 mm (Torx 10) are included in the set.
Supply 1 holding clamp, assembly kit
B4308237
Holding clampsProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
Accessory "screws"
A0325080
Self-tapping screws 2.5 x 8 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0325080
Self-tapping screws 2.5 x 8 mm (PZ1)Produkt byl přidán do Vašeho košíku.
Customising options for B4210127
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technická data
-
Nákresy / Info
- Kupní data
Materiál
Enclosure
Handle pad
Třída produktu
Necessary accessories: sealing kit
Barva
Enclosure
off-white RAL 9002,
Handle pad volcano
Handle pad volcano
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Šířka
270 mm
Výška
247 mm
Hloubka
42 mm
PCB length, base
258 mm
PCB width, base
176 mm
PCB length, top
259 mm
PCB width, top
184 mm
Keypad length
219,5 mm
Keypad width
162,5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 350 KB
- AutoCAD DWG-File 796 KB
- AutoCAD DXF-File 3 080 KB
- 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 3 068 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00017458.x_t 6 301 KB
- 00017458.step 13 031 KB
- 00017458.sat 13 879 KB
Weight/1 part
538 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
