DIN modulární skříňka
A9007207
DATEC-COMPACT L

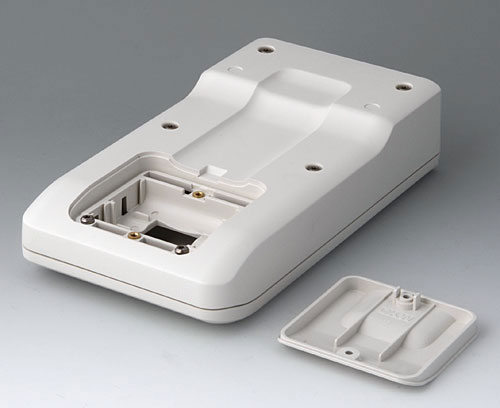

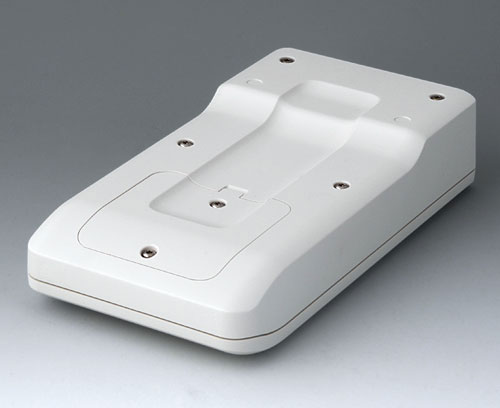

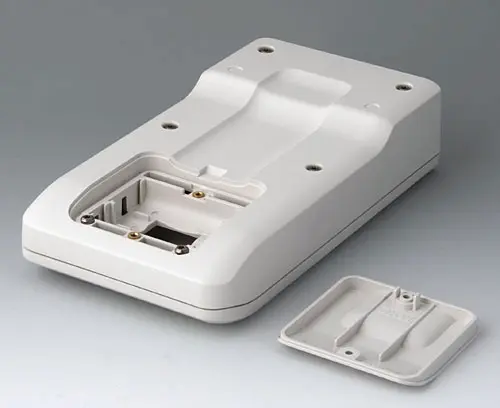

3-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.
VersionWith battery compartment 3 x AA
SupplyTop and bottom part, battery compartment lid, assembly kit
Generovat PDF pro A9007207
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
Accessory "battery"
A9190023
Supply 2 double contacts right, 1 single contact positive, 1 single contact negative
A9190023
Set of battery clips, 3 x AAnickel-plated
Accessory "station"
A9107507

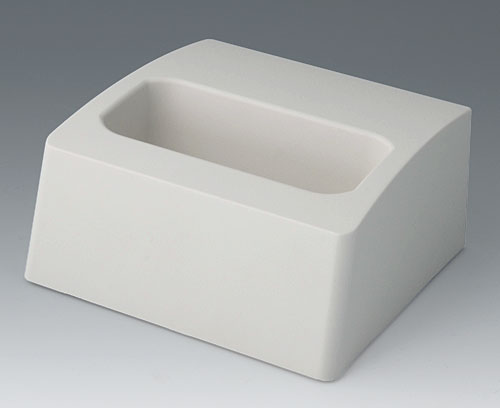

Domes for mounting PCBs and components. Recesses for spring contacts (accessories).
Supply Station with bottom panel, rubber feet, assembly kit
A9107507
Station Loff-white RAL 9002
A9193031
Supply 1 spring contact
A9193031
Spring contactAccessory "wall/holder"
A9107627
Supply 1 holder
A9107627
Holder Loff-white RAL 9002
Accessory "screws"
A0305031
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
A0325060
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)Accessory
A9193030

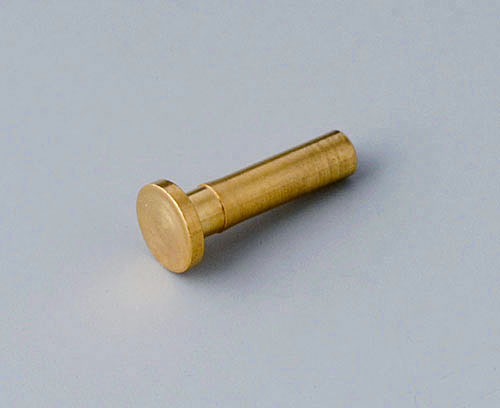

Supply 1 contact pin
A9193030
Contact pin
A9207150
Supply 2 rubber feet
A9207150
Anti-slide feet 6.5 x 2 mmDrawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 345 KB
- AutoCAD DWG-File 807 KB
- AutoCAD DXF-File 3 058 KB
- 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 889 KB
