B1370029 Wall suspension element for Toptec 194
Scroll

B1370029

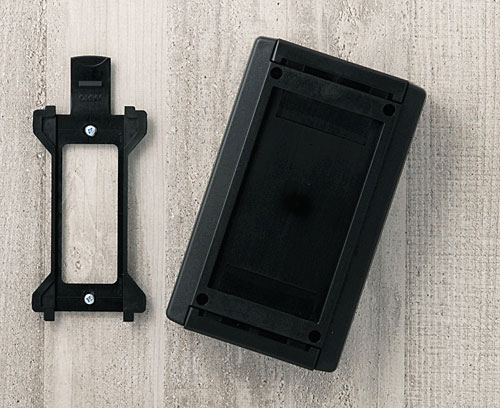

Wall suspension element for Toptec 194

Makes hidden wall mounting possible. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply

1 wall suspension element

2D PDF 视图
3D/2D 图纸资料下载 制作 PDF 数据表

请制作 PDF 数据表用于 B1370029

请选择产品信息以输入数据表。

关闭
添加到购物车内 添加到购物车内 添加到购物车内
产品已添加到关注清单中
继续查询或 开启您的购物车
  • 应用于
  • 按客户要求修改加工
B1070369 TOPTEC 194 H, Vers. I

B1070369

TOPTEC 194 H, Vers. I Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version Without ventilations slots

Supply 1 case-top and base, 2 end panels

关闭

B1070369

TOPTEC 194 H, Vers. I
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005
194x115x68mm
IP 40
B1070469 TOPTEC 194 H, Vers. II

B1070469

TOPTEC 194 H, Vers. II Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version With ventilations slots

Supply 1 case-top and base, 2 end panels

关闭

B1070469

TOPTEC 194 H, Vers. II
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005
194x115x68mm
IP 40
B1075369 TOPTEC 194 F, Vers. I

B1075369

TOPTEC 194 F, Vers. I Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version Without ventilations slots

Supply 1 case-top and base, 2 end panels

关闭

B1075369

TOPTEC 194 F, Vers. I
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005
194x115x46mm
IP 40
B1075469 TOPTEC 194 F, Vers. II

B1075469

TOPTEC 194 F, Vers. II Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version With ventilations slots

Supply 1 case-top and base, 2 end panels

关闭

B1075469

TOPTEC 194 F, Vers. II
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005
194x115x46mm
IP 40

Customising options for B1370029

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
材料
ABS (UL 94 HB)
颜色
black RAL 9005
标准根据
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
18 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany

特制机盒:我们可根据您的需求，对我们的机盒和旋钮进行精加工和精款加工。您将得到一个精工完毕可直接安装的机盒，仅需添入电子元件即可使用。 您可以在此处找到以下产品类型款式 B1370029请务必索取报价！
