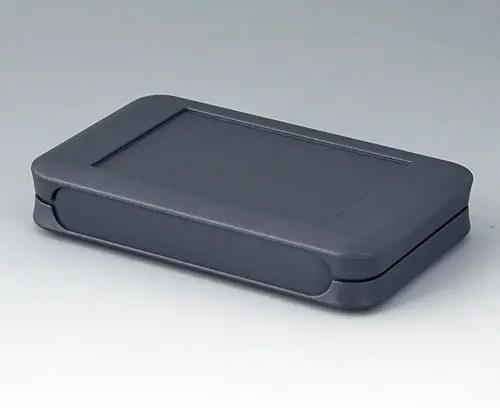

A9051108 SOFT-CASE M

A9051108

SOFT-CASE M

Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.

Version

Without battery compartment

Supply

Top and bottom part, assembly kit

  • 适配系统部件
  • 按客户要求修改加工

“中间环” 配件

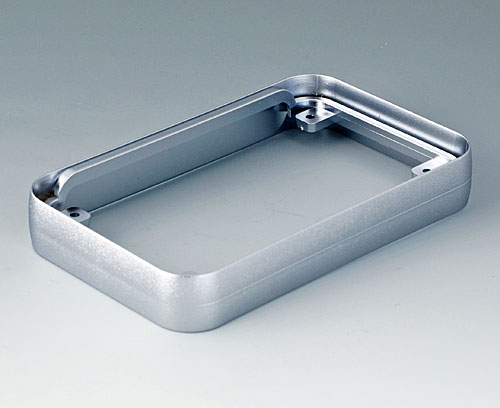

A9151011 Intermediate ring M

A9151011

Intermediate ring M Sophisticated feature in metallic finish (RoHS compliant). 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.

Supply 1 intermediate ring

关闭

A9151011

Intermediate ring M
产品已添加到关注清单中
ABS (UL 94 HB)
matt chromed
68x108x16mm

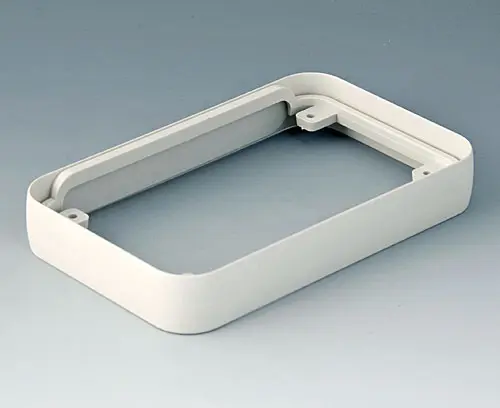

A9151017 Intermediate ring M

A9151017

Intermediate ring M For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

关闭

A9151017

Intermediate ring M
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
68x108x16mm

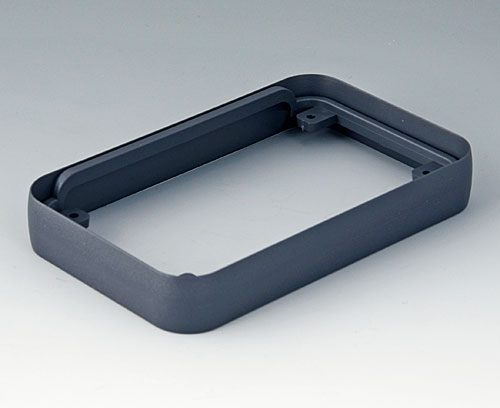

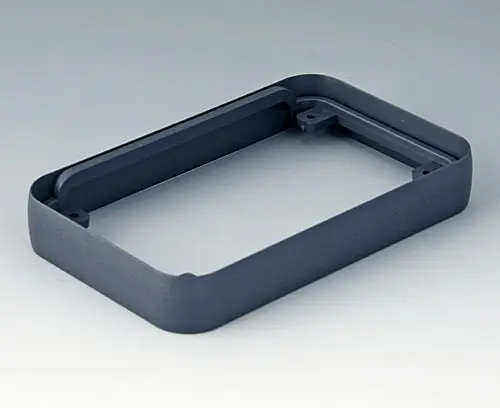

A9151018 Intermediate ring M

A9151018

Intermediate ring M For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

关闭

A9151018

Intermediate ring M
产品已添加到关注清单中
ABS (UL 94 HB)
lava
68x108x16mm
A9151118 Intermediate protection ring M

A9151118

Intermediate protection ring M Serves as a sealing ring and impact protection and ensures 3 mm more installation height. Individual colour choice and designs on demand.

Supply 1 intermediate ring

关闭

A9151118

Intermediate protection ring M
产品已添加到关注清单中
SEBS (TPE)
volcano
68x108x16mm

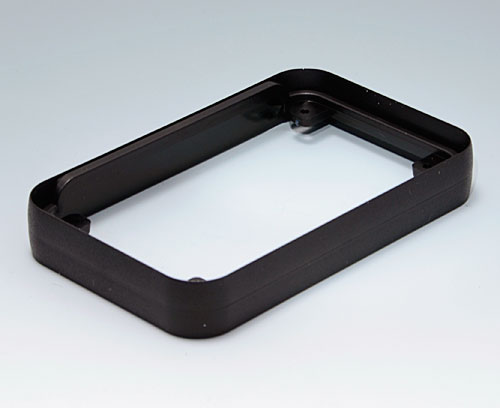

A9151219 Intermediate ring M

A9151219

Intermediate ring M For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.

Supply 1 intermediate ring

关闭

A9151219

Intermediate ring M
产品已添加到关注清单中
PMMA (IR) (UL 94 HB)
black RAL 9005
68x108x16mm

“挂墙支架” 配件

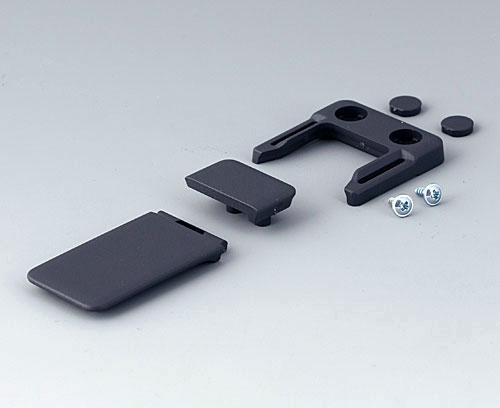

A9152048 Combi-Clip

A9152048

Combi-Clip Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.

Supply 1 set

关闭

A9152048

Combi-Clip
产品已添加到关注清单中
ABS (UL 94 HB)
lava
45x27mm

“手提” 盒附件

A9100001 Ring eyelet

A9100001

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 3 mm, location hole ø 4 mm required.

Supply 1 ring eyelet

关闭

A9100001

Ring eyelet
产品已添加到关注清单中
PA 6
volcano

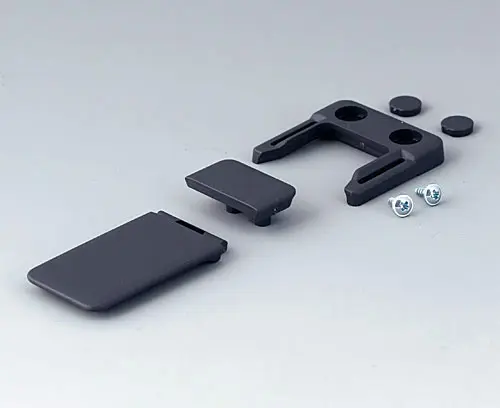

A9152048 Combi-Clip

A9152048

Combi-Clip Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.

Supply 1 set

关闭

A9152048

Combi-Clip
产品已添加到关注清单中
ABS (UL 94 HB)
lava
45x27mm

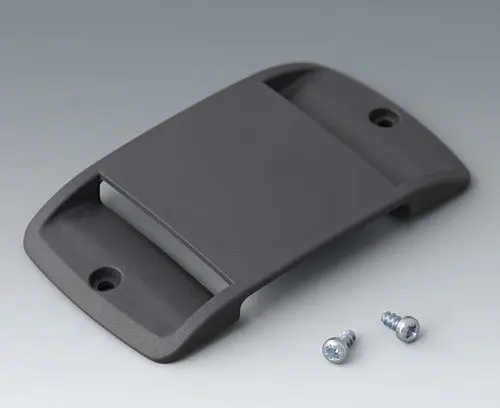

B9106128 Strap eyelet

B9106128

Strap eyelet For attaching to the belt or belt strap (lengthwise or crosswise). Max. dimensions of the belt strap/belt: 35 mm high, 4 mm thick. Easy assembly.

Supply 1 strap eyelet, 2 screws

关闭

B9106128

Strap eyelet
产品已添加到关注清单中
ABS (UL 94 HB)
lava

“螺钉” 附件

A0304031 Self-tapping screws 2.2 x 5 mm (PZ1)

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

关闭

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1)
产品已添加到关注清单中

附件

A9152058 Tilt foot bar

A9152058

Tilt foot bar Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.

Supply 1 tilt foot bar, assembly kit

关闭

A9152058

Tilt foot bar
产品已添加到关注清单中
ABS (UL 94 HB)
lava

Customising options for A9051108

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
防护等级
IP 54 opt.
Necessary accessories: soft TPE intermediate ring, IP 40
颜色
lava
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
65 mm
Width
105 mm
Height
19 mm
电路板长度,下盒
56 mm
电路板宽度,下盒
96 mm
电路板长度,上盒
56 mm
电路板宽度,上盒
96 mm
Keypad length
46.7 mm
Keypad width
70.3 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
41 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
