DIN 标准导轨接线盒
C6406107
SMART-PANEL E155

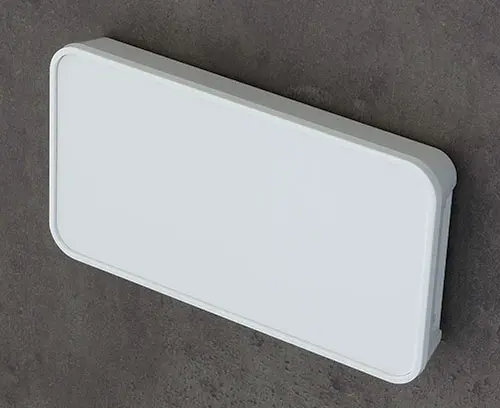

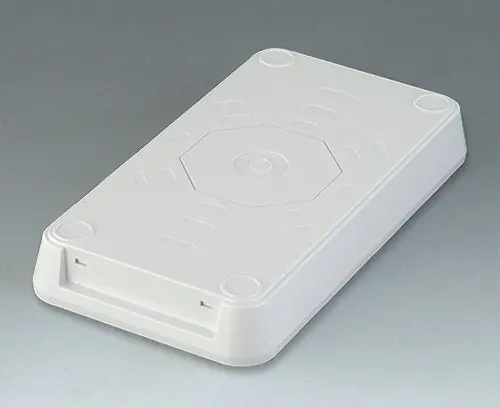

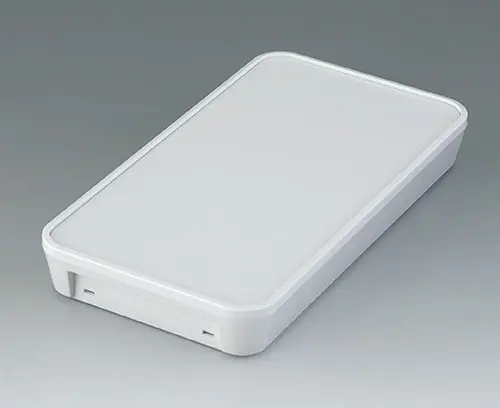

Elegant two-part plastic enclosure with flat top part. Fastening pillars for PCBs and components in the top part. Bottom part with a series of pre-moulded cut-outs for assembly on standard flush-mounted/cavity wall boxes (machining required). Secure snap-in assembly of top and bottom parts. Rational assembly of the electronics. To open the enclosures easily and practically, we recommend that you use the opening tool set, which is available as an accessory. Recessed operating area protects a membrane keyboard or glass control panel. Resin hardboard protection plate, glass panel, adhesive foil and opening tool available as accessories. Due to the high-quality material (UL 94 V-0) and the elegant design, perfect for use in modern building services technology.
SupplyTop and bottom parts
添加到购物车内
“保护等级” 附件
C6506011
Hardboard plate E155
The phenolic resin hardboard protection plate is located on pillars in the top panel and, if necessary, can be hot-caulked or glued in place. The plate protects the underlying electronics from damage during installation and subsequent service activities..
Supply 1 hardboard plate
C6506011
Hardboard plate E155产品已添加到关注清单中
C6506012
Adhesive foil E155
For secure mounting of the glass panel on the top part.
Supply 1 adhesive foil
C6506012
Adhesive foil E155产品已添加到关注清单中
C6506013
Glass panel E155
Glass panel for premium high-quality applications e.g. touch-screens/displays. Can be glued into the recessed top part for a perfect fit (accessory adhesive foil available). Printing on the rear is possible on request, to match the visible display section and to cover the adhesive surface. The matt ground sides with chamfered edges round off the high-quality impression.
Supply 1 glass panel, chemically hardened
C6506013
Glass panel E155产品已添加到关注清单中
clear
149.75x78.75x1.6mm
“螺钉” 附件
A0325060
Self-tapping screw 2.5 x 6 mm (T8)
Self-tapping screw with T8 Torx drive. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)产品已添加到关注清单中
附件
A9210180
Anti-slide feet 10,1 x 1.8 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply 2 rubber feet
A9210180
Anti-slide feet 10,1 x 1.8 mm产品已添加到关注清单中
C6502010
Opening tool set
Special tool set for SMART-PANEL enclosures. The set includes two identical tools which are used to easily and reliably open the enclosures. We recommend using both opening tools together at the same time. The tools are moulded in plastic and have a specially designed tip allowing them to be used precisely in the narrow release apertures on the underside of the enclosure. The set is ideal for on-site service technicians allowing them to gently open sensitive electronic/electrical equipment when needed.
Supply 2 opening tools
C6502010
Opening tool set产品已添加到关注清单中
traffic white RAL 9016
Customising options for C6406107
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- 技术数据
-
图纸或资料
- 应用示例
- 采购有关数据
材料
防护等级
颜色
traffic white RAL 9016
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
长度
155 mm
宽度
84 mm
高度
21.3 mm
电路板长度，下盒
137 mm
电路板宽度，下盒
68 mm
Keypad length
149.75 mm
Keypad width
78.75 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 369 KB
- AutoCAD DWG-File 650 KB
- AutoCAD DXF-File 2,456 KB
- 3 维 PDF 版 （Acrobat Reader 软件） (产品旋转 360°，部件显示或隐藏等功能) 480 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00027604.x_t 4,230 KB
- 00027604.step 9,326 KB
- 00027604.sat 9,877 KB
Weight/1 part
98 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
