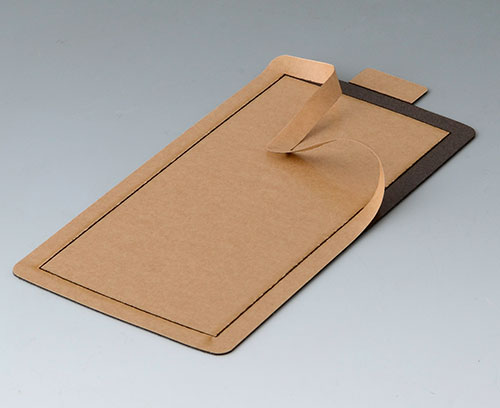

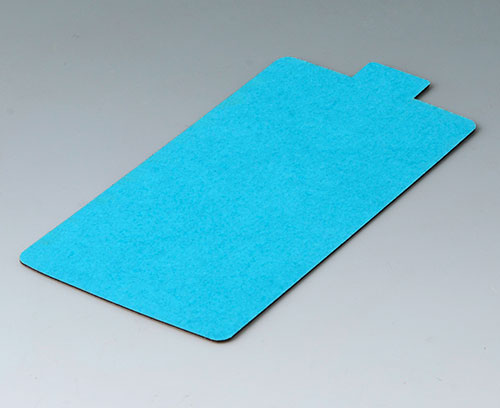

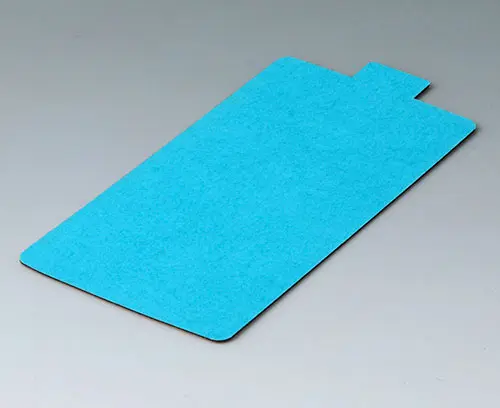

B5503300 Adhesive foil M

B5503300

Adhesive foil M

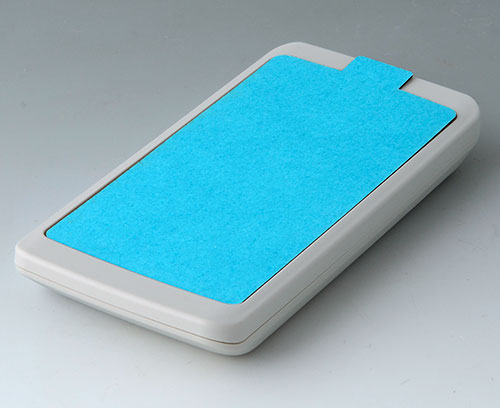

For secure mounting of the front screen on the top part.

Supply

1 adhesive foil

  • 应用于
B5403307 SLIM-CASE M, Vers. III

B5403307

SLIM-CASE M, Vers. III 2-piece handheld enclosure, flat design, with a large operating panel of up to 4" (10 cm). The contours of the enclosure are rounded along the sides - comfortable to hold and easy to operate. Recessed operating panel for using a contoured transparent front screen (available as an accessory with adhesive film) or for protecting individual membrane keyboards. Fastening pillars for mounting PCBs in top and bottom parts. Seal for protection class IP 65 available as accessory.

Version Operating panel recessed 1.6 mm

Supply Top and bottom part, assembly kit

关闭

B5403307

SLIM-CASE M, Vers. III
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
off-white RAL 9002
148x74x19mm
IP 65 opt., IP 40
B5403317 SLIM-CASE M, Vers. VI

B5403317

SLIM-CASE M, Vers. VI 3-piece handheld enclosure with TPE intermediate ring, compact design, with a large operating panel of up to 4" (10 cm). Comfortable grip thanks to enclosure contours that are rounded along the sides and intermediate ring made of TPE, which also serves as impact protection and as a sealing ring for protection class IP 54. Recessed operating panel for using a contoured transparent front screen (available as an accessory with adhesive film) or for protecting individual membrane keyboards. Fastening pillars for mounting PCBs in top and bottom parts.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPE intermediate ring are not possible.

Version With TPE intermediate ring and operating panel recessed 1.6 mm

Supply Top and bottom part, TPE intermediate ring, assembly kit

关闭

B5403317

SLIM-CASE M, Vers. VI
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
off-white RAL 9002
148x74x22mm
IP 54
B5503201 Front screen M

B5503201

Front screen M The contoured transparent front screen (accessory) protects the displays underneath. It is rounded on the long edges to follow the ergonomic shape of the case. Suitable for SLIM-CASE M with operating panel recessed 1.6 mm (versions III and VI). Mounted with a double-sided adhesive film (accessories).
On request, supplied individually printed from behind to match your visible display as well as masking the adhesive film.

Supply 1 front screenm

关闭

B5503201

Front screen M
产品已添加到关注清单中
PC
transparent
125.3x63.5x1.3mm
  • 技术数据
  • 采购有关数据
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
4 g
Customs tariff number
(OKW product)
39199080
Country of manufacture
Germany
