A9406333
SHELL-TYPE CASES V 110, Vers. I
Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.
VersionWithout battery compartment
Supply1 top and base part, assembly kit
需加附件使产品完整
A9106113

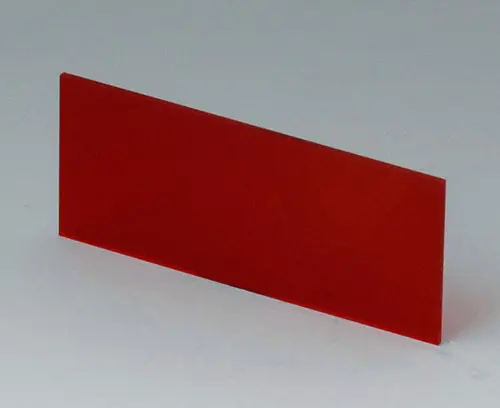

Front / rear panel V 110
Front panel for SHELL-TYPE CASE V and O. For case A940633.
Supply 1 front panel
关闭A9106113
Front / rear panel V 110产品已添加到关注清单中
red transparent
59.3x25x1mm

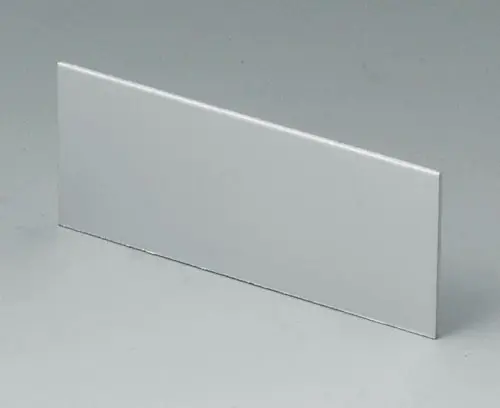

A9107111
Front / rear panel V 110
Front panel for SHELL-TYPE CASE V and O. For case A940633.
Supply 1 front panel
关闭A9107111
Front / rear panel V 110产品已添加到关注清单中
matt anodised
59.3x25x1mm
“保护等级” 附件
A9106095
Contact-strips V, G 110
Provide additional electrical continuity between the top and base shells of shielded cases (order two pieces, one for each side).
Supply 1 contact-strip
关闭A9106095
Contact-strips V, G 110产品已添加到关注清单中
“挂墙支架” 配件
A9204108
Wall mounting brackets
Exterior wall mounting elements for the SHELL-TYPE CASES 110, 155 and 190. Fastening to the case by means of the case fixing screws.
Supply 4 wall mounting brackets
关闭A9204108
Wall mounting brackets产品已添加到关注清单中
pebble grey RAL 7032
B1350048
Wall suspension elements
Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.
Supply 1 wall suspension element, 1 adapter 50 x 100 mm, assembly kit
关闭B1350048
Wall suspension elements产品已添加到关注清单中
pebble grey RAL 7032
“手提” 盒附件
A9100002
Ring eyelet
For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.
Supply 1 ring eyelet
关闭A9100002
Ring eyelet产品已添加到关注清单中
volcano
A9172107
Belt/Pocket clip
Universal clip. Fixing in two location holes (bore distance 20 mm, 2 x diameter = 4.2 mm).
Application: DATEC-POCKET-BOX L/M/S (fixing already considered), SHELL-TYPE CASES 85 and 110, FLAT-PACK CASE N 100.
Application: DATEC-POCKET-BOX L/M/S (fixing already considered), SHELL-TYPE CASES 85 and 110, FLAT-PACK CASE N 100.
Supply 1 belt/pocket clip, assembly kit
关闭A9172107
Belt/Pocket clip产品已添加到关注清单中
off-white RAL 9002
62x30mm
“螺钉” 附件
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
关闭A0306031
Self-tapping screws 3 x 6 mm (PZ1)产品已添加到关注清单中
附件
A9207150
Anti-slide feet 6.5 x 2 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply 2 rubber feet
关闭A9207150
Anti-slide feet 6.5 x 2 mm产品已添加到关注清单中
A9250807
Tilt foot bar
Facilitates ergonomical reading angles, side lenght 81 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.
Supply 1 tilt foot bar, assembly kit
关闭A9250807
Tilt foot bar产品已添加到关注清单中
off-white RAL 9002
A9250817
Tilt foot bar
Facilitates ergonomical reading angles, side lenght 43 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.
Supply 1 tilt foot bar, assembly kit
关闭A9250817
Tilt foot bar产品已添加到关注清单中
off-white RAL 9002
Customising options for A9406333
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- 技术数据
-
图纸或资料
- 采购有关数据
宽度
72 mm
深度
114 mm
高度
33 mm
电路板长度，下盒
99 mm
电路板宽度，下盒
54 mm
电路板长度，上盒
99 mm
电路板宽度，上盒
54 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 258 KB
- AutoCAD DWG-File 599 KB
- AutoCAD DXF-File 2,071 KB
- 3 维 PDF 版 （Acrobat Reader 软件） (产品旋转 360°，部件显示或隐藏等功能) 982 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00008469.x_t 2,730 KB
- 00008469.STEP 8,643 KB
- 00008469.SAT 8,913 KB
Weight/1 part
72 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
