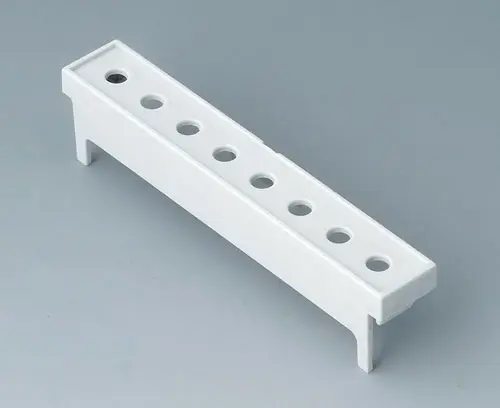

B6804115 Terminal guards, with holes, 10.16

B6804115

Terminal guards, with holes, 10.16

Easy assembly through snap-in installation of the case parts.

Version

7 poles (designed to allow the use of terminals, block 10.16)

Supply

1 piece

  • 应用于
  • 按客户要求修改加工
B6704100 RAILTEC C, 5 modules, Vers. I

B6704100

RAILTEC C, 5 modules, Vers. I Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

关闭

B6704100

RAILTEC C, 5 modules, Vers. I
产品已添加到关注清单中
PC (UL 94 V-0)
light grey
88x90x58mm
B6704101 RAILTEC C, 5 modules, Vers. I

B6704101

RAILTEC C, 5 modules, Vers. I Enclosure with 1 side open for connection - for max. 1 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

关闭

B6704101

RAILTEC C, 5 modules, Vers. I
产品已添加到关注清单中
PC (UL 94 V-0)
light grey
88x90x58mm
B6704102 RAILTEC C, 5 modules, Vers. II

B6704102

RAILTEC C, 5 modules, Vers. II Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

关闭

B6704102

RAILTEC C, 5 modules, Vers. II
产品已添加到关注清单中
PC (UL 94 V-0)
light grey
88x90x58mm
B6704103 RAILTEC C, 5 modules, Vers. II

B6704103

RAILTEC C, 5 modules, Vers. II Enclosure with 1 side open for connection - for max. 1 terminal guards accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

关闭

B6704103

RAILTEC C, 5 modules, Vers. II
产品已添加到关注清单中
PC (UL 94 V-0)
light grey
88x90x58mm
B6704106 RAILTEC C, 5 modules, Vers. IV

B6704106

RAILTEC C, 5 modules, Vers. IV Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 3 clips, 1 top part

关闭

B6704106

RAILTEC C, 5 modules, Vers. IV
产品已添加到关注清单中
PC (UL 94 V-0)
light grey
88x90x58mm
B6704107 RAILTEC C, 5 modules, Vers. IV

B6704107

RAILTEC C, 5 modules, Vers. IV Enclosure with 1 side open for connection - for max. terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 3 clips, 1 top part

关闭

B6704107

RAILTEC C, 5 modules, Vers. IV
产品已添加到关注清单中
PC (UL 94 V-0)
light grey
88x90x58mm

Customising options for B6804115

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
颜色
light grey
Pitch
10.16 mm
Poles
7
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
4 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
U.K.
