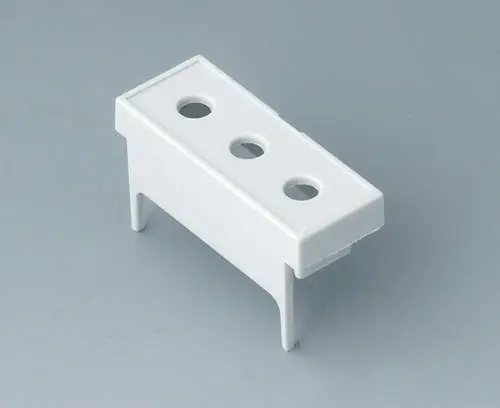

B6801115 Terminal guards, with holes, 10.16

B6801115

Terminal guards, with holes, 10.16

Easy assembly through snap-in installation of the case parts.

Version

3 poles (designed to allow the use of terminals, block 10.16)

Supply

1 piece

  • 应用于
  • 按客户要求修改加工

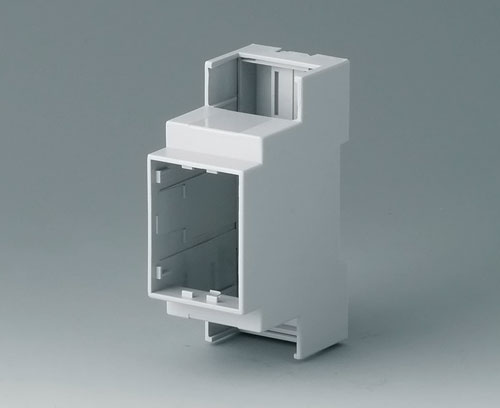

B6701100 RAILTEC C, 2 modules, Vers. I

B6701100

RAILTEC C, 2 modules, Vers. I Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH 35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.

Version Front open, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

关闭

B6701100

RAILTEC C, 2 modules, Vers. I
产品已添加到关注清单中
PC (UL 94 V-0)
light grey
36x90x58mm

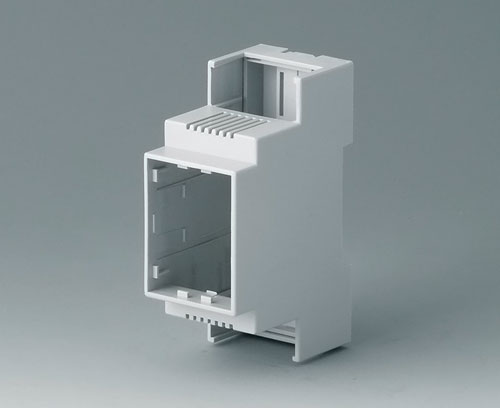

B6701102 RAILTEC C, 2 modules, Vers. II

B6701102

RAILTEC C, 2 modules, Vers. II Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.

Version Front open, connection side with free through passage, with ventilations slots

Supply 1 bottom part, 2 clips, 1 top part

关闭

B6701102

RAILTEC C, 2 modules, Vers. II
产品已添加到关注清单中
PC (UL 94 V-0)
light grey
36x90x58mm

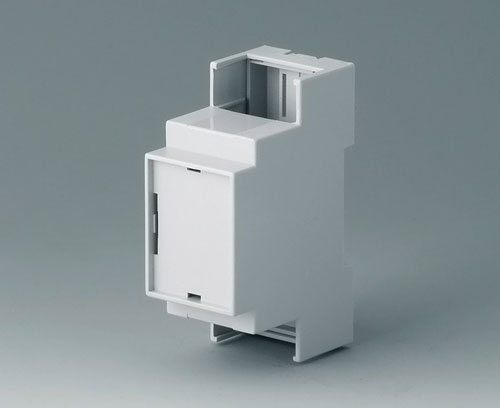

B6701106 RAILTEC C, 2 modules, Vers. IV

B6701106

RAILTEC C, 2 modules, Vers. IV Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

关闭

B6701106

RAILTEC C, 2 modules, Vers. IV
产品已添加到关注清单中
PC (UL 94 V-0)
light grey
36x90x58mm

Customising options for B6801115

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
颜色
light grey
Pitch
10.16 mm
Poles
3
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
1 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
U.K.
