B6724443

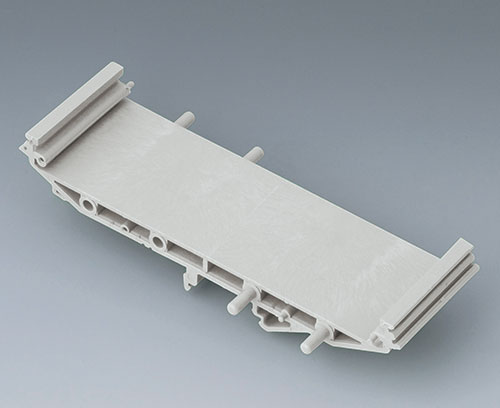

RAILTEC SUP. 107, intermediate p. + foot

Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts. Suitable for DIN EN 60715 (TH35, TH15 and G32).

Supply

1 intermediate part with foot

2D PDF 视图
3 维 PDF 版视图
3D/2D 图纸资料下载

请制作 PDF 数据表用于 B6724443

请选择产品信息以输入数据表。

添加到购物车内 添加到购物车内 添加到购物车内
产品已添加到关注清单中
继续查询或 开启您的购物车

系统组件使产品完整

B6724444 RAILTEC SUP. 107, end section

B6724444

RAILTEC SUP. 107, end section Modular design with plug-in connection. Minimum components for one support: 2 end sections. Combining these parts with intermediate parts (sep. articles) allows optimum adaptation to the relevant size requirements. The PCB widths are obtained by adding the relevant dimensions of the individual parts.

Supply 1 end section

B6724444

RAILTEC SUP. 107, end section
产品已添加到关注清单中

light grey
118x11.5x17.5mm
B6724445 RAILTEC SUP. 107, end section with foot

B6724445

RAILTEC SUP. 107, end section with foot Modular design with plug-in connection. Minimum components for one support: 2 end sections. Combining these parts with intermediate parts (sep. articles) allows optimum adaptation to the relevant size requirements. The PCB widths are obtained by adding the relevant dimensions of the individual parts. Suitable for DIN EN 60715 (TH35).

Supply 1 end section with foot

B6724445

RAILTEC SUP. 107, end section with foot
产品已添加到关注清单中

light grey
118x11.5x27.5mm

Customising options for B6724443

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

材料

颜色
light grey
标准根据
RoHS compliant
DIN EN 60715 G32
DIN EN 60715 TH35
DIN EN 60715 TH15
REACH compliant
长度
118 mm
宽度
35 mm
高度
27.5 mm
电路板长度，下盒
107 mm
电路板宽度，下盒
35 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
27 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
UK
