B6701104 RAILTEC C, 2 modules, Vers. III

B6701104

RAILTEC C, 2 modules, Vers. III

Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Frame, front panel, front lid convex see accessories.

Version

Front open, connection side with extended case wall

Supply

1 bottom part, 2 clips, 1 top part

  • 适配系统部件
  • 按客户要求修改加工

“挂墙支架” 配件

B6811542 Adapter

B6811542

Adapter Suitable for DIN EN 60715 (TH35), EN 60715 (G32) and EN 60715 (TH15).

Supply 1 piece

关闭

B6811542

Adapter
产品已添加到关注清单中
PA 6 (UL 94 V-0)
green

“端子” 配件

B6601222 Plug header, block 5.08

B6601222

Plug header, block 5.08 Male terminal block, 5.08. 5-pin.

Supply 1 piece

关闭

B6601222

Plug header, block 5.08
产品已添加到关注清单中
PA 6 (UL 94 V-0)
B6601223 Plug header, block 5.08

B6601223

Plug header, block 5.08 Female terminal block, 5.08. 5-pin.

Supply 1 piece

关闭

B6601223

Plug header, block 5.08
产品已添加到关注清单中
PA 6 (UL 94 V-0)
B6606222 Plug header, block 5.08

B6606222

Plug header, block 5.08 Male terminal block, 5.08. 2-pin.

Supply 1 piece

关闭

B6606222

Plug header, block 5.08
产品已添加到关注清单中
PA 6 (UL 94 V-0)
B6606223 Plug header, block 5.08

B6606223

Plug header, block 5.08 Female terminal block, 5.08. 2-pin.

Supply 1 piece

关闭

B6606223

Plug header, block 5.08
产品已添加到关注清单中
PA 6 (UL 94 V-0)

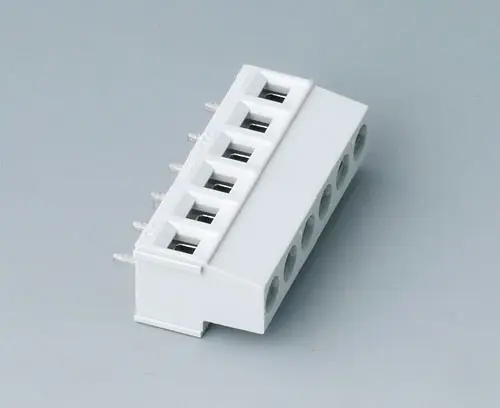

B6801650 Terminal block, block 5.08

B6801650

Terminal block, block 5.08 PCB terminal block, 5.08. 6-pin.

Supply 1 piece

关闭

B6801650

Terminal block, block 5.08
产品已添加到关注清单中
PA 68 (UL 94 V-0)
light grey

附件

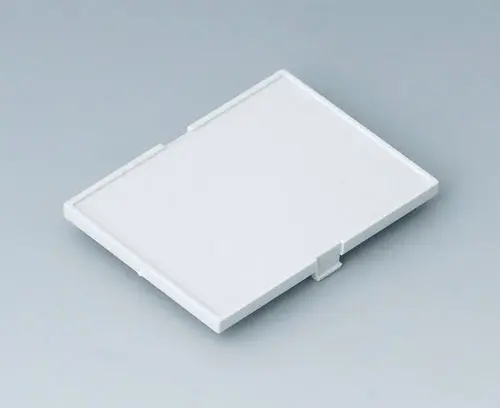

B6801100 Front panel, 2 modules

B6801100

Front panel, 2 modules Snap-in.

Supply 1 front panel

关闭

B6801100

Front panel, 2 modules
产品已添加到关注清单中
PC (UL 94 V-0)
light grey
32x42mm

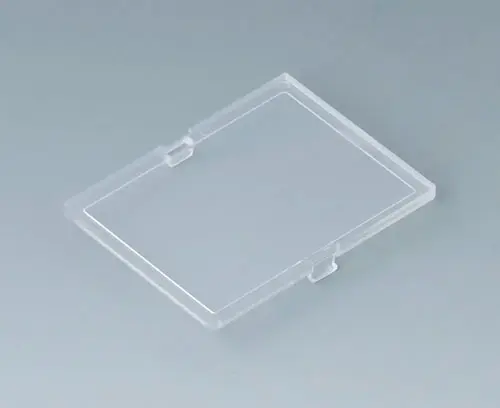

B6801200 Front panel, 2 modules

B6801200

Front panel, 2 modules Snap-in.

Supply 1 front panel

关闭

B6801200

Front panel, 2 modules
产品已添加到关注清单中
PC (UL 94 V-0)
transparent
32x42mm

Customising options for B6701104

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
颜色
Bottom and top part light grey,
Locking clip black/translucent
标准根据
Width
36 mm
Height
90 mm
Depth
58 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Miscellaneous information

Weight/1 part
37 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
U.K.
