DIN 标准导轨接线盒
添加到购物车内

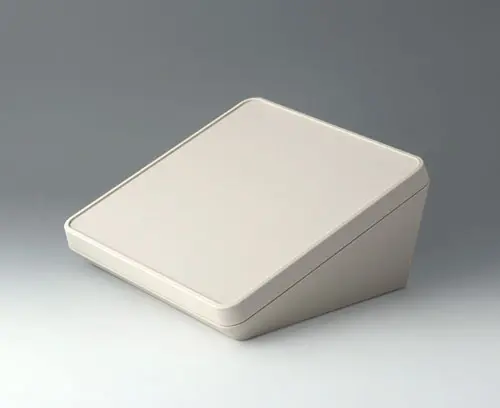

B4422107
PROTEC 220, Vers. I
Modern two piece plastic enclosure with an ergonomically inclined operating panel. Fastening pillars for PCBs and components in the top and bottom parts. Recessed interface area. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.
Supply Top and bottom parts, assembly kit including 4 self-adhesive rubber feet
B4422107
PROTEC 220, Vers. I产品已添加到关注清单中
off-white RAL 9002
220x220x108mm
B4422207
PROTEC 220, Vers. II
Modern three piece plastic enclosure with an ergonomically inclined operating panel. The snap-on cover included in the supply makes it possible to close the deep recessed interface area at the rear both visually and/or to install additional electronics in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.
Supply Top and bottom parts, snap-on cover, assembly kit including 4 self-adhesive rubber feet
B4422207
PROTEC 220, Vers. II产品已添加到关注清单中
off-white RAL 9002
220x220x108mm

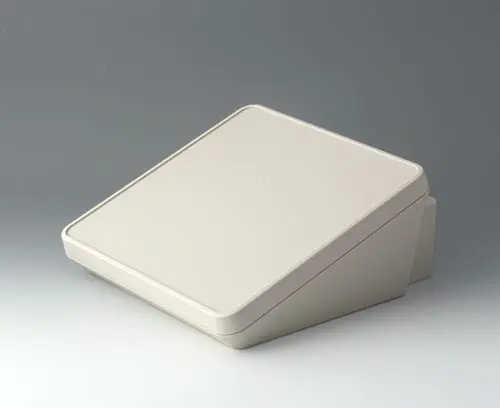

B4422307
PROTEC 220, Vers. III
Modern three piece plastic enclosure with an ergonomically inclined operating panel. The deep cover included in the supply provides additional space in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.
Supply Top and bottom parts, deep cover, assembly kit including 4 self-adhesive rubber feet
B4422307
PROTEC 220, Vers. III产品已添加到关注清单中
off-white RAL 9002
220x243x108mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
1 g
Customs tariff number
(OKW product)
(OKW product)
40081900
Country of manufacture
Germany
