DIN 标准导轨接线盒
A8022148

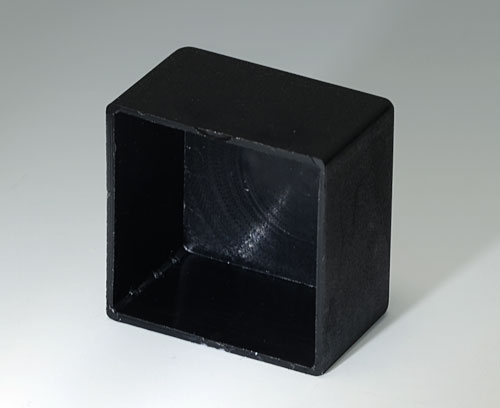

POTTING BOXES, Vers. III
Impact strong case. With elastic side panels. Therefore only partly resistant to deformation.
Supply1 case
添加到购物车内
Customising options for A8022148
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- 技术数据
-
图纸或资料
- 采购有关数据
长度
22.4 mm
宽度
22.4 mm
高度
14 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 80 KB
- AutoCAD DWG-File 242 KB
- AutoCAD DXF-File 665 KB
- 3 维 PDF 版 （Acrobat Reader 软件） (产品旋转 360°，部件显示或隐藏等功能) 31 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00007314.x_t 22 KB
- 00007314.step 49 KB
- 00007314.sat 30 KB
Weight/1 part
1.5 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Other country
特制机盒:我们可根据您的需求，对我们的机盒和旋钮进行精加工和精款加工。您将得到一个精工完毕可直接安装的机盒，仅需添入电子元件即可使用。 您可以在此处找到以下产品类型款式 A8022148请务必索取报价！
