B3123167

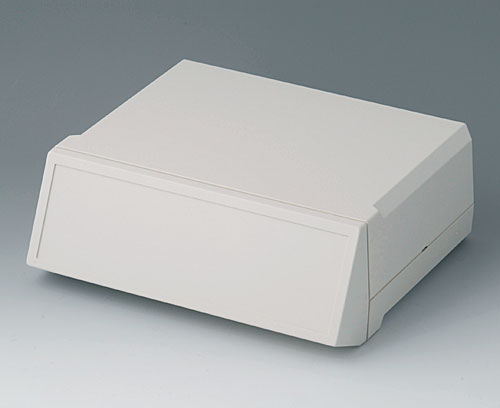

Sloping control panel L, flat/high
Suitable for MOTEC L B3023127 and B3023147 with high top and flat base part. The ergonomically sloped control front with resecced area for membrane keyboards will be slided in the guiding groove.
Supply1 sloping control panel
添加到购物车内
B3023127
MOTEC L, flat/high
Desk top case with flat base and high top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.
Supply 1 top and base part, 4 self-adhesive case feet
B3023127
MOTEC L, flat/high产品已添加到关注清单中
off-white RAL 9002
235x165x85mm
B3023147
MOTEC L, with handle bar
Desk top case with handle bar in version with flat base and high top part. With 30 degress indexing. Front and rear part open. Screw tower for PCBs and vertical guides for mounting panels. Front panels as accessory.
Supply 1 top and base part, handle bar, 4 self-adhesive case feet
B3023147
MOTEC L, with handle bar产品已添加到关注清单中
off-white RAL 9002
235x165x85mm
Customising options for B3123167
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- 技术数据
-
图纸或资料
- 采购有关数据
Keypad length
214.3 mm
Keypad width
62.5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 253 KB
- AutoCAD DWG-File 828 KB
- AutoCAD DXF-File 2,966 KB
Weight/1 part
102 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
特制机盒:我们可根据您的需求，对我们的机盒和旋钮进行精加工和精款加工。您将得到一个精工完毕可直接安装的机盒，仅需添入电子元件即可使用。 您可以在此处找到以下产品类型款式 B3123167请务必索取报价！
