B9006786

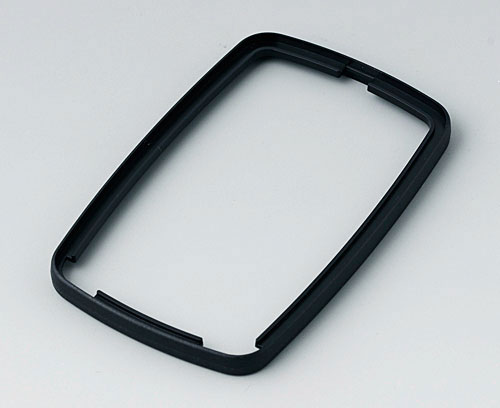

Intermediate ring EL

Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. Recommended for case applications with strap loop attachment.

Supply

1 intermediate ring EL

2D PDF 视图
3 维 PDF 版视图
3D/2D 图纸资料下载

请制作 PDF 数据表用于 B9006786

请选择产品信息以输入数据表。

添加到购物车内 添加到购物车内 添加到购物车内
产品已添加到关注清单中
继续查询或 开启您的购物车

系统组件使产品完整

B9006806 Bottom and top part EL

B9006806

Bottom and top part EL Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring EL as separate article necessary.

Supply 1 top and bottom part EL, 2 self-tapping screws

B9006806

Bottom and top part EL
产品已添加到关注清单中

black RAL 9005
78x48x20mm
B9006816 Bottom and top part EL

B9006816

Bottom and top part EL Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring EL as separate article necessary.

Supply 1 top and bottom part EL, 2 self-tapping screws

B9006816

Bottom and top part EL
产品已添加到关注清单中

black RAL 9005
78x48x24mm
B9006826 Bottom and top part EL

B9006826

Bottom and top part EL Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring EL as separate article necessary.

Supply 1 top and bottom part EL, 2 self-tapping screws

B9006826

Bottom and top part EL
产品已添加到关注清单中

black RAL 9005
78x48x26mm
B9006856 Bottom and top part EL

B9006856

Bottom and top part EL Assembly unit: Modern, flat styling. Easy to carry. Fixing supports for PCBs/components in the case bottom. Intermediate ring EL as separate article necessary.

Supply 1 top and bottom part EL, 2 self-tapping screws

B9006856

Bottom and top part EL
产品已添加到关注清单中

black RAL 9005
78x48x20mm

Customising options for B9006786

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

材料

颜色
black RAL 9005
标准根据
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
2 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany

特制机盒:我们可根据您的需求，对我们的机盒和旋钮进行精加工和精款加工。您将得到一个精工完毕可直接安装的机盒，仅需添入电子元件即可使用。 您可以在此处找到以下产品类型款式 B9006786请务必索取报价！
