DIN 标准导轨接线盒
B2116707

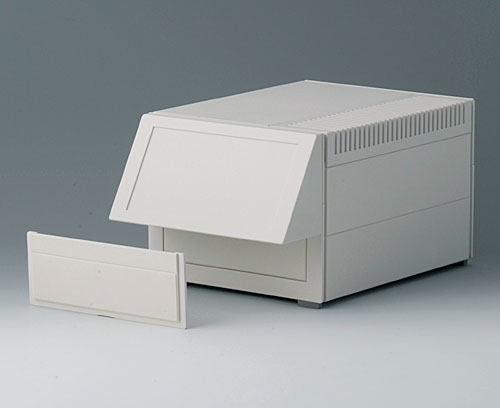

Infill panel E
When using the MEDITEC-cases with 1 intermediate part each right and left hand (case height = 124 mm) and operating front. The front cover locks the access to the case's inside; usable on top of or under the operaring front alternatively.
VersionE
Supply1 front cover (for locking)
添加到购物车内
B2012007
L-shells E 220, without holes
Component as separate parts: L-shells without hole. Ideal for the instalation of Eurocards 100 x 220 mm or 100 x 160 mm. Side trims 220 (sep. article) necessary for covering the screw fixing.
Supply 2 L-shells, incl. assembly kit, 4 case feet
B2012007
L-shells E 220, without holes产品已添加到关注清单中
off-white RAL 9002
160x260x74mm
B2012107

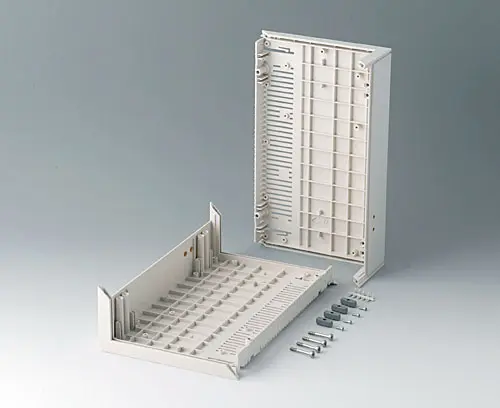

L-shells E 220, with holes for handle
Component as separate parts: L-shells with hole for handle. Ideal for the instalation of Eurocards 100 x 220 mm or 100 x 160 mm. Side trims 220 (sep. article) necessary for covering the screw fixing.
Supply 2 L-shells, incl. assembly kit, 4 case feet
B2012107
L-shells E 220, with holes for handle产品已添加到关注清单中
off-white RAL 9002
160x260x74mm
B2013007

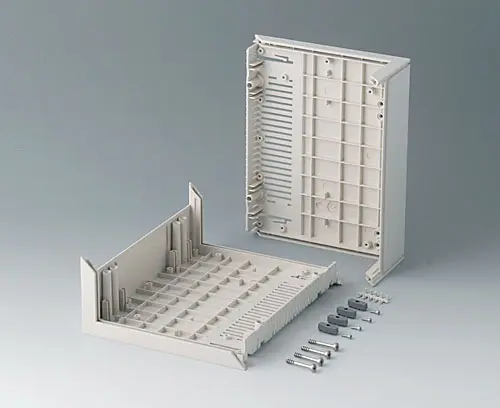

L-shells E 160, without holes
Component as separate parts: L-shells without hole. Ideal for the installation of Eurocards 100 x 160 mm. Side trims 220 (sep. article) necessary for covering the screw fixing.
Supply 2 L-shells, incl. assembly kit, 4 case feet
B2013007
L-shells E 160, without holes产品已添加到关注清单中
off-white RAL 9002
160x200x74mm
B2013107
L-shells E 160, with holes for handle
Component as separate parts: L-shells with hole for handle. Ideal for the installation of Eurocards 100 x 160 mm. Side trims 220 (sep. article) necessary for covering the screw fixing.
Supply 2 L-shells, incl. assembly kit, 4 case feet
B2013107
L-shells E 160, with holes for handle产品已添加到关注清单中
off-white RAL 9002
160x200x74mm

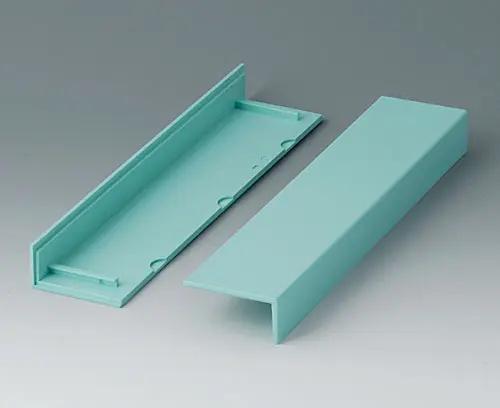

B2020005
Side trims 220, without ventilation
Side trims without ventilation. The trims will be slided laterally onto the L-shells and are self-locking.
Supply 2 side trims
B2020005
Side trims 220, without ventilation产品已添加到关注清单中
lagoon
B2020007
Side trims 220, without ventilation
Side trims without ventilation. The trims will be slided laterally onto the L-shells and are self-locking.
Supply 2 side trims
B2020007
Side trims 220, without ventilation产品已添加到关注清单中
off-white RAL 9002
B2021005
Side trims 220, with ventilation
Side trims with ventilation. The trims will be slided laterally onto the L-shells and are self-locking.
Supply 2 side trims
B2021005
Side trims 220, with ventilation产品已添加到关注清单中
lagoon

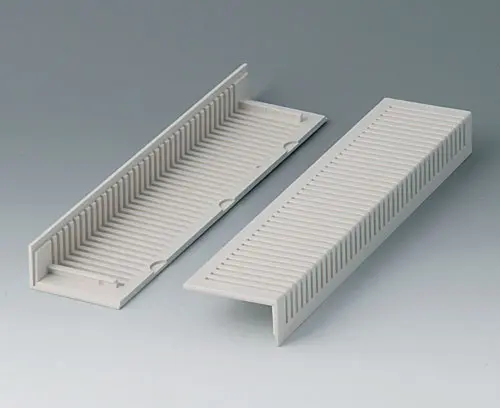

B2021007
Side trims 220, with ventilation
Side trims with ventilation. The trims will be slided laterally onto the L-shells and are self-locking.
Supply 2 side trims
B2021007
Side trims 220, with ventilation产品已添加到关注清单中
off-white RAL 9002
B2022005

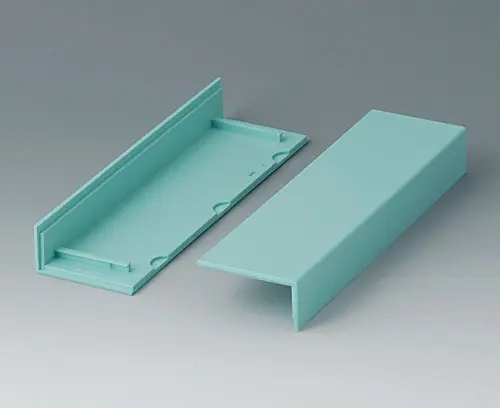

Side trims 160, without ventilation
Side trims without ventilation. The trims will be slided laterally onto the L-shells and are self-locking.
Supply 2 side trims
B2022005
Side trims 160, without ventilation产品已添加到关注清单中
lagoon
B2022007
Side trims 160, without ventilation
Side trims without ventilation. The trims will be slided laterally onto the L-Shells and are self-locking.
Supply 2 side trims
B2022007
Side trims 160, without ventilation产品已添加到关注清单中
off-white RAL 9002

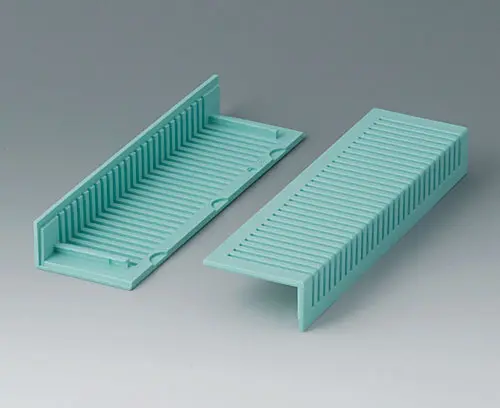

B2023005

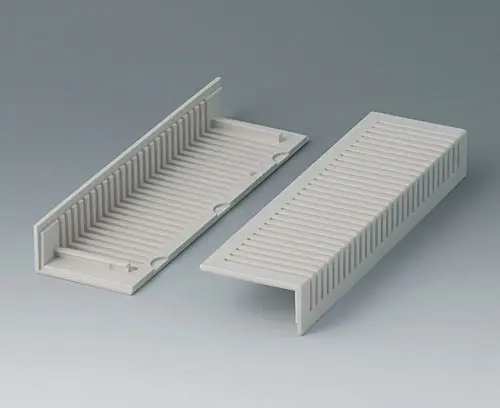

Side trims 160, with ventilation
Side trims with ventilation. The trims will be slided laterally onto the L-Shells and are self-locking.
Supply 2 side trims
B2023005
Side trims 160, with ventilation产品已添加到关注清单中
lagoon
B2023007
Side trims 160, with ventilation
Side trims with ventilation. The trims will be slided laterally onto the L-Shells and are self-locking.
Supply 2 side trims
B2023007
Side trims 160, with ventilation产品已添加到关注清单中
off-white RAL 9002

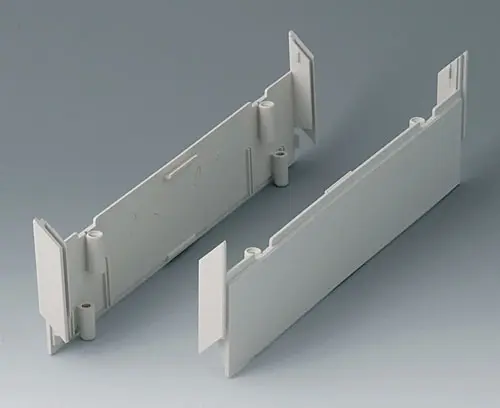

B2030007
Side panels 220, without holes
Side panels without hole for 50 mm additional height. Suitable for Meditec D220/E220.
Supply 2 side panels, set of screws
B2030007
Side panels 220, without holes产品已添加到关注清单中
off-white RAL 9002

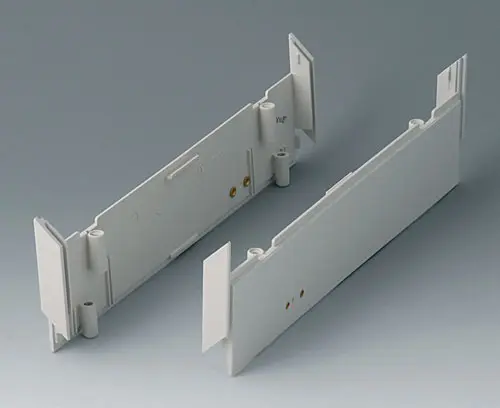

B2030107
Side panels 220, with holes for handle
Side panels with hole for 50 mm additional height. Suitable for Meditec D220/E220.
Supply 2 side panels, set of screws
B2030107
Side panels 220, with holes for handle产品已添加到关注清单中
off-white RAL 9002
B2031007

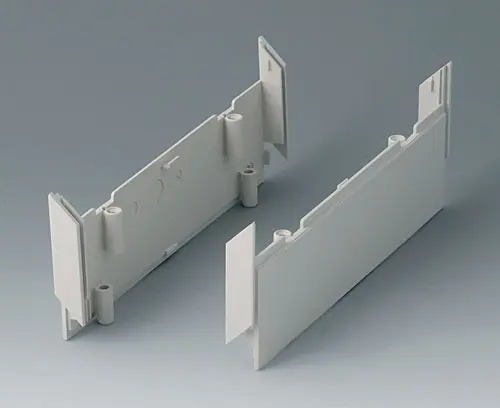

Side panels 160, without holes
Side panels without hole for 50 mm additional height. Suitable for Meditec D160/E160.
Supply 2 side panel, set of screws
B2031007
Side panels 160, without holes产品已添加到关注清单中
off-white RAL 9002
B2031107

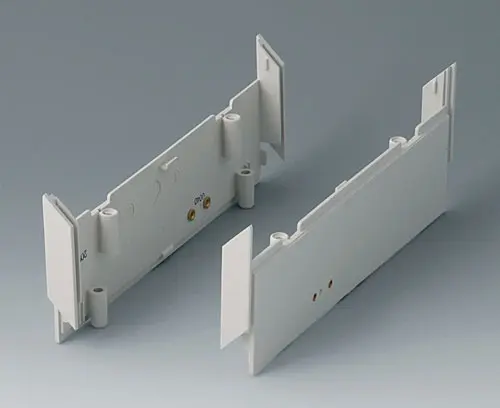

Side panels 160, with holes for handle
Side panels with hole for 50 mm additional height. Suitable for Meditec D160/E160.
Supply 2 side panel, set of screws
B2031107
Side panels 160, with holes for handle产品已添加到关注清单中
off-white RAL 9002
B2116507

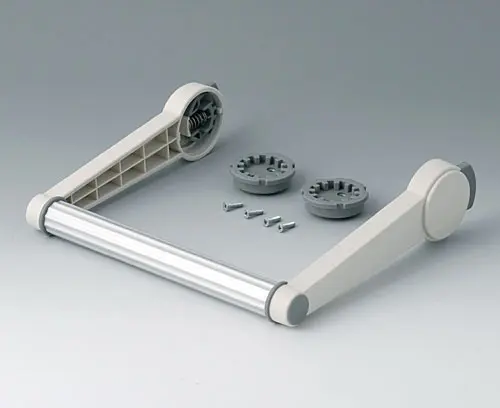

Handle bar E
For canting and carrying the unit. To be assembled from the outside. Strong ratchet with 30° indexing. For combination with side panel with hole for handle.
Supply 2 side arms, 1 al-profile, antislipping device, lid, assembly kit
B2116507
Handle bar E产品已添加到关注清单中
off-white RAL 9002

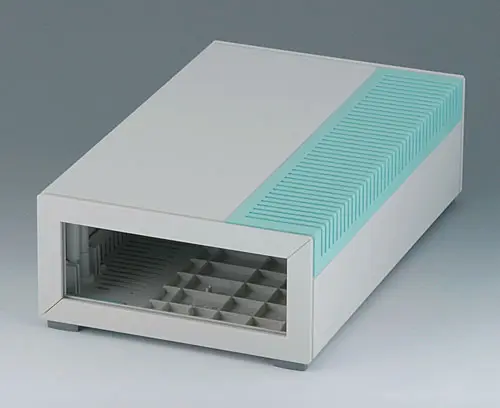

B2212005
MEDITEC E 220, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), assembly kit, 4 case-feet
B2212005
MEDITEC E 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x260x74mm

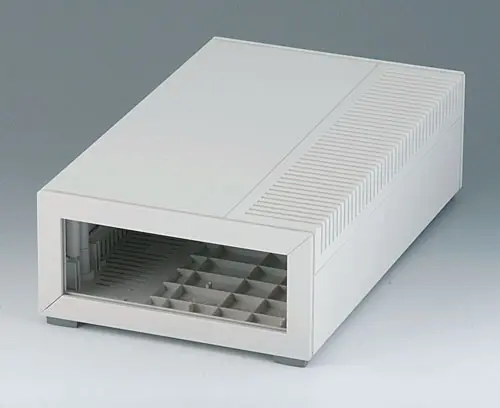

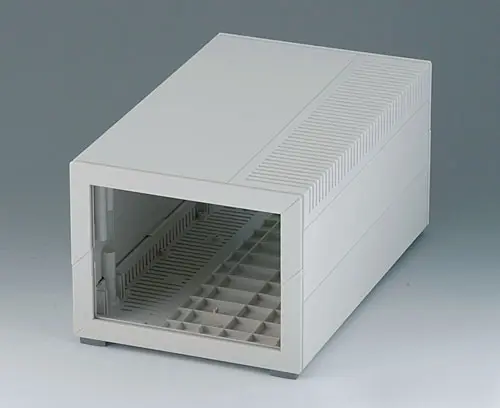

B2212007
MEDITEC E 220, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), assembly kit, 4 case-feet
B2212007
MEDITEC E 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x260x74mm
B2212015
MEDITEC E 220, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), assembly kit, 4 case-feet
B2212015
MEDITEC E 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x260x74mm

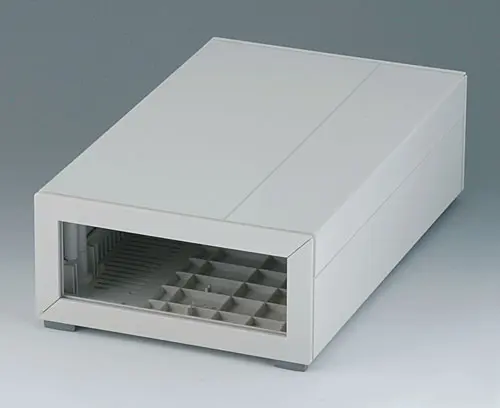

B2212017
MEDITEC E 220, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), assembly kit, 4 case-feet
B2212017
MEDITEC E 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x260x74mm

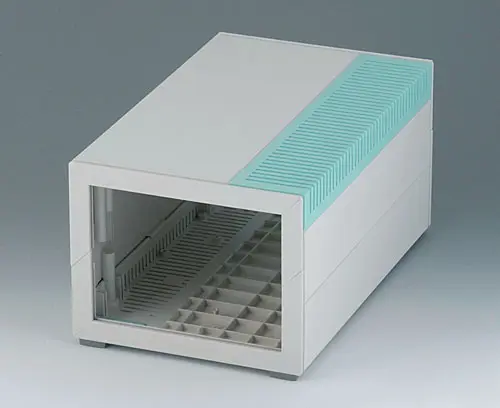

B2212205
MEDITEC E 220, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), 2 side panels, assembly kit, 4 case-feet
B2212205
MEDITEC E 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x260x124mm
B2212207
MEDITEC E 220, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), 2 side panels, assembly kit, 4 case-feet
B2212207
MEDITEC E 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x260x124mm

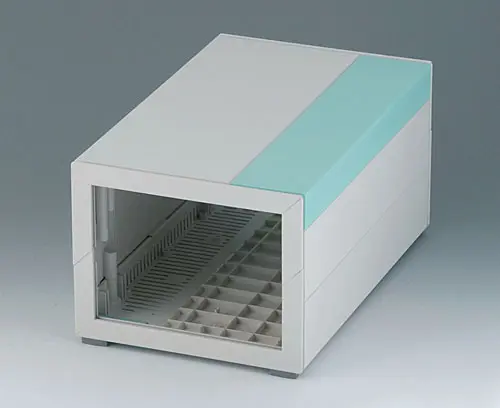

B2212215
MEDITEC E 220, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), 2 side panels, assembly kit, 4 case-feet
B2212215
MEDITEC E 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x260x124mm
B2212217
MEDITEC E 220, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), 2 side panels, assembly kit, 4 case-feet
B2212217
MEDITEC E 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x260x124mm
B2212305
MEDITEC E 220, with handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), 2 side panels, assembly kit, 4 case-feet, 1 handle bar
B2212305
MEDITEC E 220, with handle bar产品已添加到关注清单中
off-white RAL 9002
160x260x124mm

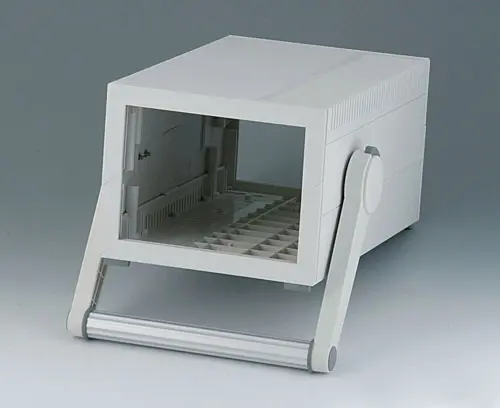

B2212307
MEDITEC E 220, with handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), 2 side panels, assembly kit, 4 case-feet, 1 handle bar
B2212307
MEDITEC E 220, with handle bar产品已添加到关注清单中
off-white RAL 9002
160x260x124mm

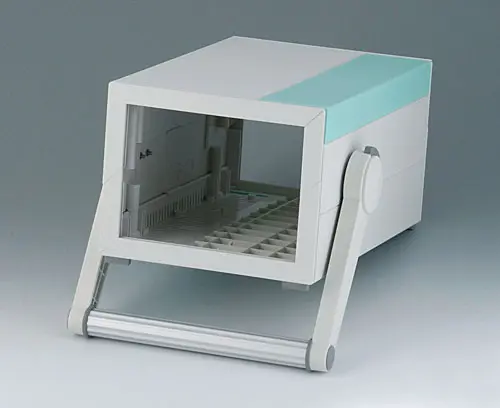

B2212315
MEDITEC E 220, with handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), 2 side panels, assembly kit, 4 case-feet, 1 handle bar
B2212315
MEDITEC E 220, with handle bar产品已添加到关注清单中
off-white RAL 9002
160x260x124mm

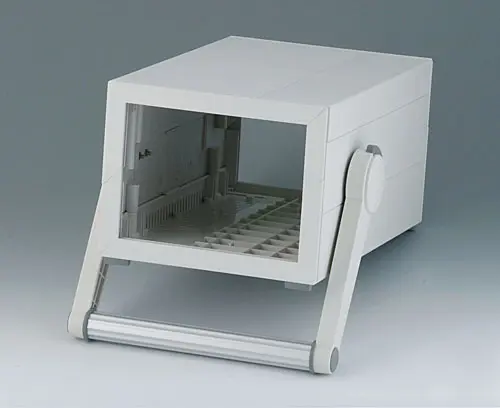

B2212317
MEDITEC E 220, with handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), 2 side panels, assembly kit, 4 case-feet, 1 handle bar
B2212317
MEDITEC E 220, with handle bar产品已添加到关注清单中
off-white RAL 9002
160x260x124mm

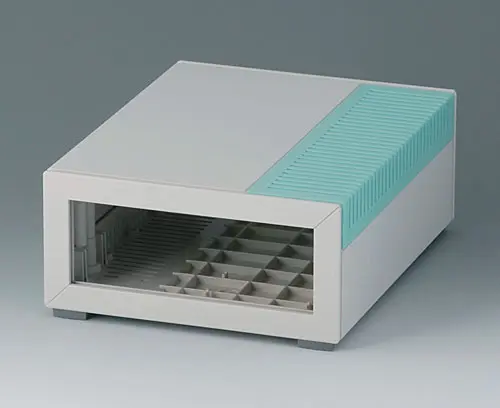

B2213005
MEDITEC E 160, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), assembly kit, 4 case-feet
B2213005
MEDITEC E 160, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x200x74mm

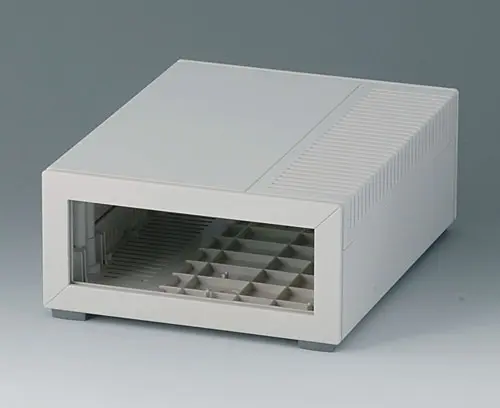

B2213007
MEDITEC E 160, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), assembly kit, 4 case-feet
B2213007
MEDITEC E 160, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x200x74mm

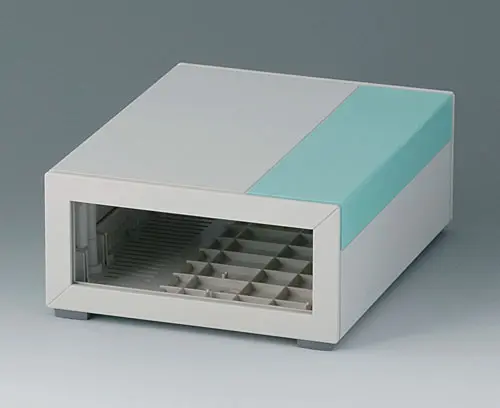

B2213015
MEDITEC E 160, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), assembly kit, 4 case-feet
B2213015
MEDITEC E 160, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x200x74mm

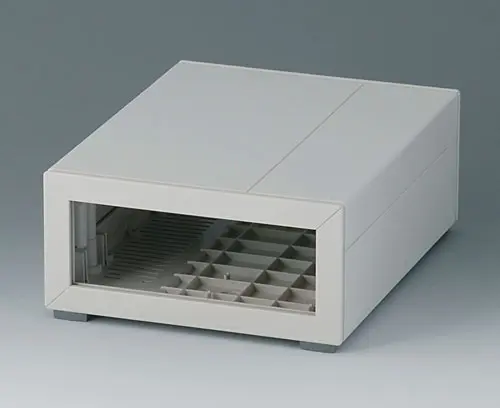

B2213017
MEDITEC E 160, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), assembly kit and 4 case-feet
B2213017
MEDITEC E 160, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x200x74mm

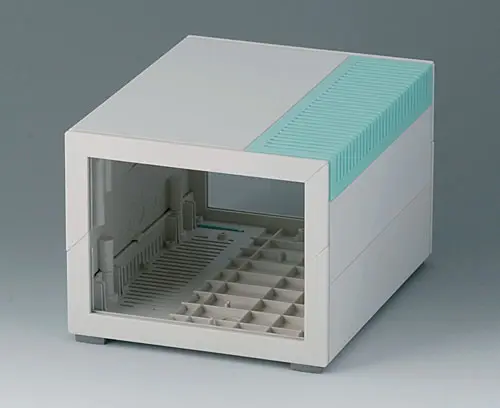

B2213205
MEDITEC E 160, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), 2 side panels, assembly kit, 4 case-feet
B2213205
MEDITEC E 160, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x200x124mm

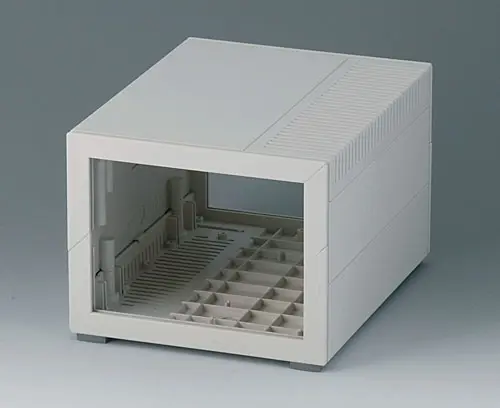

B2213207
MEDITEC E 160, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), 2 side panels, assembly kit, 4 case-feet
B2213207
MEDITEC E 160, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x200x124mm
B2213215
MEDITEC E 160, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), 2 side panels, assembly kit, 4 case-feet
B2213215
MEDITEC E 160, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x200x124mm

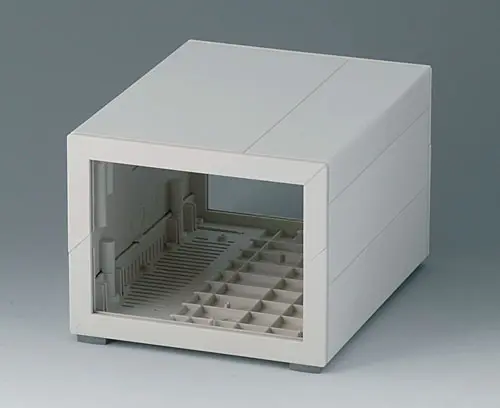

B2213217
MEDITEC E 160, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), 2 side panels, assembly kit and 4 case-feet
B2213217
MEDITEC E 160, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x200x124mm

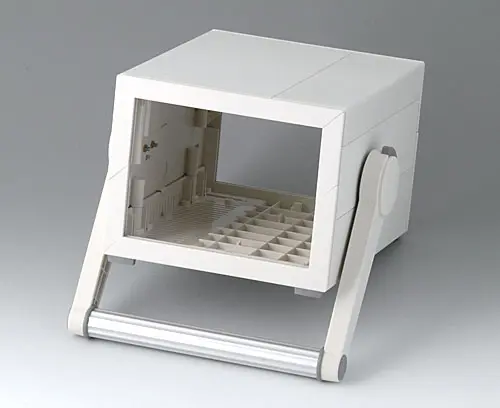

B2213305
MEDITEC E 160, with handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), 2 side panels, assembly kit, 4 case-feet, 1 handle bar
B2213305
MEDITEC E 160, with handle bar产品已添加到关注清单中
off-white RAL 9002
160x200x124mm

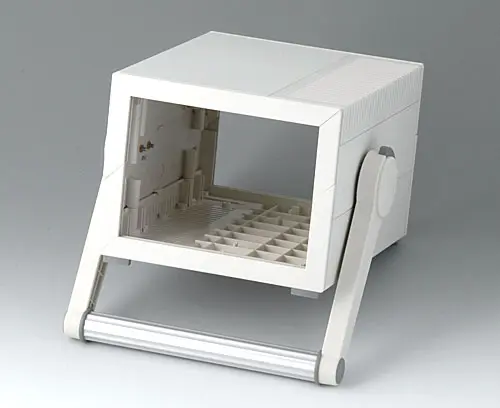

B2213307
MEDITEC E 160, with handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), 2 side panels, assembly kit, 4 case-feet, 1 handle bar
B2213307
MEDITEC E 160, with handle bar产品已添加到关注清单中
off-white RAL 9002
160x200x124mm
B2213315
MEDITEC E 160, with handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), 2 side panels, assembly kit, 4 case-feet, 1 handle bar
B2213315
MEDITEC E 160, with handle bar产品已添加到关注清单中
off-white RAL 9002
160x200x124mm
B2213317
MEDITEC E 160, with handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), 2 side panels, assembly kit and 4 case-feet, 1 handle bar
B2213317
MEDITEC E 160, with handle bar产品已添加到关注清单中
off-white RAL 9002
160x200x124mm
Customising options for B2116707
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- 技术数据
-
图纸或资料
- 采购有关数据
宽度
142 mm
高度
55 mm
厚度
5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 104 KB
- AutoCAD DWG-File 361 KB
- AutoCAD DXF-File 1,039 KB
Weight/1 part
26.2 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
特制机盒:我们可根据您的需求，对我们的机盒和旋钮进行精加工和精款加工。您将得到一个精工完毕可直接安装的机盒，仅需添入电子元件即可使用。 您可以在此处找到以下产品类型款式 B2116707请务必索取报价！
