Sealing M (bottom part - front design)
For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).
Supply1 sealing
添加到购物车内
B4044407
Cover M
Assembly unit: suitable for bottom part vers. I. For protecting the electronics. Integrated screw pillars for PCB fixing. Recessed operating area for protecting the membrane keyboard. Fixing from the rear.
Supply 1 cover, assembly kit
B4044407
Cover M产品已添加到关注清单中
off-white RAL 9002
225x165x14mm
B4044707
Bottom part M flat, version I
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version Suitable for mounting cover or aluminium front panel (sep. article)
Supply 1 bottom part flat
B4044707
Bottom part M flat, version I产品已添加到关注清单中
off-white RAL 9002
225x165x25.5mm
B4044717
Bottom part M flat, version II
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version Suitable for mounting ABS front panel or glass panel (sep. article)
Supply 1 bottom part flat
B4044717
Bottom part M flat, version II产品已添加到关注清单中
off-white RAL 9002
225x165x25.5mm
B4044757
Bottom part M high, version I
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version Suitable for mounting cover or aluminium front panel (sep. article)
Supply 1 bottom part high
B4044757
Bottom part M high, version I产品已添加到关注清单中
off-white RAL 9002
225x165x35.5mm
B4044767
Bottom part M high, version II
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version Suitable for mounting ABS front panel or glass panel (sep. article)
Supply 1 bottom part high
B4044767
Bottom part M high, version II产品已添加到关注清单中
off-white RAL 9002
225x165x35.5mm
B4044827

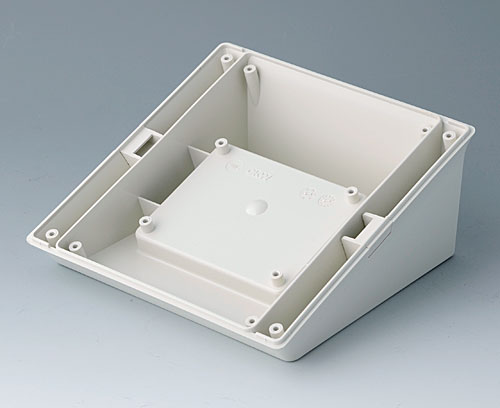

Base M - desk-top -
Assembly unit: for case combinations with open bottom part vers. I or II. Case screwed to base. Assembly screws hidden from view. Ergonomically designed for operating and reading off. Assembly of the operating panel vertically or horizontally, depending on the application, see assembly instruction.
Supply 1 base, 2 covers, assembly kit
B4044827
Base M - desk-top -产品已添加到关注清单中
off-white RAL 9002
153x153x63mm
B4044837
Base M - charging station, case deposit mobile
Assembly unit: Suitable for case with battery compartment or bottom panel with handle recess. Ergonomically designed for desktop and for wall mounting favorable. Can be equipped either for installing the case for desktop applications or with a snap-in mechanism for secure wall mounted and desktop applications. Case position vertically or horizontally, depending on the application - see assembly instruction. Contacts for simple data and charging current transfer as accessories.
Supply 1 base, 1 base cover, 2 covers, assembly kit
B4044837
Base M - charging station, case deposit mobile产品已添加到关注清单中
off-white RAL 9002
153x153x70mm
B4044847

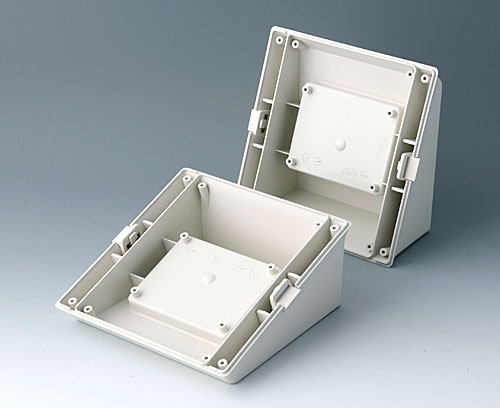

Base M - desk-top/wall -
Assembly unit: for case combinations with bottom panel and snap-in strips. Case snaps into the base in vertical or horizontal position, depending on the application - see assembly instruction. If required, unit can be secured by latch lock. Ergonomically designed for operating and reading off. Direct wall mounting.
Supply 1 base, 2 clips, assembly kit
B4044847
Base M - desk-top/wall -产品已添加到关注清单中
off-white RAL 9002
153x153x63mm
B4144047
Battery compartment and lid M, 5 x AA
Assembly unit: suitable for bottom part vers. I and II, screw fixing. Battery clips for 5 x AA, tin-plated. Protection against incorrect polarity as well as anti-rotation device.
Supply 1 battery compartment and lid, assembly kit
B4144047
Battery compartment and lid M, 5 x AA产品已添加到关注清单中
off-white RAL 9002
B4144106
Front panel M
Assembly unit: suitable for bottom part vers. I. For mounting operating elements of all kinds.
Supply 1 front panel, assembly kit
B4144106
Front panel M产品已添加到关注清单中
matt anodised
221.5x161.5x2mm
B4144107
Front panel M
Assembly unit: suitable for bottom part vers. II. For mounting operating elements of all kinds.
Supply 1 front panel, assembly kit
B4144107
Front panel M产品已添加到关注清单中
off-white RAL 9002
225.6x165.6x15.5mm
B4144167
Bottom panel with handle recess M
Assembly unit: suitable for bottom part vers. I and II, screw fixing.
Supply 1 bottom panel, assembly kit
B4144167
Bottom panel with handle recess M产品已添加到关注清单中
off-white RAL 9002
B4144203
Glass panel M
Assembly unit: suitable for bottom part vers. II. Front design without printing. Various media and environmental parameters affect the adhesion of the adhesive foil. Please check before use if it is suitable for your application.
Version Safety glass with anti-reflex coating, high scratch-resistance, very easy to clean
Supply 1 glass panel incl. mounting frame and adhesive foil
B4144203
Glass panel M产品已添加到关注清单中
clear
225.6x165.6x17.7mm
B4144247
Wall suspension element M
Hidden wall mounting. While closed, the entire case (version with battery compartment or base plate with handle recess) can be mounted on the wall, fixed and also removed again by means of the wall suspension element.
Supply 1 wall suspension element with snap-in mechanism
B4144247
Wall suspension element M产品已添加到关注清单中
off-white RAL 9002
B4144257

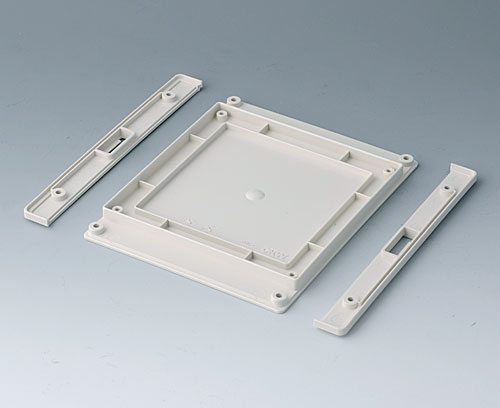

Bottom panel with snap-in strips M
Assembly unit: suitable for bottom part vers. I and II, screw fixing.
Supply 1 bottom panel, 2 snap-in strips, assembly kit
B4144257
Bottom panel with snap-in strips M产品已添加到关注清单中
off-white RAL 9002
B4144587

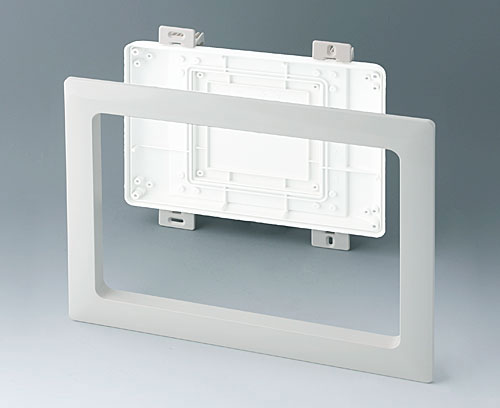

Installation assembly kit M, flat
For the installation of the INTERFACE-TERMINAL enclosure in walls, in front panels, machines or systems. Can only be used in conjunction with bottom panel or open rear side of enclosure. Easy installation: Mount holders on the fully assembled enclosure. Place the enclosure with holders in the wall/front panel and align it. Mark and drill mounting holes. Then bolt the enclosure with the holders from the front and push on the design frame.
Version Holders matches bottom part, flat
Supply 4 holders, assembly kit, design frame
B4144587
Installation assembly kit M, flat产品已添加到关注清单中
off-white RAL 9002
272x218mm
B4144597

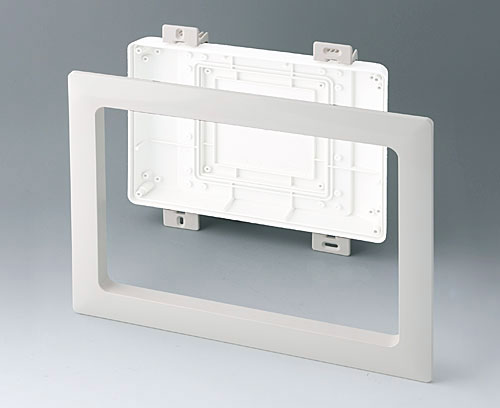

Installation assembly kit M, high
For the installation of the INTERFACE-TERMINAL enclosure in walls, in front panels, machines or systems. Can only be used in conjunction with bottom panel or open rear side of enclosure. Easy installation: Mount holders on the fully assembled enclosure. Place the enclosure with holders in the wall/front panel and align it. Mark and drill mounting holes. Then bolt the enclosure with the holders from the front and push on the design frame.
Version Holders matches bottom part, high
Supply 4 holders, assembly kit, design frame
B4144597
Installation assembly kit M, high产品已添加到关注清单中
off-white RAL 9002
272x218mm
