A9060017 HAND-HELD-BOX P, Vers. II

A9060017

HAND-HELD-BOX P, Vers. II

Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery (PP3) or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs.

Version

Without lateral recess

Supply

Top and base part, battery compartment lid, assembly kit

  • 适配系统部件
  • 按客户要求修改加工

“电池” 配件

A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

关闭

A9160003

Plug-in contact, 1 x 9 V (PP3)
产品已添加到关注清单中

“保护等级” 附件

A9160002 Cover plug

A9160002

Cover plug For covering the bottom's screw holes.

Supply 1 cover plug

关闭

A9160002

Cover plug
产品已添加到关注清单中
black RAL 9005
A9160004 Display window P

A9160004

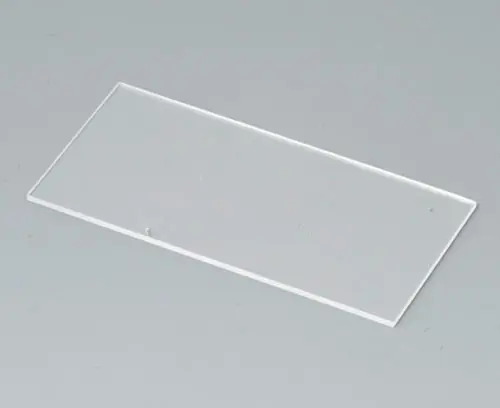

Display window P The display window protects the installed display. For glueing the display window there's an adhesive foil (A9160006) available.

Supply 1 display window

关闭

A9160004

Display window P
产品已添加到关注清单中
Acrylglas
transparent
60x30x1mm
A9160006 Adhesive foil P/M

A9160006

Adhesive foil P/M Fastening the display window (A9060004, A9060005).

Supply 1 adhesive foil

关闭

A9160006

Adhesive foil P/M
产品已添加到关注清单中

“手提” 盒附件

A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

关闭

A9100002

Ring eyelet
产品已添加到关注清单中
PA 6
volcano

“螺钉” 附件

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

关闭

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
产品已添加到关注清单中
A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

关闭

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
产品已添加到关注清单中

附件

A9210290 Anti-slide feet 9.5 x 3.8 mm

A9210290

Anti-slide feet 9.5 x 3.8 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

关闭

A9210290

Anti-slide feet 9.5 x 3.8 mm
产品已添加到关注清单中
transparent
A9250807 Tilt foot bar

A9250807

Tilt foot bar Facilitates ergonomical reading angles, side lenght 81 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

关闭

A9250807

Tilt foot bar
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
A9250817 Tilt foot bar

A9250817

Tilt foot bar Facilitates ergonomical reading angles, side lenght 43 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

关闭

A9250817

Tilt foot bar
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002

Customising options for A9060017

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
颜色
off-white RAL 9002
Length
145 mm
Width
80 mm
Height
36.5 mm
电路板长度,下盒
106 mm
电路板宽度,下盒
71 mm
电路板长度,上盒
106 mm
电路板宽度,上盒
72 mm
Display length, base
50 mm
Display width, base
20 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
87 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
