DIN 标准导轨接线盒
C3207107
EASYTEC 125

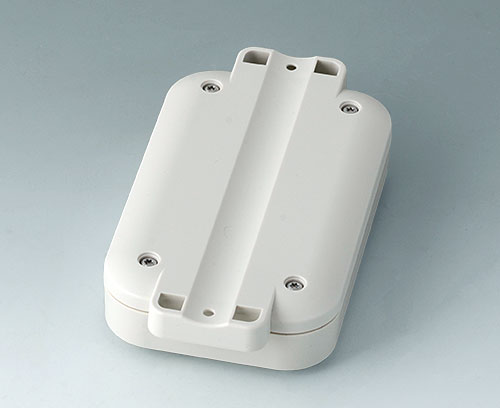

2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.
VersionTop part flat
SupplyTop and bottom part, assembly kit
添加到购物车内
“保护等级” 附件
A9503030
Sealing 125
Application: for increasing the protection class. Bottom part with groove accepts the seal.
Supply 1 seal
A9503030
Sealing 125产品已添加到关注清单中
“螺钉” 附件
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)产品已添加到关注清单中
A0325060
Self-tapping screw 2.5 x 6 mm (T8)
Self-tapping screw with T8 Torx drive. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)产品已添加到关注清单中
Customising options for C3207107
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- 技术数据
-
图纸或资料
- 采购有关数据
材料
防护等级
Necessary accessories: sealing,
颜色
off-white RAL 9002
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
长度
147 mm
宽度
78 mm
高度
30 mm
电路板长度，下盒
113 mm
电路板宽度，下盒
68 mm
电路板长度，上盒
113 mm
电路板宽度，上盒
68 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 215 KB
- AutoCAD DWG-File 262 KB
- AutoCAD DXF-File 1,445 KB
- 3 维 PDF 版 （Acrobat Reader 软件） (产品旋转 360°，部件显示或隐藏等功能) 444 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00027966.x_t 3,453 KB
- 00027966.step 8,407 KB
- 00027966.sat 10,815 KB
Weight/1 part
94 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
