A9194007 Slot-in panel

A9194007

Slot-in panel

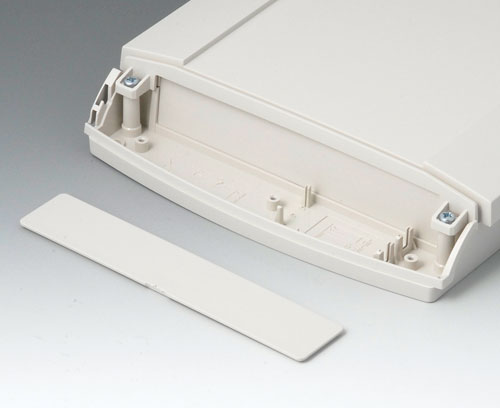

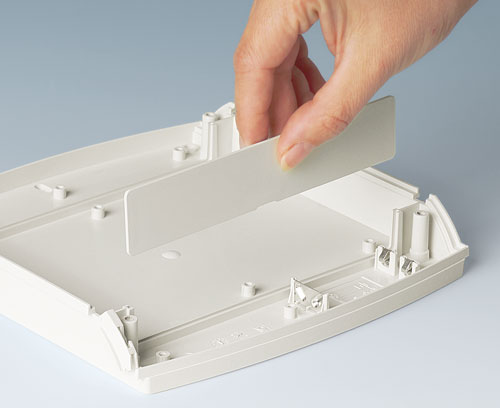

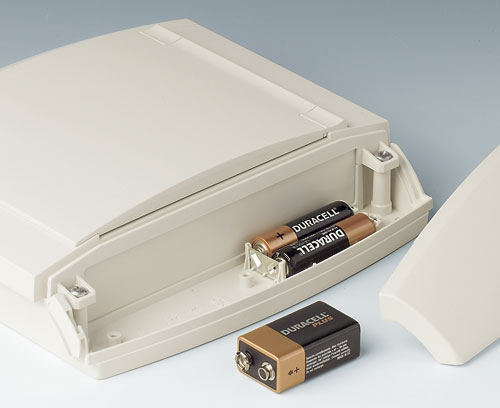

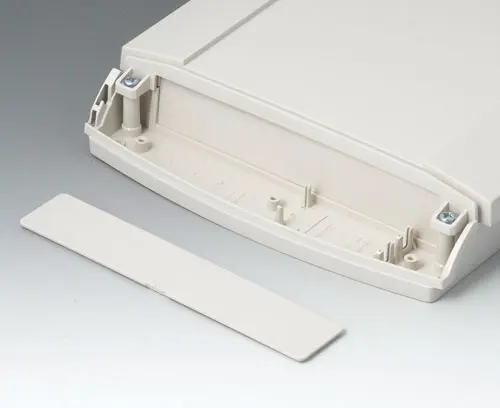

The slot-in panel can be used as interior partition or separation, for example to protect the electronics when changing batteries. Integrated guide ridges, max. 2 slot-in panels each case.

Supply

1 slot-in panel

  • 应用于
  • 按客户要求修改加工
A9093107 DIATEC S

A9093107

DIATEC S Four-part case. The bottom part can be fixed directly to the wall, the top part will be assembled by means of screws from the front. 2 side trims close the case. If required, the trims can also be locked, thus preventing unauthorised access. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCBs in bottom and top part. Integrated supports for 2 x AA / 1 x 9 V.

Supply Bottom and top part, trim left and right side incl. 2 locking elements, assembly kit

关闭

A9093107

DIATEC S
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
210x48x200mm
IP 40
A9093108 DIATEC S

A9093108

DIATEC S Four-part case. The bottom part can be fixed directly to the wall, the top part will be assembled by means of screws from the front. 2 side trims close the case. If required, the trims can also be locked, thus preventing unauthorised access. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCBs in bottom and top part. Integrated supports for 2 x AA / 1 x 9 V.

Supply Bottom and top part, trim left and right side incl. 2 locking elements, assembly kit

关闭

A9093108

DIATEC S
产品已添加到关注清单中
ABS (UL 94 HB)
lava
210x48x200mm
IP 40
A9094107 DIATEC M

A9094107

DIATEC M Four-part case. The bottom part can be fixed directly to the wall, the top part will be assembled by means of screws from the front. 2 side trims close the case. If required, the trims can also be locked, thus preventing unauthorised access. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCBs in bottom and top part. Integrated supports for 2 x AA / 1 x 9 V.

Supply Bottom and top part, trim left and right side incl. 2 locking elements, assembly kit

关闭

A9094107

DIATEC M
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
270x48x200mm
IP 40
A9094108 DIATEC M

A9094108

DIATEC M Four-part case. The bottom part can be fixed directly to the wall, the top part will be assembled by means of screws from the front. 2 side trims close the case. If required, the trims can also be locked, thus preventing unauthorised access. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCBs in bottom and top part. Integrated supports for 2 x AA / 1 x 9 V.

Supply Bottom and top part, trim left and right side incl. 2 locking elements, assembly kit

关闭

A9094108

DIATEC M
产品已添加到关注清单中
ABS (UL 94 HB)
lava
270x48x200mm
IP 40
A9095107 DIATEC L

A9095107

DIATEC L Four-part case. The bottom part can be fixed directly to the wall, the top part will be assembled by means of screws from the front. 2 side trims close the case. If required, the trims can also be locked, thus preventing unauthorised access. Recessed operating area to protect the membrane keyboard. Fastening pillars in the bottom and top part. Integrated battery compartment for 2 x AA / 1 x 9 V. If required the hinged lid S can be mounted either on the right or on the left to partially cover the dialog area (on one side).

Supply Bottom and top part, trim left and right side incl. 2 locking elements, assembly kit

关闭

A9095107

DIATEC L
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
330x48x200mm
IP 40
A9095108 DIATEC L

A9095108

DIATEC L Four-part case. The bottom part can be fixed directly to the wall, the top part will be assembled by means of screws from the front. 2 side trims close the case. If required, the trims can also be locked, thus preventing unauthorised access. Recessed operating area to protect the membrane keyboard. Fastening pillars in the bottom and top part. Integrated supports for 2 x AA / 1 x 9 V. If required the hinged lid S can be mounted either on the right or on the left to partially cover the dialog area (on one side).

Supply Bottom and top part, trim left and right side incl. 2 locking elements, assembly kit

关闭

A9095108

DIATEC L
产品已添加到关注清单中
ABS (UL 94 HB)
lava
330x48x200mm
IP 40

Customising options for A9194007

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 采购有关数据
颜色
off-white RAL 9002
Length
156 mm
Width
30 mm
Thickness
3 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
14 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
