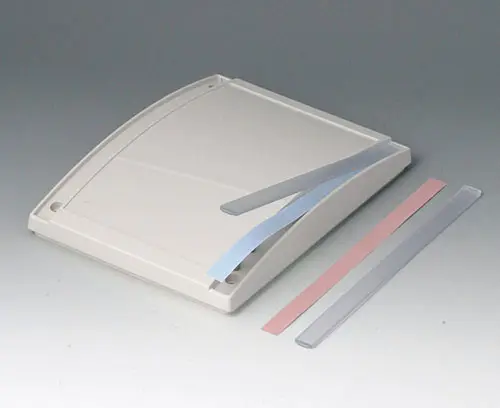

B4113671 Cover strip S / SL

B4113671

Cover strip S / SL

For covering the area with the screws when using the convex cover. Simply snap-in. Colour coding possible, e.g. by inserting an individual coloured paper print. For the complete assembly there are 2 cover strips necessary.

Supply

1 cover strip

  • 应用于
  • 按客户要求修改加工

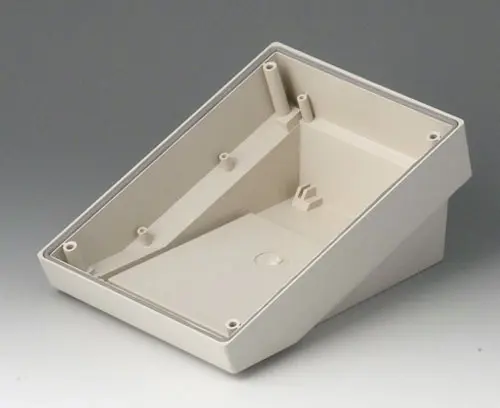

B4013117 DATEC-TERMINAL S

B4013117

DATEC-TERMINAL S Basic case with ergonomically inclined operating area can be used with profile plate, cover or front panel. Suitable to accommodate Eurocards 100 x 160 mm.

Supply 1 basic housing, 4 screws, 4 non slip feet, 1 sealing

关闭

B4013117

DATEC-TERMINAL S
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
130x180x86mm
IP 54 opt.

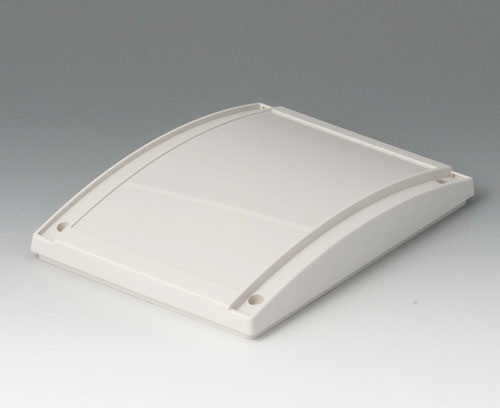

B4013637 Cover S, convex

B4013637

Cover S, convex Suitable for DATEC-TERMINAL S. For protecting the electronics. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing from the front by 4 screws.

Supply 1 cover, assembly kit

关闭

B4013637

Cover S, convex
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
130x180x28mm

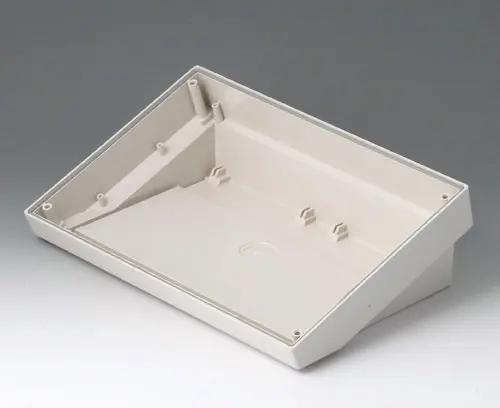

B4026117 DATEC-TERMINAL SL

B4026117

DATEC-TERMINAL SL Basic case with large operating area. Ergonomically inclined operating area can be used with profile plate, cover or front panel. Suitable to accommodate double Eurocards.

Supply 1 basic housing, 4 screws, 4 non slip feet, 1 sealing

关闭

B4026117

DATEC-TERMINAL SL
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
264x180x86mm
IP 54 opt.

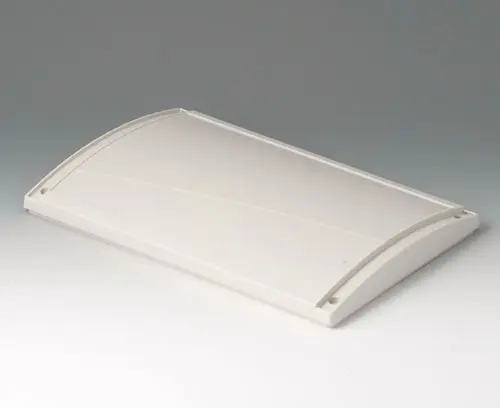

B4026637 Cover SL, convex

B4026637

Cover SL, convex Suitable for DATEC-TERMINAL SL. For protecting the electronics. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing from the front by 4 screws.

Supply 1 cover, assembly kit

关闭

B4026637

Cover SL, convex
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
263x180x28mm

Customising options for B4113671

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 采购有关数据
颜色
transparent
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
1 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
