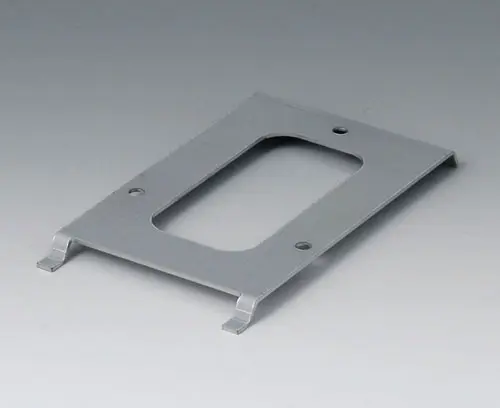

B4113147 Wall suspension element S

B4113147

Wall suspension element S

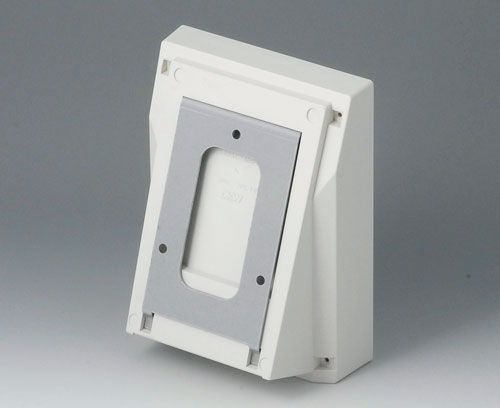

Wall suspension element S for easy and secure fixing of the unit to a wall. The case is screwed down with the wall suspension element.

Supply

1 wall suspension element, 2 screws

  • 应用于
  • 按客户要求修改加工
B4013117 DATEC-TERMINAL S

B4013117

DATEC-TERMINAL S Basic case with ergonomically inclined operating area can be used with profile plate, cover or front panel. Suitable to accommodate Eurocards 100 x 160 mm.

Supply 1 basic housing, 4 screws, 4 non slip feet, 1 sealing

关闭

B4013117

DATEC-TERMINAL S
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
130x180x86mm
IP 54 opt.

Customising options for B4113147

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
材料
颜色
galvanized
Width
79 mm
Height
137 mm
Depth
8 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
88 g
Customs tariff number
(OKW product)
73269098
Country of manufacture
Germany
