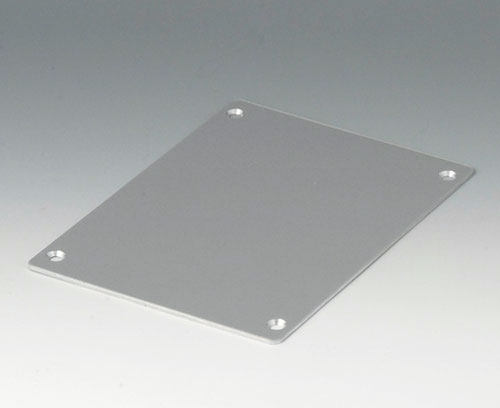

B4113106 Front panel S

B4113106

Front panel S

Front panel S for the mounting of all kinds of operating elements.

Supply

1 front panel, 4 screws diameter 4.0 mm

  • 应用于
  • 按客户要求修改加工

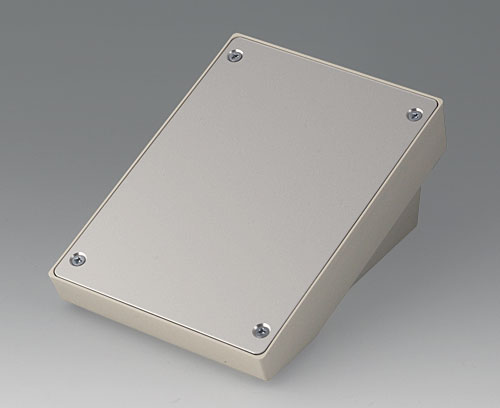

B4013117 DATEC-TERMINAL S

B4013117

DATEC-TERMINAL S Basic case with ergonomically inclined operating area can be used with profile plate, cover or front panel. Suitable to accommodate Eurocards 100 x 160 mm.

Supply 1 basic housing, 4 screws, 4 non slip feet, 1 sealing

关闭

B4013117

DATEC-TERMINAL S
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
130x180x86mm
IP 54 opt.

Customising options for B4113106

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
颜色
matt anodised
Width
125.9 mm
Depth
176 mm
Height
2 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
122 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Germany
