A9077257

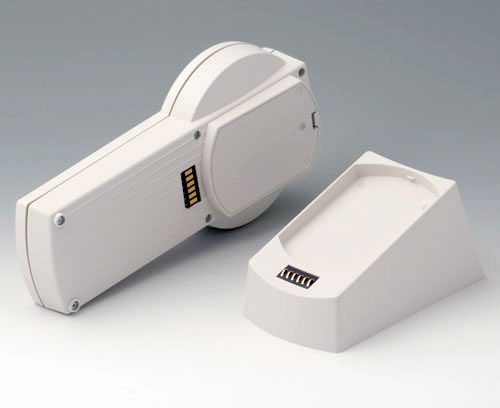

SET: DATEC-CONTROL S, Vers. II, station..

Enclosure-kit: DATEC-CONTROL S, version II with machining for the locator of the 6-pin contacts and secure connection, 1 base S, 1 male contact (base) and 1 female contact (enclosure).

Supply

Bottom and top part with display cutout, battery compartment lid, base, male contact, female contact, assembly kits

2D PDF 视图
3 维 PDF 版视图
3D/2D 图纸资料下载

请制作 PDF 数据表用于 A9077257

请选择产品信息以输入数据表。

添加到购物车内 添加到购物车内 添加到购物车内
产品已添加到关注清单中
继续查询或 开启您的购物车

“电池” 配件

A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

A9160003

Plug-in contact, 1 x 9 V (PP3)
产品已添加到关注清单中
A9174006 Set of battery clips, 1 x 9 V

A9174006

Set of battery clips, 1 x 9 V For contacting the battery.

Supply 2 single contacts

A9174006

Set of battery clips, 1 x 9 V
产品已添加到关注清单中

tin-plated
A9177310 Battery compartment, 1 x 9 V

A9177310

Battery compartment, 1 x 9 V Application: for 1 x 9 V flat battery (PP3).

Supply 1 battery compartment, assembly kit

A9177310

Battery compartment, 1 x 9 V
产品已添加到关注清单中
A9345217 Set of battery compartment, 4 x AA

A9345217

Set of battery compartment, 4 x AA For 4 x 1.5 V mignon-cells (AA). Complies with DIN EN 60601 (short circuit caused by incorrect insertion of batteries impossible).

Supply 1 battery compartment, battery clips nickel-plated, assembly kit

A9345217

Set of battery compartment, 4 x AA
产品已添加到关注清单中

off-white RAL 9002

“保护等级” 附件

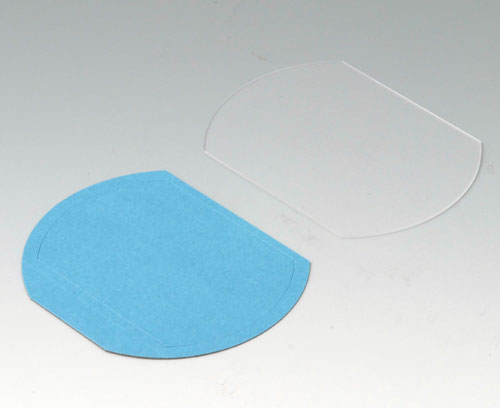

A9177001 Display window S

A9177001

Display window S The display window protects the installed display and achieves protection class within the display area. Without printing.

Supply 1 display window, 1 adhesive foil

A9177001

Display window S
产品已添加到关注清单中

clear
A9177006 Sealing kit S

A9177006

Sealing kit S Application: for increasing the protection class, of DATEC-CONTROL S.

Supply 1 sealing kit

A9177006

Sealing kit S
产品已添加到关注清单中

Customising options for A9077257

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

材料

防护等级

Necessary accessories: sealing kit, display window (set with adhesive foil) • Attention: additional proofing of the contacts necessary
颜色
off-white RAL 9002
标准根据
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
长度
228 mm
宽度
117 mm
电路板长度，下盒
214 mm
电路板宽度，下盒
62 mm
电路板长度，上盒
213 mm
电路板宽度，上盒
60 mm
Display length, base
54 mm
Display width, base
79 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
308 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
