A9105628 Holder S

A9105628

Holder S

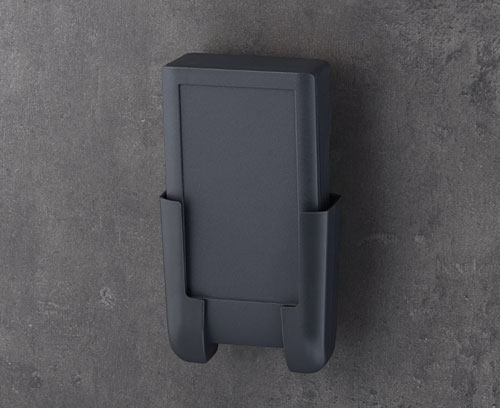

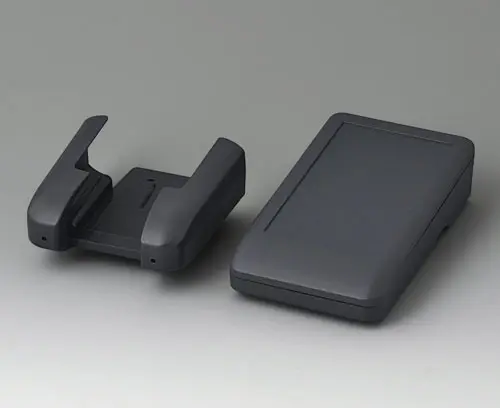

Special holder for DATEC-COMPACT S for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply

1 holder

  • 应用于
  • 按客户要求修改加工
A9005108 DATEC-COMPACT S

A9005108

DATEC-COMPACT S 2-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version Without battery compartment

Supply Top and bottom part, assembly kit

关闭

A9005108

DATEC-COMPACT S
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
lava
136x74x32mm
IP 65
A9005118 DATEC-COMPACT S

A9005118

DATEC-COMPACT S 2-part compact hand-held enclosure with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version Without battery compartment

Supply Top and bottom part, assembly kit

关闭

A9005118

DATEC-COMPACT S
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
lava
136x74x32mm
IP 41
A9005208 DATEC-COMPACT S

A9005208

DATEC-COMPACT S 3-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AAA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version With battery compartment 3 x AAA

Supply Top and bottom part, battery compartment lid, assembly kit

关闭

A9005208

DATEC-COMPACT S
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
lava
136x74x32mm
IP 65
A9005218 DATEC-COMPACT S

A9005218

DATEC-COMPACT S 3-part compact hand-held enclosure with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AAA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version With battery compartment 3 x AAA

Supply Top and bottom part, battery compartment lid, assembly kit

关闭

A9005218

DATEC-COMPACT S
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
lava
136x74x32mm
IP 41

Customising options for A9105628

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
42 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
