A9007108
DATEC-COMPACT L

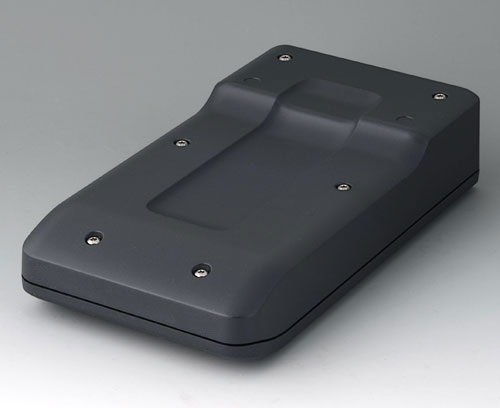

2-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.
VersionWithout battery compartment
SupplyTop and bottom part, assembly kit
“底座” 配件
A9107508
Station L
Base for the practical storage of DATEC-COMPACT L, with and without battery compartment. Ideal for charging mobile devices and transmitting data. Domes for mounting PCBs and components. Recesses for spring contacts (accessories).
Supply Station with bottom panel, rubber feet, assembly kit
关闭A9107508
Station L产品已添加到关注清单中
lava
A9193031
Spring contact
Spring contact, round with ballpoint tip and collar for transmitting charging current. Drilled hole necessary, then self-locking. Further contact established by means of a soldered stranded wire on the fixed outer surface or PCB mounting. Load-carrying capacity up to 15 A. 1.5 mm stroke, 1,7 N. Extremely low contact resistance.
Supply 1 spring contact
关闭A9193031
Spring contact产品已添加到关注清单中
“挂墙支架” 配件
A9107628
Holder L
Special holder for DATEC-COMPACT L for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.
Supply 1 holder
关闭A9107628
Holder L产品已添加到关注清单中
lava
“螺钉” 附件
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
关闭A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)产品已添加到关注清单中
A0325060
Self-tapping screw 2.5 x 6 mm (T8)
Self-tapping screw with T8 Torx drive. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
关闭A0325060
Self-tapping screw 2.5 x 6 mm (T8)产品已添加到关注清单中
附件
A9193030
Contact pin
Contact pin, round with flat flange for transmitting charging current. Stepped bore necessary, then self-locking. Further contact established by means of a soldered stranded wire in the internal drilled hole. Load-carrying capacity up to 15 A. Extremely low contact resistance.
Supply 1 contact pin
关闭A9193030
Contact pin产品已添加到关注清单中
A9207150
Anti-slide feet 6.5 x 2 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply 2 rubber feet
关闭A9207150
Anti-slide feet 6.5 x 2 mm产品已添加到关注清单中
- 技术数据
-
图纸或资料
- 应用示例
- 采购有关数据
防护等级
颜色
lava
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
长度
206 mm
宽度
110 mm
高度
47 mm
电路板长度，下盒
163 mm
电路板宽度，下盒
98 mm
电路板长度，上盒
165 mm
电路板宽度，上盒
100 mm
Keypad length
157.3 mm
Keypad width
83.3 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 318 KB
- AutoCAD DWG-File 690 KB
- AutoCAD DXF-File 2,567 KB
- 3 维 PDF 版 （Acrobat Reader 软件） (产品旋转 360°，部件显示或隐藏等功能) 500 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00017178.x_t 6,329 KB
- 00017178.step 12,868 KB
- 00017178.sat 14,115 KB
Weight/1 part
235 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
