B6121111 Front panel

B6121111

Front panel

Front panel for DIN-MODULAR CASE 72 x 36.

Supply

1 front panel

  • 应用于
  • 按客户要求修改加工

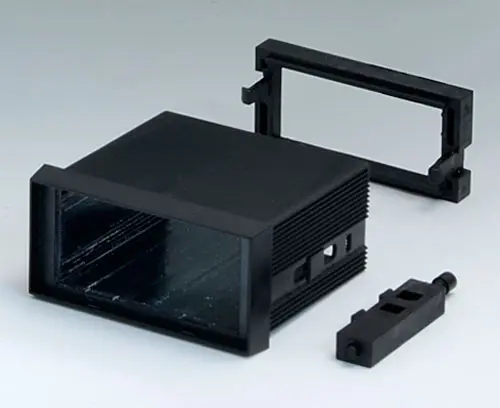

B6021011 DIN-MODULAR CASE TYPE A

B6021011

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

关闭

B6021011

DIN-MODULAR CASE TYPE A
产品已添加到关注清单中
PPO (UL 94 V-0)
black RAL 9005
72x36x57mm

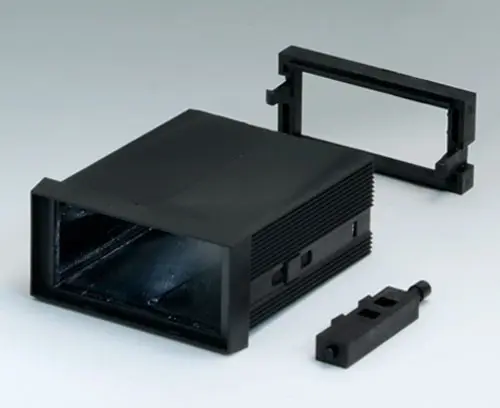

B6021021 DIN-MODULAR CASE TYPE A

B6021021

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61 554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

关闭

B6021021

DIN-MODULAR CASE TYPE A
产品已添加到关注清单中
PPO (UL 94 V-0)
black RAL 9005
72x36x75mm

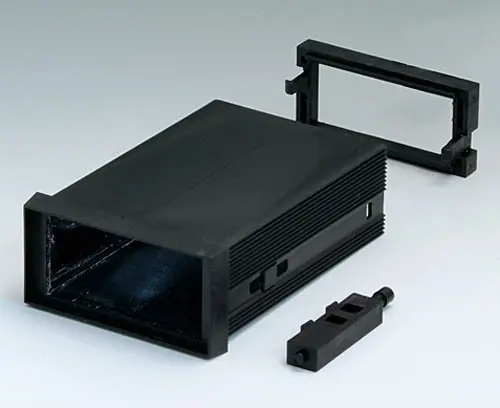

B6021031 DIN-MODULAR CASE TYPE A

B6021031

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

关闭

B6021031

DIN-MODULAR CASE TYPE A
产品已添加到关注清单中
PPO (UL 94 V-0)
black RAL 9005
72x36x100mm

Customising options for B6121111

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 采购有关数据
颜色
matt anodised
Width
67.7 mm
Height
31.6 mm
Thickness
1.5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
5 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Italy
