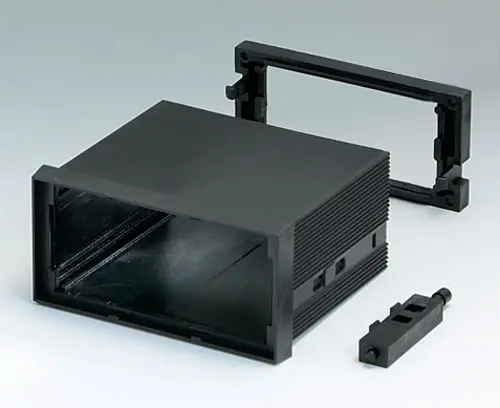

B6032021

DIN-MODULAR CASE TYPE A, Vers. I

Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Corresponding to DIN IEC 61554.

Version

With 2 guide ridges for mounting PCBs

Supply

1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

2D PDF 视图
3 维 PDF 版视图
3D/2D 图纸资料下载

请制作 PDF 数据表用于 B6032021

请选择产品信息以输入数据表。

添加到购物车内 添加到购物车内 添加到购物车内
产品已添加到关注清单中
继续查询或 开启您的购物车

需加附件使产品完整

B6132111 Front panel

B6132111

Front panel Front panel for DIN-MODULAR CASE 96 x 48.

Supply 1 front panel

B6132111

Front panel
产品已添加到关注清单中

matt anodised
91.5x43.4x1.5mm
B6132112 Rear panel

B6132112

Rear panel Rear panel for DIN-MODULAR CASE 96 x 48.

Supply 1 rear panel

B6132112

Rear panel
产品已添加到关注清单中

matt anodised
73.5x39.6x1mm
B6132221 Front panel

B6132221

Front panel Front panel for DIN-MODULAR CASE 96 x 48.

Supply 1 front panel

B6132221

Front panel
产品已添加到关注清单中

black RAL 9005
91.6x43.5x2mm
B6132222 Rear panel

B6132222

Rear panel Rear panel for DIN-MODULAR CASE 96 x 48.

Supply 1 rear panel

B6132222

Rear panel
产品已添加到关注清单中

black RAL 9005
73.6x39.75x1.7mm
B6132331 Front panel

B6132331

Front panel Front panel for DIN-MODULAR CASE 96 x 48.

Supply 1 front panel

B6132331

Front panel
产品已添加到关注清单中

transparent
91.5x43.4x2mm
B6132341 Front panel

B6132341

Front panel Front panel for DIN-MODULAR CASE 96 x 48.

Supply 1 front panel

B6132341

Front panel
产品已添加到关注清单中

red transparent
91.5x43.4x2mm

“保护等级” 附件

B6132533 Protection cover

B6132533

Protection cover Protection cover for DIN-MODULAR CASE 96 x 48.

Supply 1 protection cover

B6132533

Protection cover
产品已添加到关注清单中

transparent

Customising options for B6032021

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

材料

颜色
black RAL 9005
标准根据
RoHS compliant
REACH compliant
DIN IEC 61554
宽度
96 mm
高度
48 mm
深度
75 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
67 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Italy

特制机盒:我们可根据您的需求，对我们的机盒和旋钮进行精加工和精款加工。您将得到一个精工完毕可直接安装的机盒，仅需添入电子元件即可使用。 您可以在此处找到以下产品类型款式 B6032021请务必索取报价！
