C3604707 COMMUNITEC M, basic housing
Scroll

C3604707

COMMUNITEC M, basic housing

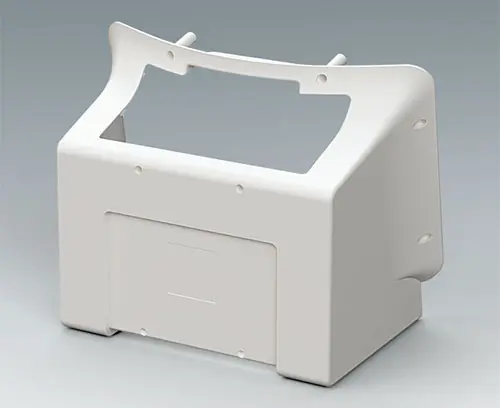

Basic housing with plenty of space for large-volume electronic assemblies. Large side areas are easy to machine, for example for connector interfaces, ventilation slots to increase heat dissipation, and more. The rear of the housing includes a recessed area to protect installed sockets, plugs, and power supply cables; an additional recess is provided for product labels. Integrated fastening pillars are provided for PCBs or mounting plates.

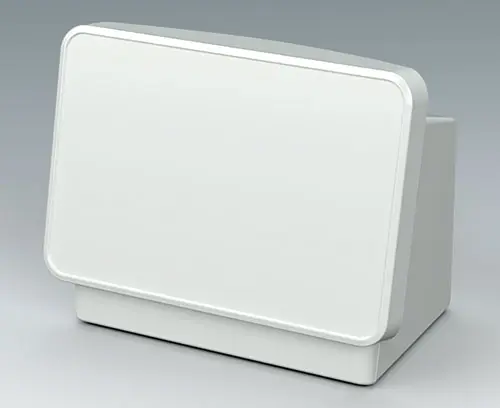

The ergonomically inclined design makes it practical for reading and operation. Suitable for display sizes up to 14" (35 cm). Non-slip tabletop housing thanks to self adhesive rubber feet.

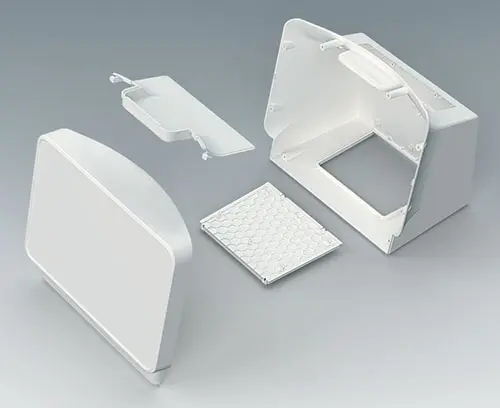

Individual housing components are available as separate items: operating panel M, bottom panel, and handle recess panel (see system components for completion). Easy to assemble and particularly service-friendly.

Supply

1 basic housing

2D PDF 视图
3 维 PDF 版视图
3D/2D 图纸资料下载 制作 PDF 数据表

请制作 PDF 数据表用于 C3604707

请选择产品信息以输入数据表。

关闭
添加到购物车内 添加到购物车内 添加到购物车内
产品已添加到关注清单中
继续查询或 开启您的购物车
  • 适配系统部件
  • 按客户要求修改加工
  • 录像

系统组件使产品完整

C3602601 Handle recess panel

C3602601

Handle recess panel

Order with COMMUNITEC S and M basic housings. The handle recess panel is inserted into the basic housing from the front and securely screwed into place.

The integrated handle and carrying function allow the tabletop devices to be transported comfortably over short distances, increasing flexibility of use.

Supply 1 handle recess panel

关闭

C3602601

Handle recess panel
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
traffic grey A RAL 7042
C3602607 Handle recess panel

C3602607

Handle recess panel

Order with COMMUNITEC S and M basic housings. The handle recess panel is inserted into the basic housing from the front and securely screwed into place.

The integrated handle and carrying function allow the tabletop devices to be transported comfortably over short distances, increasing flexibility of use.

Supply 1 handle recess panel

关闭

C3602607

Handle recess panel
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
traffic white RAL 9016
C3602608 Handle recess panel

C3602608

Handle recess panel

Order with COMMUNITEC S and M basic housings. The handle recess panel is inserted into the basic housing from the front and securely screwed into place.

The integrated handle and carrying function allow the tabletop devices to be transported comfortably over short distances, increasing flexibility of use.

Supply 1 handle recess panel

关闭

C3602608

Handle recess panel
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
anthracite grey RAL 7016
C3602807 Bottom panel

C3602807

Bottom panel

Order with COMMUNITEC S and M basic housings. Robust design with a honeycomb pattern ensures a high degree of rigidity and adequate safety for high-quality functional components. Integrated fastening pillars are provided for PCBs or mounting plates.

Assembly/Installation:
Efficient assembly of the bottom panel can be carried out outside the housing. The bottom panel, together with the electronic unit, can then be mounted into the COMMUNITEC basic housing (ordered separately). Installation and servicing are extremely easy thanks to excellent access to pre-assembled components - either from above through the opening for the “handle recess panel” and/or from the front.

Supply 1 bottom panel

关闭

C3602807

Bottom panel
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
traffic white RAL 9016
188x150x5mm
C3602808 Bottom panel

C3602808

Bottom panel

Order with COMMUNITEC S and M basic housings. Robust design with a honeycomb pattern ensures a high degree of rigidity and adequate safety for high-quality functional components. Integrated fastening pillars are provided for PCBs or mounting plates.

Assembly/Installation:
Efficient assembly of the bottom panel can be carried out outside the housing. The bottom panel, together with the electronic unit, can then be mounted into the COMMUNITEC basic housing (ordered separately). Installation and servicing are extremely easy thanks to excellent access to pre-assembled components - either from above through the opening for the “handle recess panel” and/or from the front.

Supply 1 bottom panel

关闭

C3602808

Bottom panel
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
anthracite grey RAL 7016
188x150x5mm
C3604407 Operating panel M

C3604407

Operating panel M

Order with COMMUNITEC M basic housing. Features a recessed area for protecting membrane keypads and integrating large-format displays up to 14" (35 cm), with a flat area below for front-mounted control elements and connectors. Includes integrated fastening pillars for PCBs or mounting plates. The operating panel is installed from the rear.

Supply 1 operating panel, assembly kit incl. 4 non-slip feet

关闭

C3604407

Operating panel M
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
traffic white RAL 9016
328x78x275mm
C3604408 Operating panel M

C3604408

Operating panel M

Order with COMMUNITEC M basic housing. Features a recessed area for protecting membrane keypads and integrating large-format displays up to 14" (35 cm), with a flat area below for front-mounted control elements and connectors. Includes integrated fastening pillars for PCBs or mounting plates. The operating panel is installed from the rear.

Supply 1 operating panel, assembly kit incl. 4 non-slip feet

关闭

C3604408

Operating panel M
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
anthracite grey RAL 7016
328x78x275mm

“螺钉” 附件

A0325060 Self-tapping screw 2.5 x 6 mm (T8)

A0325060

Self-tapping screw 2.5 x 6 mm (T8) Self-tapping screw with T8 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

关闭

A0325060

Self-tapping screw 2.5 x 6 mm (T8)
产品已添加到关注清单中
Stainless steel

Customising options for C3604707

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

我们需要得到您的同意之后, 才能加载视频服务（Vimeo）。

我们使用第三方服务功能，以嵌入视频内容。此服务有收集您的活动数据的可能性。请查看我司的隐私政策，并同意使用此服务功能，以观看此视频。

  • 技术数据
  • 图纸或资料
  • 应用示例
  • 采购有关数据
材料
ASA+PC (UL 94 V-0)
防护等级
IP 40
Necessary accessories: operating panel, bottom panel, and handle recess panel
颜色
traffic white RAL 9016
标准根据
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
宽度
340 mm
深度
194 mm
高度
273 mm
电路板长度，下盒
266 mm
电路板宽度，下盒
148 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
681 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
