A3031068
COM-KNOBS 31, with recess
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 1.8 Nm, function = 1.6 Nm.
1 COM-KNOB (with recess)
系统组件使产品完整

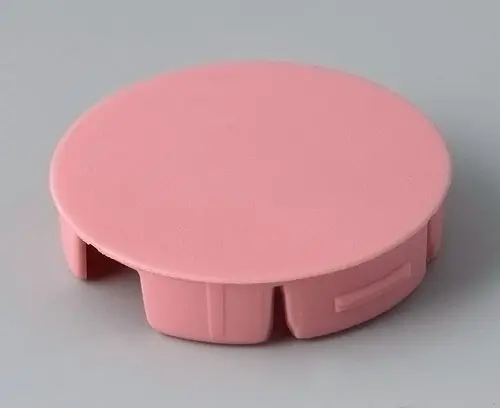

A3231003
Cover 31产品已添加到关注清单中
coral

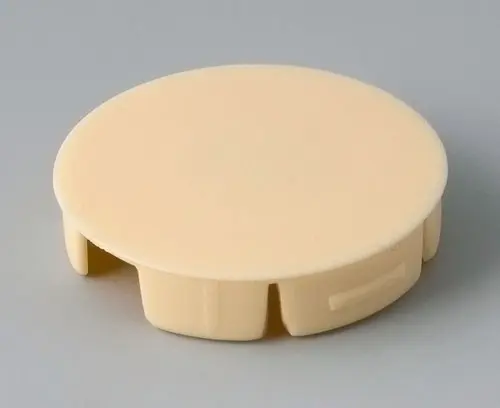

A3231004
Cover 31产品已添加到关注清单中
beach

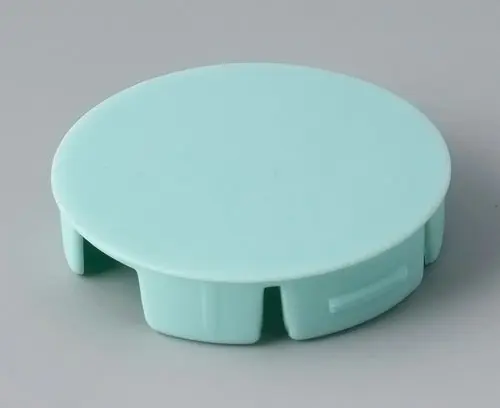

A3231005
Cover 31产品已添加到关注清单中
lagoon

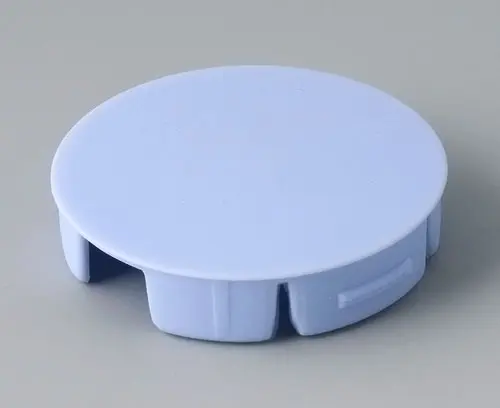

A3231006
Cover 31产品已添加到关注清单中
sky
A3231007
Cover 31产品已添加到关注清单中
mineral

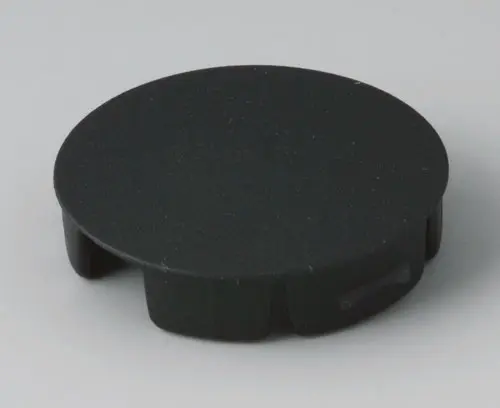

A3231009
Cover 31产品已添加到关注清单中
nero
A3231011
Cover 31
Cover with a matt chrome finish for a classy metallic look. Suitable for COM-KNOB 31. Cover simply to pin up.
Supply 1 cover
关闭A3231011
Cover 31产品已添加到关注清单中
matt chromed
A3320003
Peak 20 - 50
Suitable for COM-KNOB 20-50 with recess. Marking element simply to pin up.
Supply 1 marking element "Peak"
关闭A3320003
Peak 20 - 50产品已添加到关注清单中
coral
A3320004
Peak 20 - 50
Suitable for COM-KNOB 20-50 with recess. Marking element simply to pin up.
Supply 1 marking element "Peak"
关闭A3320004
Peak 20 - 50产品已添加到关注清单中
beach
A3320005
Peak 20 - 50
Suitable for COM-KNOB 20-50 with recess. Marking element simply to pin up.
Supply 1 marking element "Peak"
关闭A3320005
Peak 20 - 50产品已添加到关注清单中
lagoon
A3320006
Peak 20 - 50
Suitable for COM-KNOB 20-50 with recess. Marking element simply to pin up.
Supply 1 marking element "Peak"
关闭A3320006
Peak 20 - 50产品已添加到关注清单中
sky
A3320007
Peak 20 - 50
Suitable for COM-KNOB 20-50 with recess. Marking element simply to pin up.
Supply 1 marking element "Peak"
关闭A3320007
Peak 20 - 50产品已添加到关注清单中
mineral
A3320009
Peak 20 - 50
Suitable for COM-KNOB 20-50 with recess. Marking element simply to pin up.
Supply 1 marking element "Peak"
关闭A3320009
Peak 20 - 50产品已添加到关注清单中
nero
“螺钉” 附件
A6207009
Round nut M7 x 0.75
For fixing the potentiometers at front panels.
Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.
Supply 1 round nut
关闭A6207009
Round nut M7 x 0.75产品已添加到关注清单中
A6210009
Round nut M10 x 0.75
For fixing the potentiometers at front panels.
Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.
Supply 1 round nut
关闭A6210009
Round nut M10 x 0.75产品已添加到关注清单中
A6295009
Round nut 3/8"-32G
For fixing the potentiometers at front panels.
Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.
Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.
Supply 1 round nut
关闭A6295009
Round nut 3/8"-32G产品已添加到关注清单中
A6300000
Spanner
For tightening the round nut. Suitable for round nuts M7 x 0.75, M10 x 0.75 and 3/8"-32G.
Supply 1 spanner
关闭A6300000
Spanner产品已添加到关注清单中
- 技术数据
-
图纸或资料
- 应用示例
- 采购有关数据
直径
31 mm
高度
16 mm
轴孔
6 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 115 KB
- AutoCAD DWG-File 306 KB
- AutoCAD DXF-File 937 KB
- 3 维 PDF 版 （Acrobat Reader 软件） (产品旋转 360°，部件显示或隐藏等功能) 562 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00010536.x_t 755 KB
- 00010536.step 1,566 KB
- 00010536.sat 2,047 KB
Weight/1 part
10 g
Customs tariff number
(OKW product)
(OKW product)
84879090
Country of manufacture
Germany
