B2514108

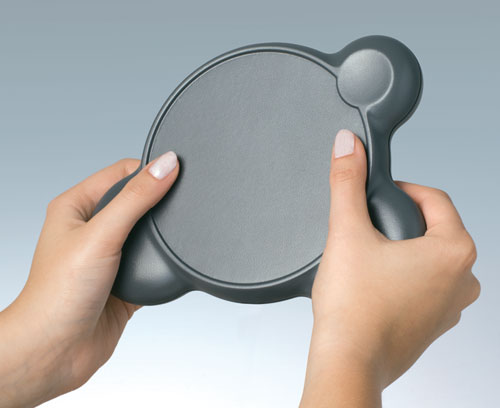

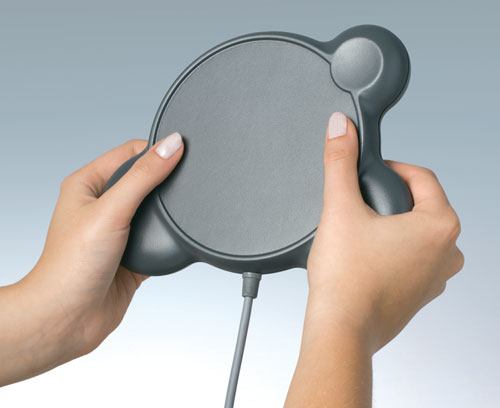

BLOB PANEL
An enclosure that can be held and operated with two hands. Two-part enclosure design with symmetrically positioned gripping areas. Recessed surface for membrane keyboards. Separate recess for special functions. Attachment domes for a PCB in the top part.
SupplyTop and bottom parts, assembly kit
“电池” 配件
A9193033
Supply Polarity reversal protection device
A9193033
Polarity reversal protection device, positive terminal AAoff-white RAL 9002
A9193034
Supply Polarity reversal protection device
A9193034
Polarity reversal protection device, positive terminal AAAoff-white RAL 9002
A9193035
Supply 1 battery clip
A9193035
Battery clip, AAnickel-plated
A9193036
Supply 1 battery clip
A9193036
Battery clip, AAAnickel-plated
A9193037
Version Horizontal
Supply 1 button cell holder
A9193037
Button cell holder, Ø 20 mm
A9193038
Version Horizontal
Supply 1 button cell holder
A9193038
Button cell holder, Ø 23 mm
A9193039
Version Horizontal
Supply 1 button cell holder
A9193039
Button cell holder, Ø 12 mm
A9193040
Version Horizontal
Supply 1 button cell holder
A9193040
Button cell holder, Ø 16 mm“保护等级” 附件
B2610101
Version For cables Ø 5.0 - 5.9 mm
Supply 1 cable bushing
B2610101
Cable strain, 5.0 - 5.9volcano
B2610111
Version For cables Ø 4.2 - 5.0 mm
Supply 1 cable bushing
B2610111
Cable strain, 4.2 - 5.0volcano
B2610121
Version For cables Ø 3.4 - 4.2 mm
Supply 1 cable bushing
B2610121
Cable strain, 3.4 - 4.2volcano
B2614001
Supply 1 sealing
B2614001
Sealing Panel“螺钉” 附件
A0305031
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)Necessary accessories: sealing
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 315 KB
- AutoCAD DWG-File 542 KB
- AutoCAD DXF-File 1,873 KB
- 3 维 PDF 版 (Acrobat Reader 软件) (产品旋转 360°,部件显示或隐藏等功能) 2,791 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00013202.x_t 2,071 KB
- 00013202.step 9,764 KB
- 00013202.SAT 22,304 KB
(OKW product)
特制机盒:我们可根据您的需求,对我们的机盒和旋钮进行精加工和精款加工。您将得到一个精工完毕可直接安装的机盒,仅需添入电子元件即可使用。 您可以在此处找到以下产品类型款式 B2514108请务必索取报价!
