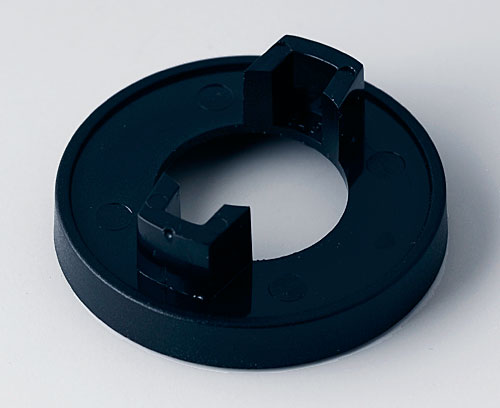

A5131000 Nut cover 31, without line

A5131000

Nut cover 31, without line

Suitable for spindle-shaped knob 31. Nut cover simply to pin up.

Supply

1 nut cover

  • 应用于
A2431060 SPINDLE-SHAPED KNOB 31, with line

A2431060

SPINDLE-SHAPED KNOB 31, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 1,8 Nm, function = 1,6 Nm.

Supply 1 spindle-shaped knob

关闭

A2431060

SPINDLE-SHAPED KNOB 31, with line
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005
31x16mm
轴孔 6mm
A2431068 SPINDLE-SHAPED KNOB 31, with line

A2431068

SPINDLE-SHAPED KNOB 31, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. Black marking.
Max. torque: assembly = 1,8 Nm, function = 1,6 Nm.

Supply 1 spindle-shaped knob

关闭

A2431068

SPINDLE-SHAPED KNOB 31, with line
产品已添加到关注清单中
ABS (UL 94 HB)
dusty grey RAL 7037
31x16mm
轴孔 6mm
  • 技术数据
  • 图纸或资料
  • 采购有关数据
颜色
black RAL 9005
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
1.6 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
