A4150100 Cover 50, with line
Scroll

A4150100

Cover 50, with line

Suitable for round knobs 50. Cover simply to pin up. White marking.

Supply

1 cover

2D PDF 视图
3D/2D 图纸资料下载 制作 PDF 数据表

请制作 PDF 数据表用于 A4150100

请选择产品信息以输入数据表。

关闭
添加到购物车内 添加到购物车内 添加到购物车内
产品已添加到关注清单中
继续查询或 开启您的购物车
  • 适配系统部件
  • 按客户要求修改加工

系统组件使产品完整

A2550060 ROUND KNOB 50, without line

A2550060

ROUND KNOB 50, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. Max. torque: assembly = 3,0 Nm, function = 1,8 Nm.

Supply 1 round knob

关闭

A2550060

ROUND KNOB 50, without line
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005
50x15mm
轴孔 6mm

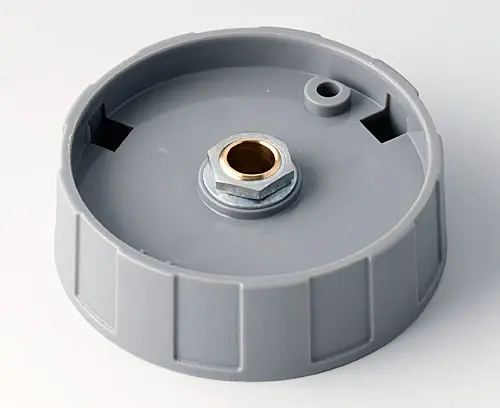

A2550068 ROUND KNOB 50, without line

A2550068

ROUND KNOB 50, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 3,0 Nm, function = 1,8 Nm.

Supply 1 round knob

关闭

A2550068

ROUND KNOB 50, without line
产品已添加到关注清单中
ABS (UL 94 HB)
dusty grey RAL 7037
50x15mm
轴孔 6mm
A2650060 ROUND KNOB 50, with line

A2650060

ROUND KNOB 50, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. White marking.
Max. torque: assembly = 3,0 Nm, function = 1,8 Nm.

Supply 1 round knob

关闭

A2650060

ROUND KNOB 50, with line
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005
50x15mm
轴孔 6mm

Customising options for A4150100

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
材料
ABS (UL 94 HB)
颜色
black RAL 9005
标准根据
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
2.6 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany

特制机盒:我们可根据您的需求，对我们的机盒和旋钮进行精加工和精款加工。您将得到一个精工完毕可直接安装的机盒，仅需添入电子元件即可使用。 您可以在此处找到以下产品类型款式 A4150100请务必索取报价！
