C2316159

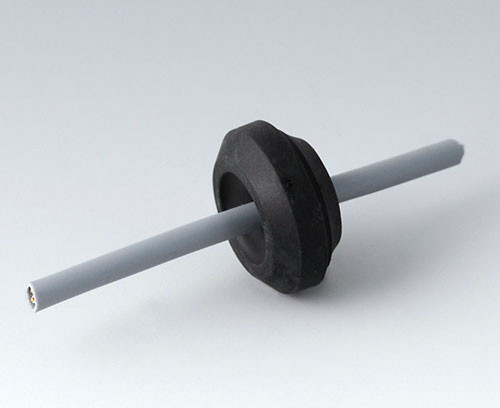

Cable grommet
Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens and sulphur. Suitable for wall thicknesses from 0.5 - 3 mm and for cable diameters from 5 - 10 mm. Operating temperatures from -40°C to +80°C. Borehole ø 16.5 mm.
Supply1 cable grommet
- 技术数据
-
图纸或资料
- 采购有关数据
防护等级
颜色
black RAL 9005
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 89 KB
- AutoCAD DWG-File 140 KB
- AutoCAD DXF-File 464 KB
Weight/1 part
2 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Other country
