C2316137

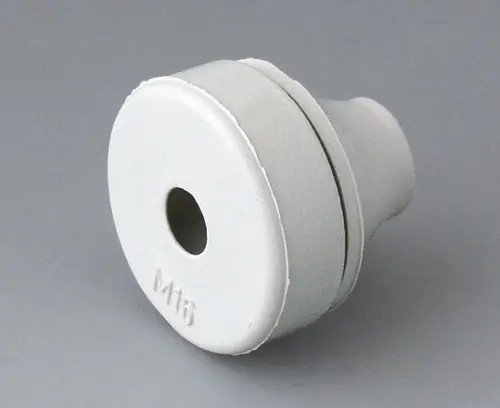

Cable grommet

Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 1 - 4 mm and for cable diameters from 5 - 9 mm. Operating temperatures from -40°C to +100°C. Borehole ø 16.5 mm.

Supply

1 cable grommet

2D PDF 视图
3D/2D 图纸资料下载

请制作 PDF 数据表用于 C2316137

请选择产品信息以输入数据表。

添加到购物车内 添加到购物车内 添加到购物车内
产品已添加到关注清单中
继续查询或 开启您的购物车
材料

防护等级
颜色
light grey RAL 7035
标准根据
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
5 g
Customs tariff number
(OKW product)
40169300
Country of manufacture
Other country
