A9250250

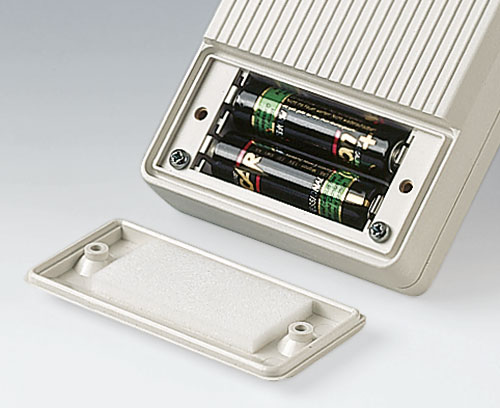

Battery spacer

The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.

Supply

1 spacer

请制作 PDF 数据表用于 A9250250

请选择产品信息以输入数据表。

添加到购物车内 添加到购物车内 添加到购物车内
产品已添加到关注清单中
继续查询或 开启您的购物车
A9046107 HAND-TERMINAL M, Vers. I

A9046107

HAND-TERMINAL M, Vers. I Robust hand-held enclosure. Recessed operation area for membrane keyboards. Screw pillars for PCBs in top and bottom part. Battery compartment as an accessory.

Version With closed operation area

Supply top and bottom part, battery compartment lid, assembly kit incl. PCB-screws and rubber feet

A9046107

HAND-TERMINAL M, Vers. I
产品已添加到关注清单中

off-white RAL 9002
220x120x65mm
A9046109 HAND-TERMINAL M, Vers. I

A9046109

HAND-TERMINAL M, Vers. I Robust hand-held enclosure. Recessed operation area for membrane keyboards. Screw pillars for PCBs in top and bottom part. Battery compartment as an accessory.

Version With closed operation area

Supply Top and bottom part, battery compartment lid, assembly kit incl. PCB-screws and rubber feet

A9046109

HAND-TERMINAL M, Vers. I
产品已添加到关注清单中

black RAL 9005
220x120x65mm
A9046207 HAND-TERMINAL M, Vers. II

A9046207

HAND-TERMINAL M, Vers. II Robust hand-held enclosure. Assembly of the front panels (accessories) from the rear. Screw pillars for PCBs in top and bottom part. Battery compartment as an accessory.

Version With frame cover for the use of an aluminium-front panel (accessories)

Supply Frame cover, bottom part, battery compartment lid, assembly kit incl. screws for the front panel as well as for the PCB and rubber feet

A9046207

HAND-TERMINAL M, Vers. II
产品已添加到关注清单中

off-white RAL 9002
220x120x65mm
A9046209 HAND-TERMINAL M, Vers. II

A9046209

HAND-TERMINAL M, Vers. II Robust hand-held enclosure. Assembly of the front panels (accessories) from the rear. Screw pillars for PCBs in top and bottom part. Battery compartment as an accessory.

Version With frame cover for the use of an aluminium-front panel (accessories)

Supply Frame cover, bottom part, battery compartment lid, assembly kit incl. screws for the front panel as well as for the PCB and rubber feet

A9046209

HAND-TERMINAL M, Vers. II
产品已添加到关注清单中

black RAL 9005
220x120x65mm
A9061017 HAND-HELD-BOX N, Vers. I

A9061017

HAND-HELD-BOX N, Vers. I Large exclusive hand-held case. With recessed area e.g. for membrane keyboards, control elements. Battery compartment accessible from the outside with locked battery compartment lid. For 2 x 9 V flat batteries (PP3) or 4 x 1.5 V mignon cells (AA). Cut-out section for digital and analogical modules. Raised front area to accommodate plugs.

Version With battery compartment

Supply Top and base part, battery compartment lid, assembly kit

A9061017

HAND-HELD-BOX N, Vers. I
产品已添加到关注清单中

off-white RAL 9002
180x100x44mm
A9061019 HAND-HELD-BOX N, Vers. I

A9061019

HAND-HELD-BOX N, Vers. I Large exclusive hand-held case. With recessed area e.g. for membrane keyboards, control elements. Battery compartment accessible from the outside with locked battery compartment lid. For 2 x 9 V flat batteries (PP3) or 4 x 1.5 V mignon cells (AA). Cut-out section for digital and analogical modules. Raised front area to accommodate plugs.

Version With battery compartment

Supply Top and base part, battery compartment lid, assembly kit

A9061019

HAND-HELD-BOX N, Vers. I
产品已添加到关注清单中

black RAL 9005
180x100x44mm
A9073107 DATEC-MOBIL-BOX S, Vers. I

A9073107

DATEC-MOBIL-BOX S, Vers. I Small hand-held box of attractive design. With integrated battery compartment for 2 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version Top with closed operating area, recessed by 1.7 mm

Supply Case-top and base, battery compartment lid, assembly kit

A9073107

DATEC-MOBIL-BOX S, Vers. I
产品已添加到关注清单中

off-white RAL 9002
152x83x33.5mm
A9073109 DATEC-MOBIL-BOX S, Vers. I

A9073109

DATEC-MOBIL-BOX S, Vers. I Small hand-held box of attractive design. With integrated battery compartment for 2 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version Top with closed operating area, recessed by 1.7 mm

Supply Case-top and base, battery compartment lid, assembly kit

A9073109

DATEC-MOBIL-BOX S, Vers. I
产品已添加到关注清单中

black RAL 9005
152x83x33.5mm
A9073207 DATEC-MOBIL-BOX S, Vers. II

A9073207

DATEC-MOBIL-BOX S, Vers. II Small hand-held box of attractive design. With integrated battery compartment for 2 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version Top with display cutout for 2"-LC-modules with active area 45.8 x 17.8 mm

Supply Case-top and base, battery compartment lid, assembly kit

A9073207

DATEC-MOBIL-BOX S, Vers. II
产品已添加到关注清单中

off-white RAL 9002
152x83x33.5mm
A9073209 DATEC-MOBIL-BOX S, Vers. II

A9073209

DATEC-MOBIL-BOX S, Vers. II Small hand-held box of attractive design. With integrated battery compartment for 2 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version Top with display cutout for 2"-LC-modules with active area 45.8 x 17.8 mm

Supply Case-top and base, battery compartment lid, assembly kit

A9073209

DATEC-MOBIL-BOX S, Vers. II
产品已添加到关注清单中

black RAL 9005
152x83x33.5mm
A9073307 DATEC-MOBIL-BOX S, Vers. III

A9073307

DATEC-MOBIL-BOX S, Vers. III Small hand-held box of attractive design. With integrated battery compartment for 2 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version Top with display cutout for miniature-LCDs with 2 lines x 20 characters

Supply Case-top and base, battery compartment lid, assembly kit

A9073307

DATEC-MOBIL-BOX S, Vers. III
产品已添加到关注清单中

off-white RAL 9002
152x83x33.5mm
A9073309 DATEC-MOBIL-BOX S, Vers. III

A9073309

DATEC-MOBIL-BOX S, Vers. III Small hand-held box of attractive design. With integrated battery compartment for 2 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version Top with display cutout for miniature-LCDs with 2 lines x 20 characters

Supply Case-top and base, battery compartment lid, assembly kit

A9073309

DATEC-MOBIL-BOX S, Vers. III
产品已添加到关注清单中

black RAL 9005
152x83x33.5mm
A9073407 DATEC-MOBIL-BOX S, Vers. IV

A9073407

DATEC-MOBIL-BOX S, Vers. IV Small hand-held box of attractive design. With integrated battery compartment for 2 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version Top with display cutout for miniature-LCDs with 4 lines x 20 characters

Supply Case-top and base, battery compartment lid, assembly kit

A9073407

DATEC-MOBIL-BOX S, Vers. IV
产品已添加到关注清单中

off-white RAL 9002
152x83x33.5mm
A9073409 DATEC-MOBIL-BOX S, Vers. IV

A9073409

DATEC-MOBIL-BOX S, Vers. IV Small hand-held box of attractive design. With integrated battery compartment for 2 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version Top with display cutout for miniature-LCDs with 4 lines x 20 characters

Supply Case-top and base, battery compartment lid, assembly kit

A9073409

DATEC-MOBIL-BOX S, Vers. IV
产品已添加到关注清单中

black RAL 9005
152x83x33.5mm
A9076107 DATEC-CONTROL XS, Vers. I

A9076107

DATEC-CONTROL XS, Vers. I Hand-Held Case for variable use with specially manageable operation and display area, for display and graphic modules. Recesed operation area for membrane keyboards. Battery compartment lid alternatively snapped-on and/or screwed down (battery compartment as accessory).

Version With closed operating area, recess: 1.6 mm deep

Supply Top and base part, battery compartment lid, assembly kit

A9076107

DATEC-CONTROL XS, Vers. I
产品已添加到关注清单中

off-white RAL 9002
200x94x39.5mm
A9076109 DATEC-CONTROL XS, Vers. I

A9076109

DATEC-CONTROL XS, Vers. I Hand-Held Case for variable use with specially manageable operation and display area, for display and graphic modules. Recesed operation area for membrane keyboards. Battery compartment lid alternatively snapped-on and/or screwed down(battery compartment as accessory).

Version With closed operating area, recess: 1.6 mm deep

Supply Top and base part, battery compartment lid, assembly kit

A9076109

DATEC-CONTROL XS, Vers. I
产品已添加到关注清单中

black RAL 9005
200x94x39.5mm
A9076157 SET: DATEC-CONTROL XS, Vers. I,station..

A9076157

SET: DATEC-CONTROL XS, Vers. I,station.. Enclosure-kit: DATEC-CONTROL XS, version I with machining for the locator of the 6-pin contacts and secure connection, 1 base XS, 1 male contact (base) and 1 female contact (enclosure).

Supply Bottom and top part without display cutout, battery compartment lid, base, male contact, female contact, assembly kits

A9076157

SET: DATEC-CONTROL XS, Vers. I,station..
产品已添加到关注清单中

off-white RAL 9002
200x94mm
A9076159 SET: DATEC-CONTROL XS, Vers. I,station..

A9076159

SET: DATEC-CONTROL XS, Vers. I,station.. Enclosure-kit: DATEC-CONTROL XS, version I with machining for the locator of the 6-pin contacts and secure connection, 1 base XS, 1 male contact (base) and 1 female contact (enclosure).

Supply Bottom and top part without display cutout, battery compartment lid, base, male contact, female contact, assembly kits

A9076159

SET: DATEC-CONTROL XS, Vers. I,station..
产品已添加到关注清单中

black RAL 9005
200x94mm
A9076207 DATEC-CONTROL XS, Vers. II

A9076207

DATEC-CONTROL XS, Vers. II Hand-Held Case for variable use with specially manageable operation and display area, for display and graphic modules. Reccesed operation area for membrane keyboards. Battery compartment lid alternatively snapped-on and/or screwed down(battery compartment as accessory).

Version Top part with maximum sized cutout for display modules

Supply Top and base part, battery compartment lid, assembly kit

A9076207

DATEC-CONTROL XS, Vers. II
产品已添加到关注清单中

off-white RAL 9002
200x94x39.5mm
A9076209 DATEC-CONTROL XS, Vers. II

A9076209

DATEC-CONTROL XS, Vers. II Hand-Held Case for variable use with specially manageable operation and display area, for display and graphic modules. Reccesed operation area for membrane keyboards. Battery compartment lid alternatively snapped-on and/or screwed down.(battery compartment as accessory).

Version Top part with maximum sized cutout for display modules

Supply Top and base part, battery compartment lid, assembly kit

A9076209

DATEC-CONTROL XS, Vers. II
产品已添加到关注清单中

black RAL 9005
200x94x40mm
A9076257 SET: DATEC-CONTROL XS, Vers. II, station.

A9076257

SET: DATEC-CONTROL XS, Vers. II, station. Enclosure-kit: DATEC-CONTROL XS, version II with machining for the locator of the 6-pin contacts and secure connection, 1 base XS, 1 male contact (base) and 1 female contact (enclosure).

Supply Bottom and top part with display cutout, battery compartment lid, base, male contact, female contact, assembly kits

A9076257

SET: DATEC-CONTROL XS, Vers. II, station.
产品已添加到关注清单中

off-white RAL 9002
200x94mm
A9076259 SET: DATEC-CONTROL XS, Vers. II, station.

A9076259

SET: DATEC-CONTROL XS, Vers. II, station. Enclosure-kit: DATEC-CONTROL XS, version II with machining for the locator of the 6-pin contacts and secure connection, 1 base XS, 1 male contact (base) and 1 female contact (enclosure).

Supply Bottom and top part with display cutout, battery compartment lid, base, male contact, female contact, assembly kits

A9076259

SET: DATEC-CONTROL XS, Vers. II, station.
产品已添加到关注清单中

black RAL 9005
200x94mm
A9408335 SHELL-TYPE CASES G 155, Vers. IV

A9408335

SHELL-TYPE CASES G 155, Vers. IV Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cells (AA)

Supply 1 top and base part, battery compartment lid, assembly kit

A9408335

SHELL-TYPE CASES G 155, Vers. IV
产品已添加到关注清单中

off-white RAL 9002
95x158x33mm
A9408336 SHELL-TYPE CASES V 155, Vers. IV

A9408336

SHELL-TYPE CASES V 155, Vers. IV Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cells (AA)

Supply 1 top and base part, battery compartment lid, assembly kit

A9408336

SHELL-TYPE CASES V 155, Vers. IV
产品已添加到关注清单中

off-white RAL 9002
95x158x33mm
A9408345 SHELL-TYPE CASES G 155, Vers. IV

A9408345

SHELL-TYPE CASES G 155, Vers. IV Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cells (AA)

Supply 1 top and base part, battery compartment lid, assembly kit

A9408345

SHELL-TYPE CASES G 155, Vers. IV
产品已添加到关注清单中

off-white RAL 9002
95x158x45mm
A9408346 SHELL-TYPE CASES V 155, Vers. IV

A9408346

SHELL-TYPE CASES V 155, Vers. IV Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cells (AA)

Supply 1 top and base part, battery compartment lid, assembly kit

A9408346

SHELL-TYPE CASES V 155, Vers. IV
产品已添加到关注清单中

off-white RAL 9002
95x158x45mm
A9408355 SHELL-TYPE CASES G 155, Vers. IV

A9408355

SHELL-TYPE CASES G 155, Vers. IV Two-part plastic case with closed front and rear. Top view with recessed area. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cells (AA)

Supply 1 top and base part, battery compartment lid, assembly kit

A9408355

SHELL-TYPE CASES G 155, Vers. IV
产品已添加到关注清单中

off-white RAL 9002
95x158x33.5mm
A9408638 SHELL-TYPE CASES V 155, Vers. V

A9408638

SHELL-TYPE CASES V 155, Vers. V Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)

Supply 1 top and base part, battery compartment lid, assembly kit

A9408638

SHELL-TYPE CASES V 155, Vers. V
产品已添加到关注清单中

off-white RAL 9002
95x158x33mm
A9408648 SHELL-TYPE CASES V 155, Vers. V

A9408648

SHELL-TYPE CASES V 155, Vers. V Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)

Supply 1 top and base part, battery compartment lid, assembly kit

A9408648

SHELL-TYPE CASES V 155, Vers. V
产品已添加到关注清单中

off-white RAL 9002
95x158x45mm
A9408737 SHELL-TYPE CASES G 155, Vers. V

A9408737

SHELL-TYPE CASES G 155, Vers. V Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)

Supply 1 top and base part, battery compartment lid, assembly kit

A9408737

SHELL-TYPE CASES G 155, Vers. V
产品已添加到关注清单中

off-white RAL 9002
95x158x33mm
A9408747 SHELL-TYPE CASES G 155, Vers. V

A9408747

SHELL-TYPE CASES G 155, Vers. V Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)

Supply 1 top and base part, battery compartment lid, assembly kit

A9408747

SHELL-TYPE CASES G 155, Vers. V
产品已添加到关注清单中

off-white RAL 9002
95x158x45mm
A9408757 SHELL-TYPE CASES G 155, Vers. V

A9408757

SHELL-TYPE CASES G 155, Vers. V Two-part plastic case with closed front and rear. Top view with recessed area. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)

Supply 1 top and base part, battery compartment lid, assembly kit

A9408757

SHELL-TYPE CASES G 155, Vers. V
产品已添加到关注清单中

off-white RAL 9002
95x158x33.5mm

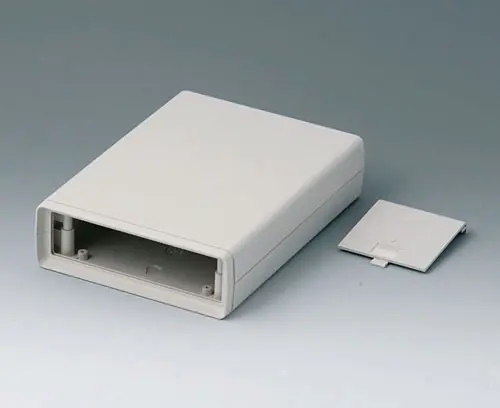

A9413638 SHELL-TYPE CASES V 190, Vers. V

A9413638

SHELL-TYPE CASES V 190, Vers. V Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)

Supply 1 top and base part, battery compartment lid, assembly kit

A9413638

SHELL-TYPE CASES V 190, Vers. V
产品已添加到关注清单中

off-white RAL 9002
138x190x45mm
A9413648 SHELL-TYPE CASES V 190, Vers. V

A9413648

SHELL-TYPE CASES V 190, Vers. V Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)

Supply 1 top and base part, battery compartment lid, assembly kit

A9413648

SHELL-TYPE CASES V 190, Vers. V
产品已添加到关注清单中

off-white RAL 9002
138x190x68mm
A9413737 SHELL-TYPE CASES G 190, Vers. V

A9413737

SHELL-TYPE CASES G 190, Vers. V Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)

Supply 1 top and base part, battery compartment lid, assembly kit

A9413737

SHELL-TYPE CASES G 190, Vers. V
产品已添加到关注清单中

off-white RAL 9002
138x190x45mm
A9413747 SHELL-TYPE CASES G 190, Vers. V

A9413747

SHELL-TYPE CASES G 190, Vers. V Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)

Supply 1 top and base part, battery compartment lid, assembly kit

A9413747

SHELL-TYPE CASES G 190, Vers. V
产品已添加到关注清单中

off-white RAL 9002
138x190x68mm
A9413757 SHELL-TYPE CASES G 190, Vers. V

A9413757

SHELL-TYPE CASES G 190, Vers. V Two-part plastic case with closed front and rear. Top view with recessed area. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)

Supply 1 top and base part, battery compartment lid, assembly kit

A9413757

SHELL-TYPE CASES G 190, Vers. V
产品已添加到关注清单中

off-white RAL 9002
138x190x45.5mm
材料

标准根据
RoHS compliant
REACH compliant
长度
50 mm
宽度
25 mm
厚度
4 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
0.5 g
Customs tariff number
(OKW product)
39211900
Country of manufacture
Germany
