A9257409

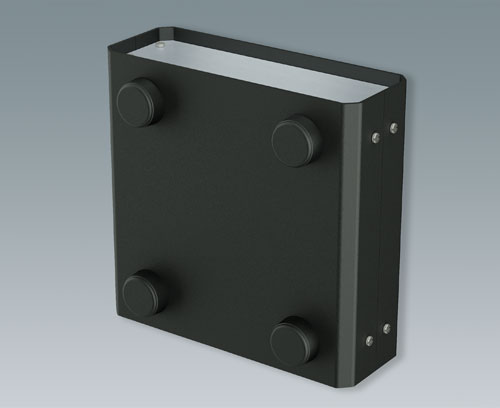

Case feet, Vers. I
Universal case feet for all types of plastic and metal enclosures with max. 3 mm wall thickness.
VersionWithout tilt legs
Supply4 foot mouldings, 4 rubber inserts, 4 self-tapping screws
添加到购物车内
- 技术数据
-
图纸或资料
- 采购有关数据
直径
⌀ 30 mm
高度
12 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 96 KB
- AutoCAD DWG-File 272 KB
- AutoCAD DXF-File 791 KB
- 3 维 PDF 版 （Acrobat Reader 软件） (产品旋转 360°，部件显示或隐藏等功能) 1,711 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00020304.x_t 396 KB
- 00020304.step 824 KB
- 00020304.sat 3,804 KB
Weight/1 part
28 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
UK
