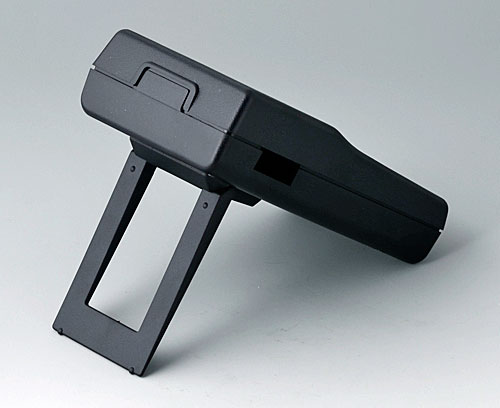

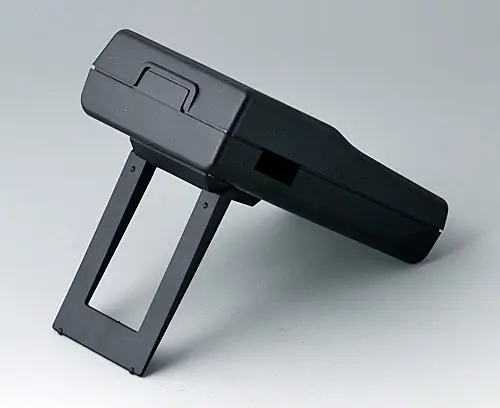

A9250809 Tilt foot bar

A9250809

Tilt foot bar

Facilitates ergonomical reading angles, side lenght 81 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply

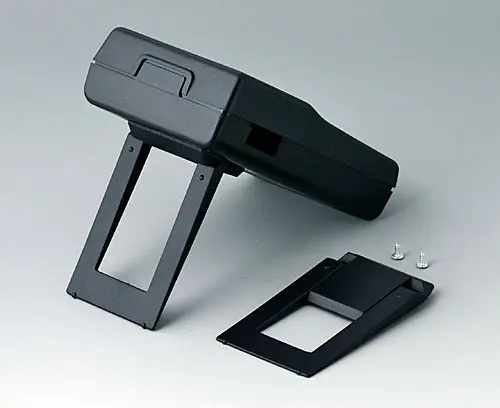

1 tilt foot bar, assembly kit

  • 适配系统部件
  • 按客户要求修改加工

系统组件使产品完整

A9060009 HAND-HELD-BOX P, Vers. I

A9060009

HAND-HELD-BOX P, Vers. I Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery (PP3) or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs.

Version With lateral recess for rocker switch

Supply Top and base part, battery compartment lid, assembly kit

关闭

A9060009

HAND-HELD-BOX P, Vers. I
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005
145x80x36.5mm
A9060019 HAND-HELD-BOX P, Vers. II

A9060019

HAND-HELD-BOX P, Vers. II Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery (PP3) or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs.

Version Without lateral recess

Supply Top and base part, battery compartment lid, assembly kit

关闭

A9060019

HAND-HELD-BOX P, Vers. II
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005
145x80x36.5mm
A9062019 HAND-HELD-BOX M, Vers. I

A9062019

HAND-HELD-BOX M, Vers. I Small hand-held case with excellent design. With recessed area, e.g. for membrane keyboards, control elements. Cut-out section for digital and analogical modules. Battery compartment accessible from the outside with locked battery compartment lid. Raised front area to accommodate plugs.

Version With battery compartment for 9 V flat batteries (PP3) or 1.5 V baby cells (C)

Supply Top and base part, battery compartment lid, assembly kit

关闭

A9062019

HAND-HELD-BOX M, Vers. I
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005
145x80x38.5mm

附件

A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

关闭

A9207150

Anti-slide feet 6.5 x 2 mm
产品已添加到关注清单中
transparent

Customising options for A9250809

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
颜色
black RAL 9005
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
12 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
