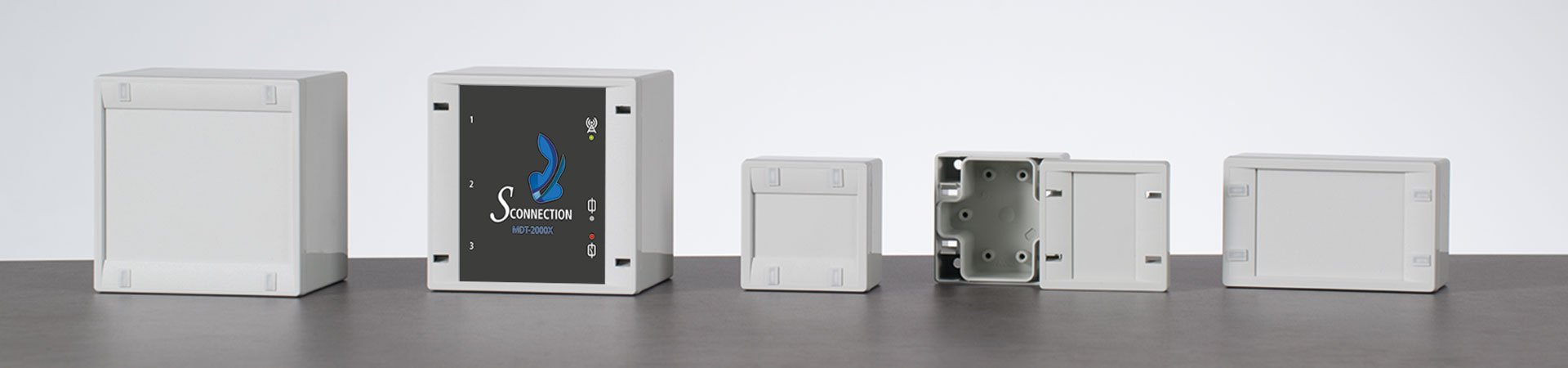

Snaptec 卡盖机盒

Snaptec 卡盖机盒

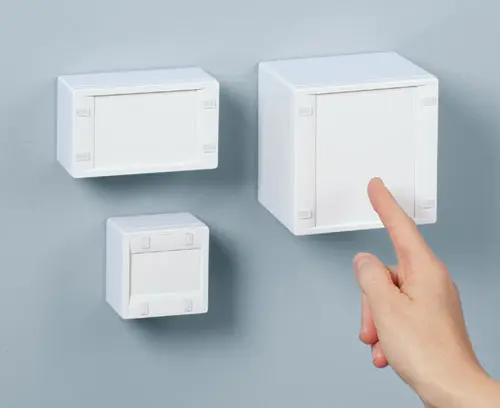

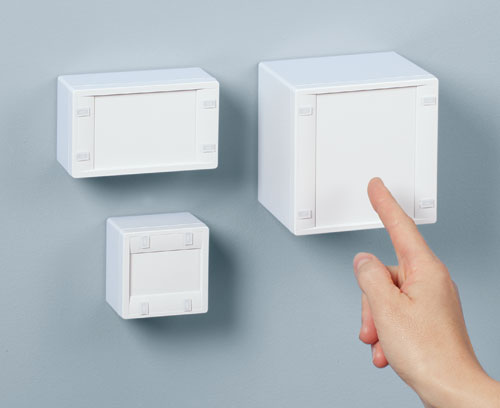

卡盖机盒达 IP 65

SNAPTEC 卡盖机盒采用创新的卡夹技术达到独特的安装方式

  • 价格实惠的壁挂盒
  • 卡夹式上盒使安装独特
  • 高度较大的下盒确保用于电缆接头和界面安装的最大空间

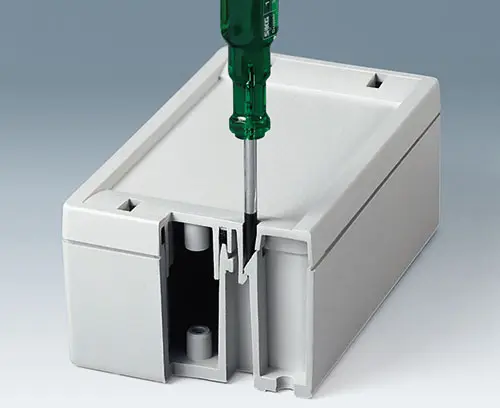

  • 通过卸夹器或螺丝刀达到快速拆卸

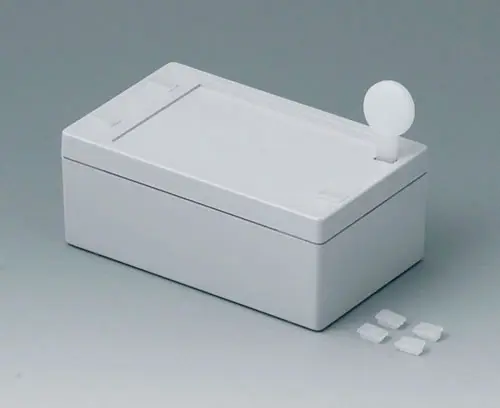

  • 卸夹器及卸口盖板包含在供货范围内

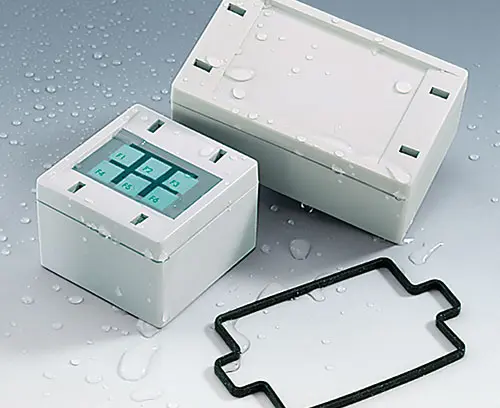

  • 防护等级高达 IP 65; 密封圈已安装于上盒

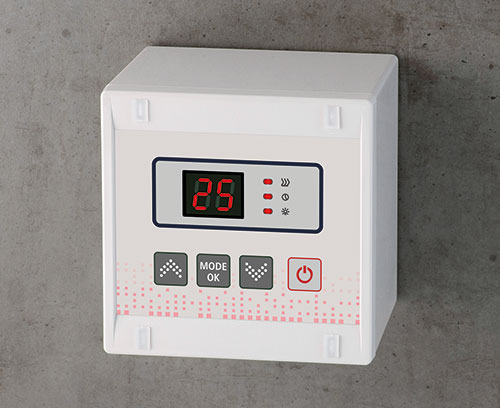

  • 凹陷的操作区域,以保护膜键盘或标签

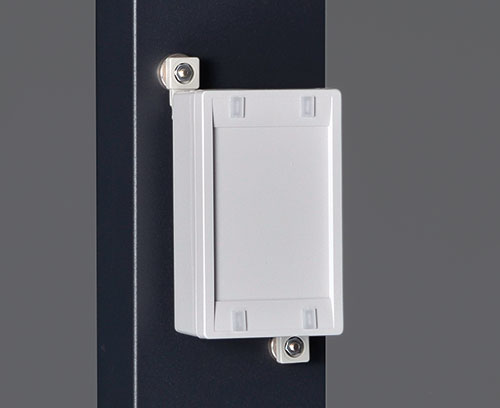

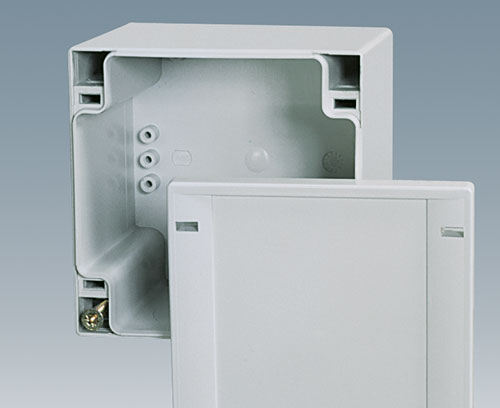

  • 简易的墙壁安装方式,安装区隐蔽在下盒中为此特设的槽框中

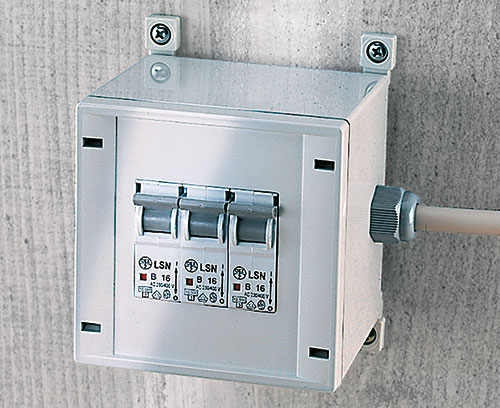

  • 也可选另外设置的盒外安装片

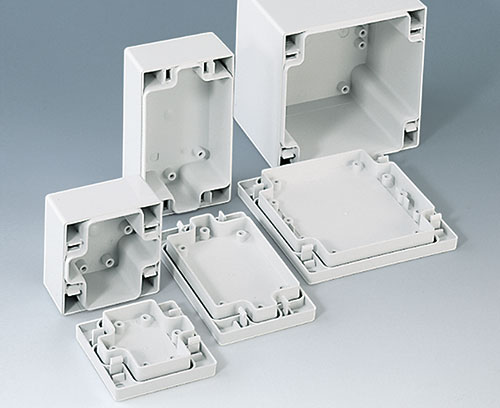

  • 内设固定柱用于固定电路板和元器件

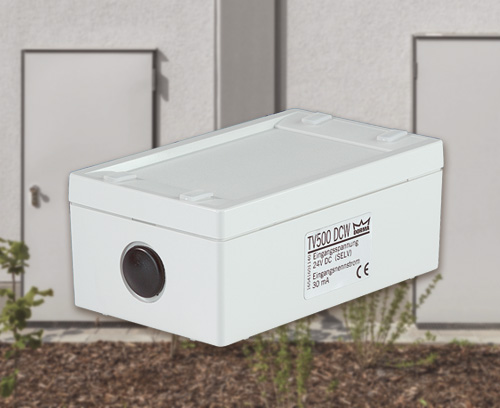

  • 应用示例

应用范围

  • 特别适用于电气安装,例如用于供暖、通风和空调设备的控制和监视、用于机器设备及安全工程等

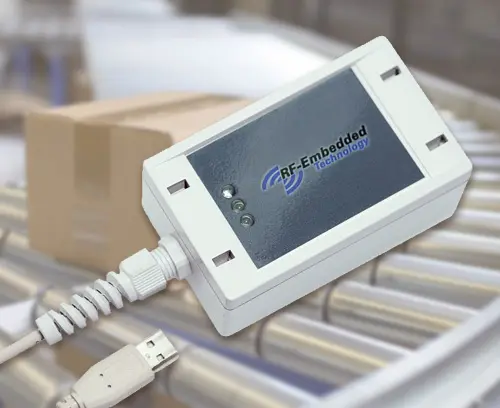

  • 但也可用于电子领域,例如用于数字和模拟测量仪器、传感器应用、作为接口机盒,报警机盒等
  • 选择所有项目
  • 配件
  • 按客户要求修改加工

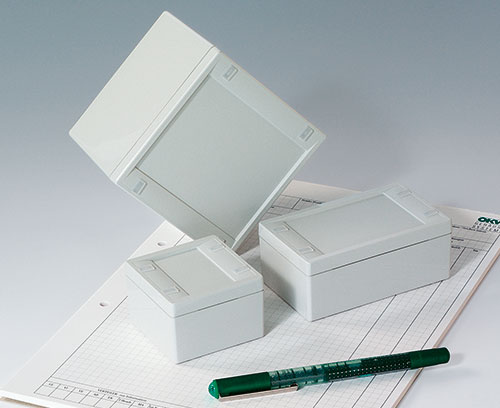

C3006061 SNAPTEC 60 x 60

C3006061

SNAPTEC 60 x 60 Top and base parts are fitted together using a unique snap-in machanism. Fixing towers in top and base part. Recessed area for membrane keyboards. Simple, invisible wall-mounting in pre-moulded shafts within the base part.

Supply 1 top and base part with sealing, cover for the locking openings, dismantling key

关闭

C3006061

SNAPTEC 60 x 60
产品已添加到关注清单中
ABS (UL 94 HB)
light grey RAL 7035
60x60x40mm
IP 65
C3006101 SNAPTEC 60 x 100

C3006101

SNAPTEC 60 x 100 Top and base parts are fitted together using a unique snap-in machanism. Fixing towers in top and base part. Recessed area for membrane keyboards. Simple, invisible wall-mounting in pre-moulded shafts within the base part.

Supply 1 top and base part with sealing, covers for the locking openings, dismantling key

关闭

C3006101

SNAPTEC 60 x 100
产品已添加到关注清单中
ABS (UL 94 HB)
light grey RAL 7035
60x100x40mm
IP 65
C3010101 SNAPTEC 100 x 100

C3010101

SNAPTEC 100 x 100 Top and base parts are fitted together using a unique snap-in machanism. Fixing towers in top and base part. Recessed area for membrane keyboards. Simple, invisible wall-mounting in pre-moulded shafts within the base part.

Supply 1 top and base part with sealing, covers for the locking openings, dismantling key

关闭

C3010101

SNAPTEC 100 x 100
产品已添加到关注清单中
ABS (UL 94 HB)
light grey RAL 7035
100x100x80mm
IP 65
A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

关闭

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
产品已添加到关注清单中
C2299028 Wall mounting brackets

C2299028

Wall mounting brackets Elements for exterior wall mounting after assembly of the unit.

Supply 4 pieces including fixing elements

关闭

C2299028

Wall mounting brackets
产品已添加到关注清单中
PA 6 (UL 94 HB)
light grey RAL 7035
C2306917 Pressure equalisation element M6x0.75

C2306917

Pressure equalisation element M6x0.75 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

关闭

C2306917

Pressure equalisation element M6x0.75
产品已添加到关注清单中
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56
C2310917 Pressure equalisation element M10x1

C2310917

Pressure equalisation element M10x1 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

关闭

C2310917

Pressure equalisation element M10x1
产品已添加到关注清单中
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56
C2316147

C2316147

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.5 - 3 mm and for cable diameters from 5 - 10 mm. Operating temperatures from -40°C to +100°C. Borehole ø 16.5 mm.

Supply 1 cable grommet

关闭

C2316147

Cable grommet
产品已添加到关注清单中
TPE
light grey RAL 7035
IP 67
C2320137

C2320137

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 1 - 4 mm and for cable diameters from 8 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.

Supply 1 cable grommet

关闭

C2320137

Cable grommet
产品已添加到关注清单中
EPDM
light grey RAL 7035
IP 67
C2320147

C2320147

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.5 - 3 mm and for cable diameters from 6 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.

Supply 1 cable grommet

关闭

C2320147

Cable grommet
产品已添加到关注清单中
TPE
light grey RAL 7035
IP 67

产品类型用于 Snaptec 卡盖机盒

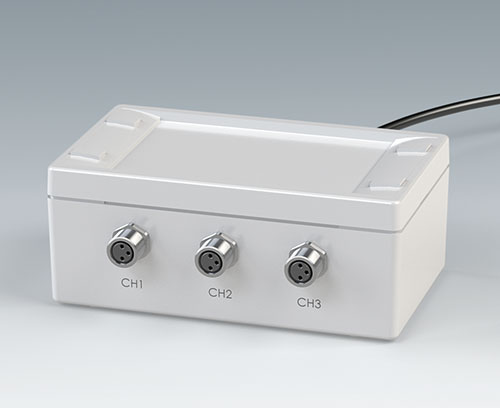

如何体现您的特殊产品? 如有需要,我们执行所有必要的修改和精加工,提供组装完毕的机盒。
