Smart-Control 拐角盒

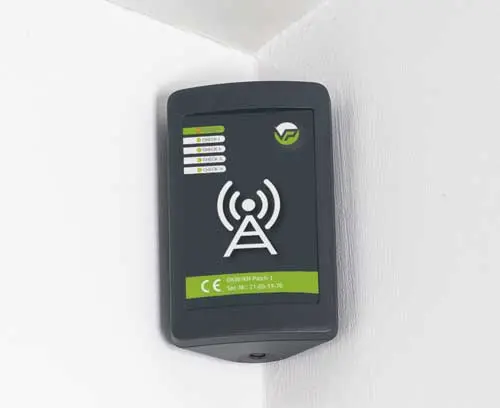

可安装于角落的机盒

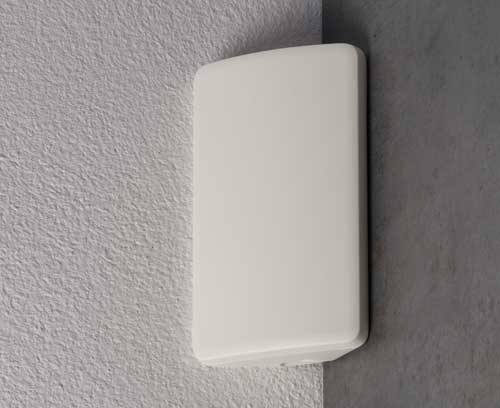

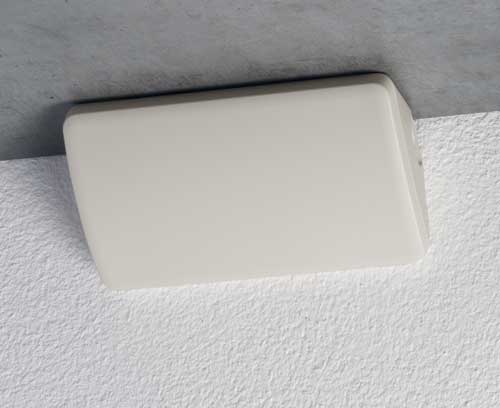

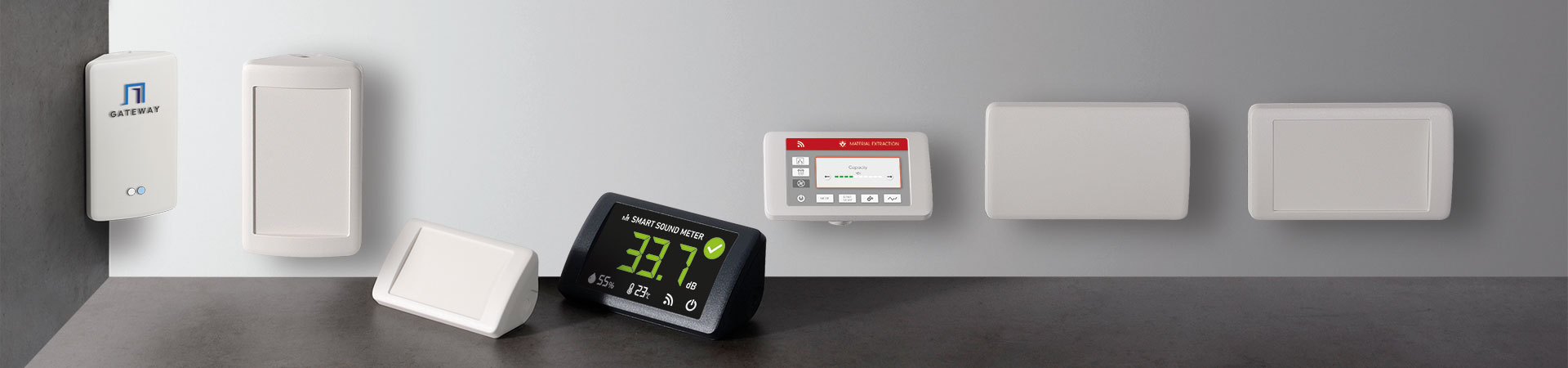

SMART-CONTROL 拐角盒是第一个可在建筑角落方便安装的机盒。此外，其机盒系列也可以安装在墙壁和桌面上，并合适符合人体工程学的倾斜度的使用。

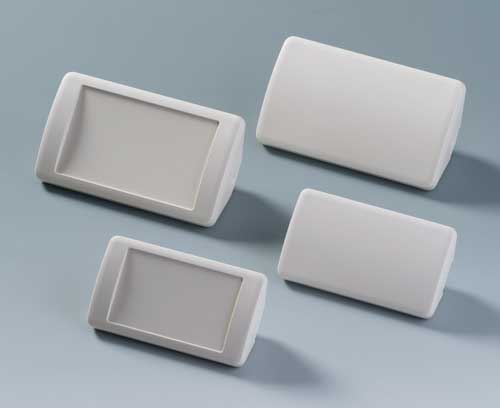

- 2 种规格， M 和 S

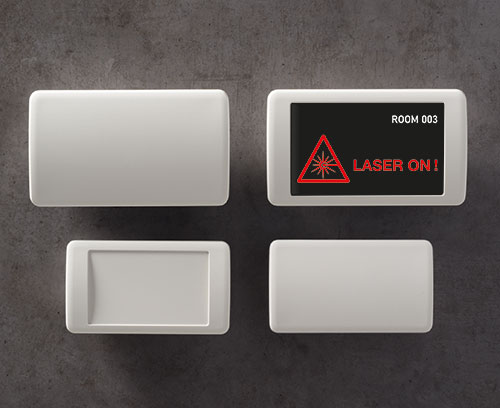

- 提供凸面设计式或带有嵌入式面板以保护膜键盘
- 高质材料 ASA 混合 PC 至 FR、具备高度防紫外线特性、标准颜色为灰白色（RAL 9002）
- 机盒背面的固定装置采用 Torx 梅花不锈钢螺钉

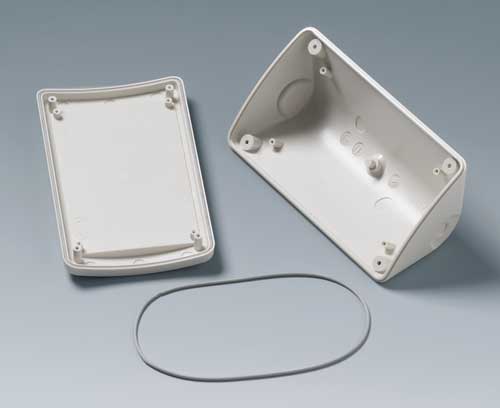

- 达到 IP 55 保护等级的垫圈可选（作为附件）

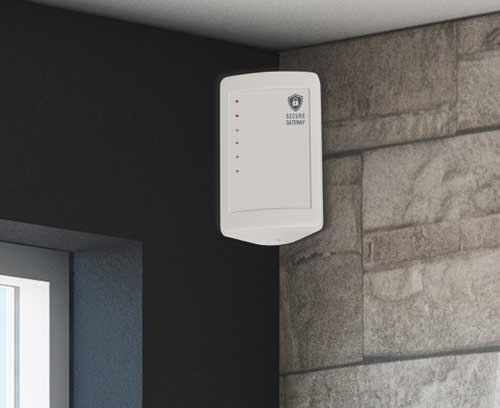

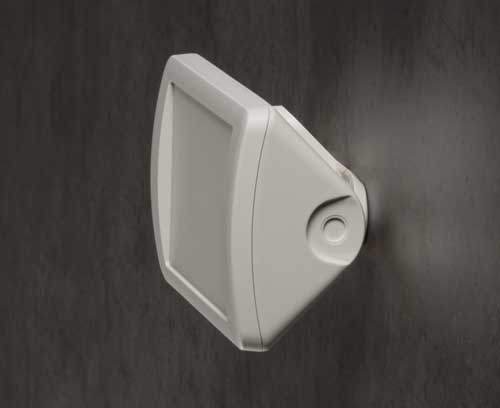

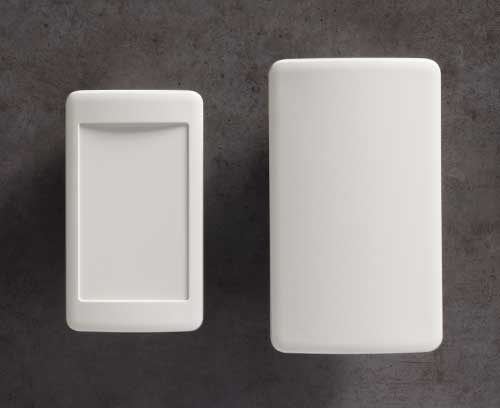

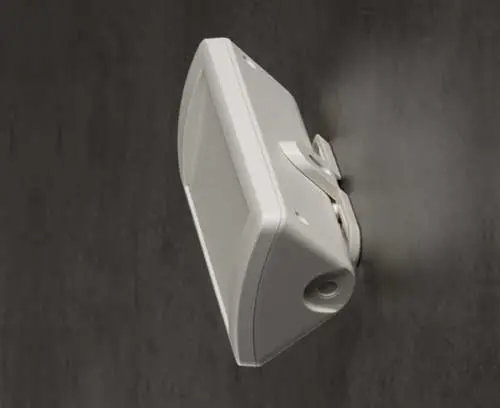

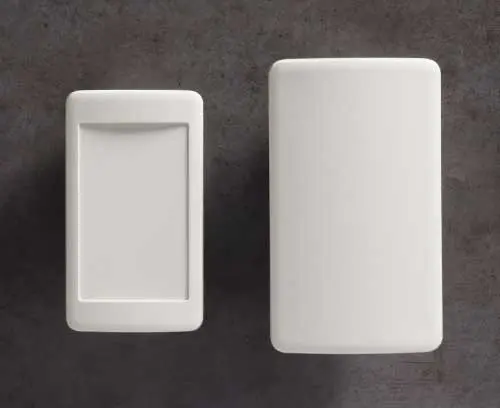

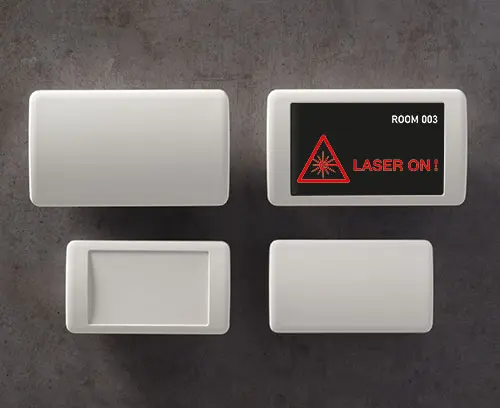

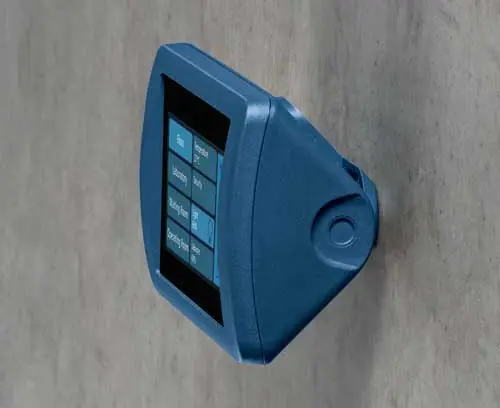

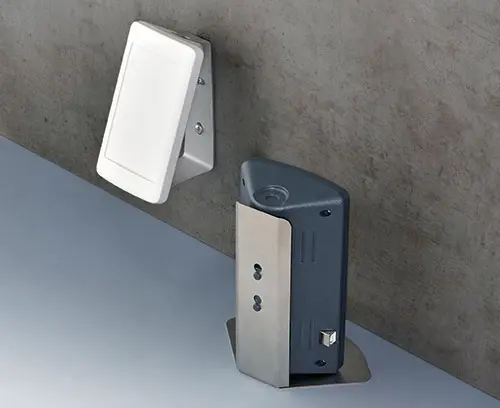

- 特殊壁挂支架（作为附件），用于将机盒安装在 90° 的内壁角或平壁上

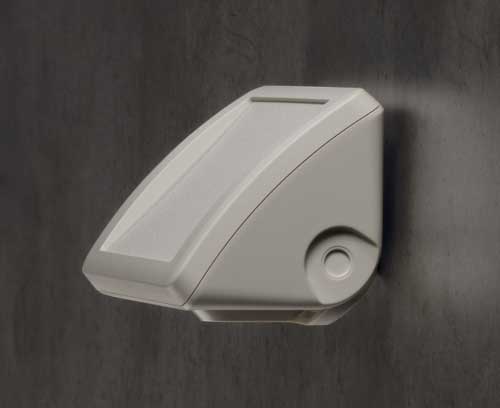

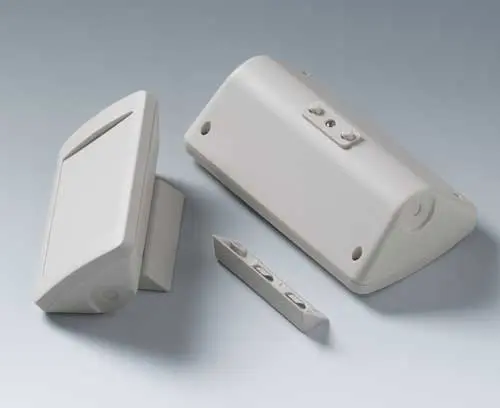

- 桌面支架（作为附件）可将机盒稳固地横向放置在桌子上，并合适符合人体工学的读取角度为 45° 的使用
- 在上盒和下盒各具备一电路板安装格
应用范围

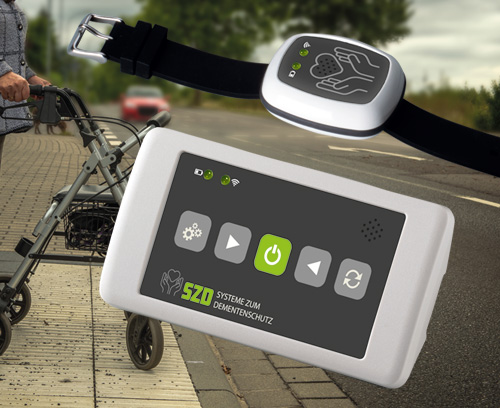

环保技术。 IoT/IIoT。 出入控制设施。 测量和控制技术。 自动化技术。 医疗和实验室技术。 环保技术。
B4608107
SMART-CONTROL S, Vers. I
Two-part plastic enclosure with convex, curved top part. The basic triangular shape allows it to be used in corners or at an ergonomically favourable angle of 45°. Robust design with proven tongue and groove assembly. Case assembled with Torx drive stainless steel screws. Protection class IP 40 without optional sealing kit. Fastening pillars for PCBs and components in the top and bottom parts.
Version Case-top without recessed operating area
Supply Top and bottom parts, assembly kit incl. universal adapter
B4608107
SMART-CONTROL S, Vers. I产品已添加到关注清单中
off-white RAL 9002
142x81x46mm
,
B4608207
SMART-CONTROL S, Vers. II
Two-part plastic enclosure with recessed panel to protect the membrane keypad / décor foil. The basic triangular shape allows it to be used in corners or at an ergonomically favourable angle of 45°. Robust design with proven tongue and groove assembly. Case assembled with Torx drive stainless steel screws. Protection class IP 40 without optional sealing kit. Fastening pillars for PCBs and components in the top and bottom parts.
Version Case-top with recessed operating area
Supply Top and bottom parts, assembly kit incl. universal adapter
B4608207
SMART-CONTROL S, Vers. II产品已添加到关注清单中
off-white RAL 9002
142x81x46mm
,
B4610107
SMART-CONTROL M, Vers. I
Two-part plastic enclosure with convex, curved top part. The basic triangular shape allows it to be used in corners or at an ergonomically favourable angle of 45°. Robust design with proven tongue and groove assembly. Case assembled with Torx drive stainless steel screws. Protection class IP 40 without optional sealing kit. Fastening pillars for PCBs and components in the top and bottom parts.
Version Case-top without recessed operating area
Supply Top and bottom parts, assembly kit incl. universal adapter
B4610107
SMART-CONTROL M, Vers. I产品已添加到关注清单中
off-white RAL 9002
173x101x59mm
,
B4610207
SMART-CONTROL M, Vers. II
Two-part plastic enclosure with recessed panel to protect the membrane keypad / décor foil. The basic triangular shape allows it to be used in corners or at an ergonomically favourable angle of 45°. Robust design with proven tongue and groove assembly. Case assembled with Torx drive stainless steel screws. Protection class IP 40 without optional sealing kit. Fastening pillars for PCBs and components in the top and bottom parts.
Version Case-top with recessed operating area
Supply Top and bottom parts, assembly kit incl. universal adapter
B4610207
SMART-CONTROL M, Vers. II产品已添加到关注清单中
off-white RAL 9002
173x101x59mm
,
A0325060
Self-tapping screw 2.5 x 6 mm (T8)
Self-tapping screw with T8 Torx drive. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)产品已添加到关注清单中
B4705207

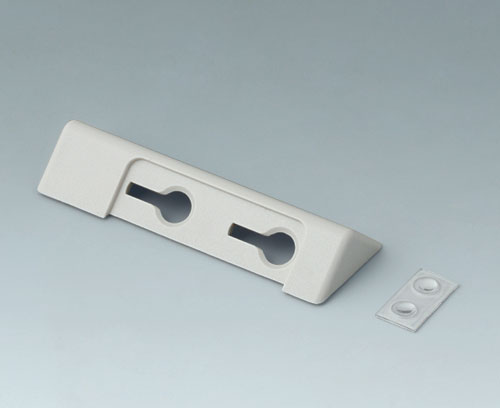

Desktop stand set
For reliable positioning on a desktop, giving an ergonomic reading angle of 45° when the enclosure is set up horizontally. Snap-in assembly using the universal adapter supplied with the enclosure. (accessory for the complete enclosure).
Supply 1 desktop stand set incl. 2 self-adhesive rubber feet
B4705207
Desktop stand set产品已添加到关注清单中
B4705907

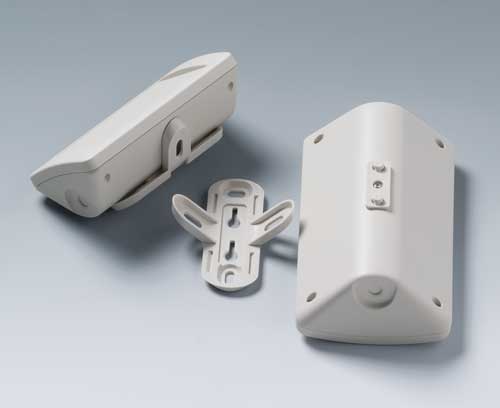

Wall suspension element
This element allows simple, flush installation of the enclosure to 90° inside corners or on a wall. Snap-in assembly using the universal adapter supplied with the enclosure. (accessory for the complete enclosure).
Supply 1 wall suspension element
B4705907
Wall suspension element产品已添加到关注清单中

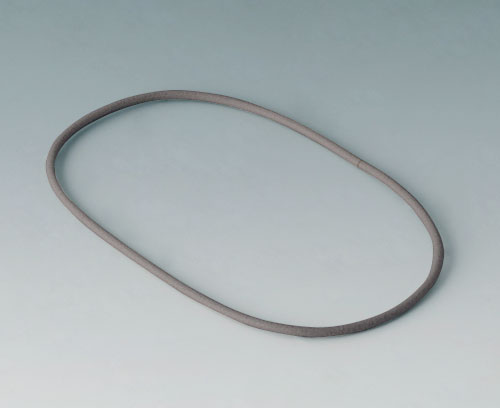

B4708920
Seal S
Application: for increasing the protection class, of SMART-CONTROL S. Bottom part of the enclosure with groove for inserting the seal.
Supply 1 seal
B4708920
Seal S产品已添加到关注清单中
B4710920
Seal M
Application: for increasing the protection class, of SMART-CONTROL M. Bottom part of the enclosure with groove for inserting the seal.
Supply 1 seal
B4710920
Seal M产品已添加到关注清单中
