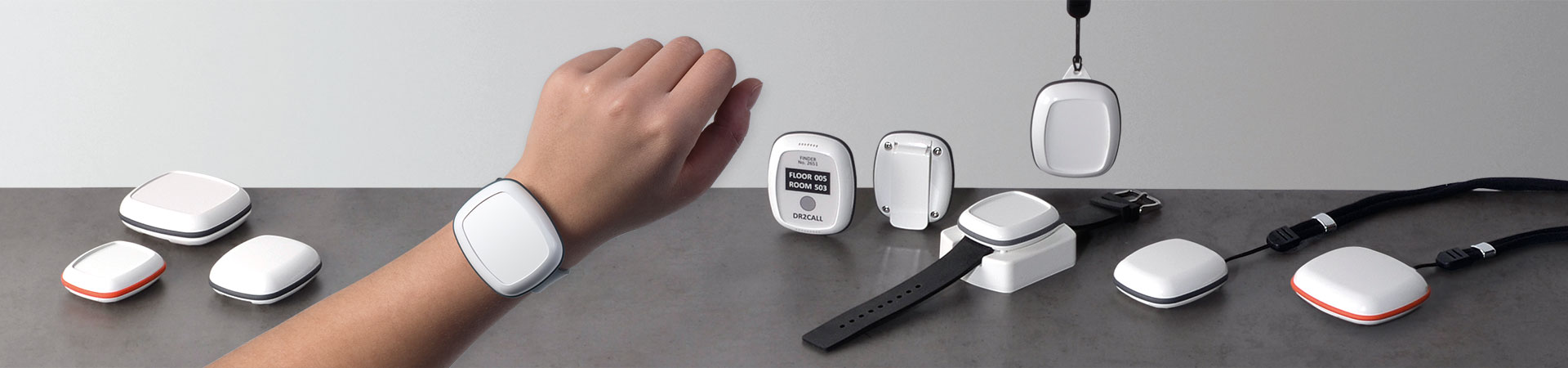

Body-Case 携戴盒

特色小型机盒 - 携带舒适

BODY-CASE 携戴盒是 OKW 的新型“可携戴”标准机盒。机盒的设计非常合适便携式技术,所谓的“可穿戴技术”: 套戴于手臂、 套挂于颈部、插入衬衫或裤子的口袋、或松散地放于服装中。

  • 专门用于封装电子元件和传感器的机盒,特别适合佩戴在身上或靠近身体的部位,3 种规格可选
  • 既保证其功能,又不会妨碍使用者或引人注目
  • 具备高度抛光表面的现代化的外观和亚光 TPV 密封圈
  • 明显的独家分化性,通过使用独特的精炼表带(18 毫米宽)
  • 操作简单,通过按钮、触摸屏、按钮或使用语音命令及动感应
  • 无线联网性
  • 高防护等级 IP 65
  • ASA 材质,具有高度的防紫外线性

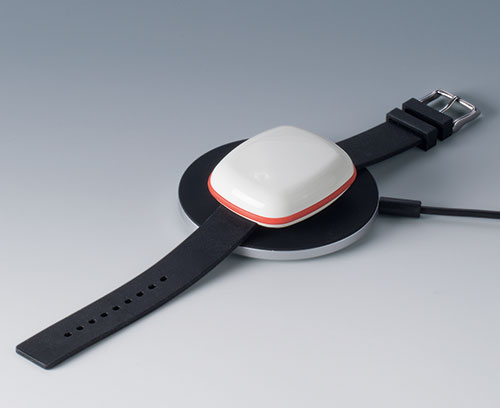

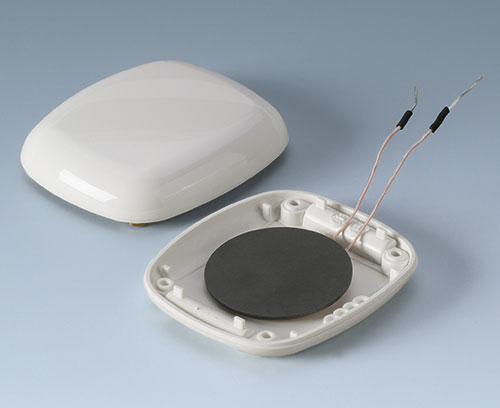

  • 通过直接安装在电路板中的圆形或纽扣电池形成内部供电 – 也可选择使用带铜圈的充电电池,以便感应式充电

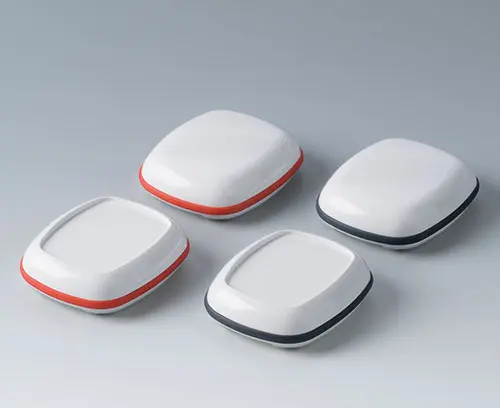

  • 上盒无或带有凹陷操作区域,用于保护装饰膜或膜键盘

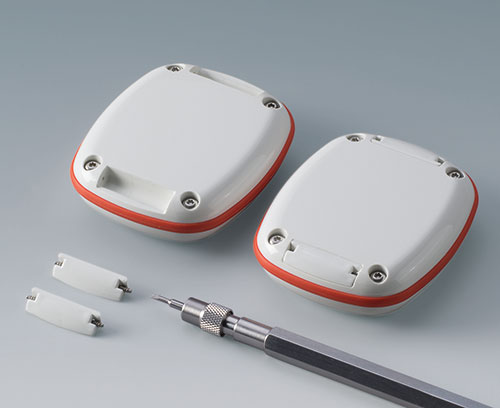

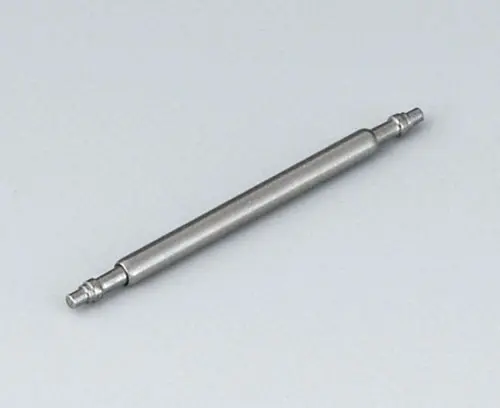

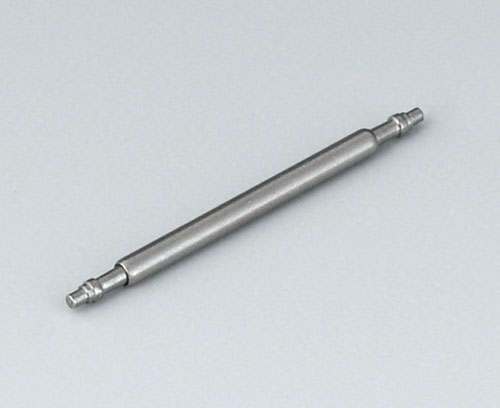

  • 四个高质量的不锈钢 Torx 梅花头螺钉; 安装附件的两个弹簧杆属于机盒供货范围内

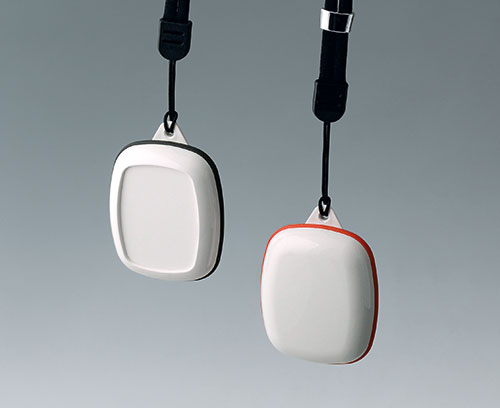

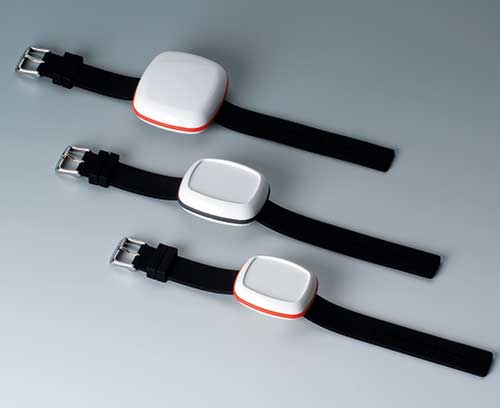

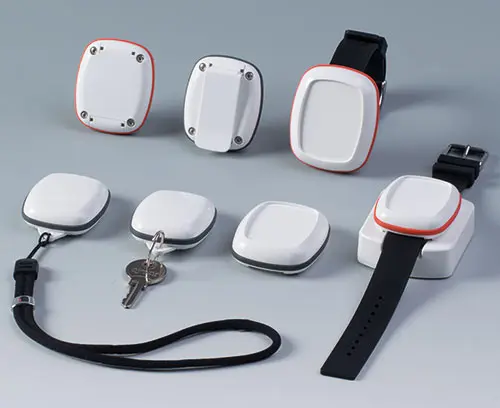

  • 适配规格 L 和 M 的可选配件: 手腕带,卡夹组件(夹环,挂钩)等

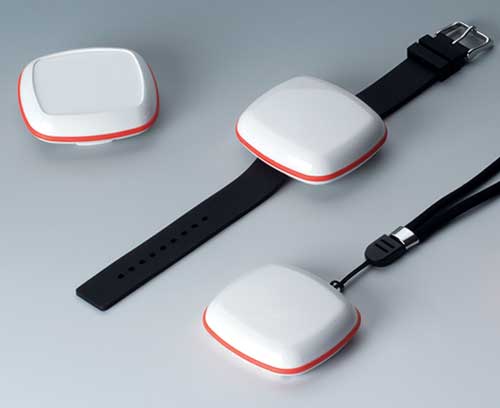

  • 适配规格 XL : 手腕带,卡夹组件(夹环,挂钩)
  • 录像

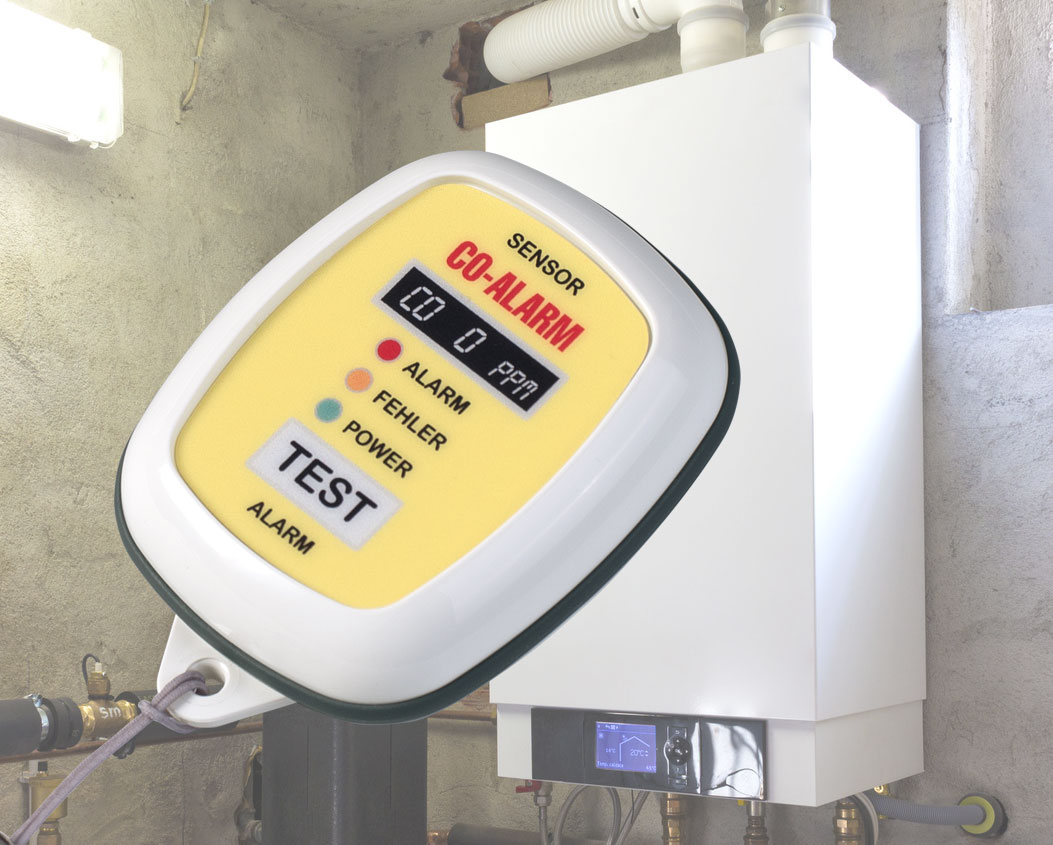

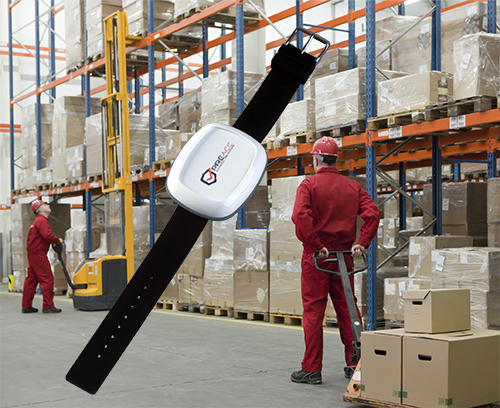

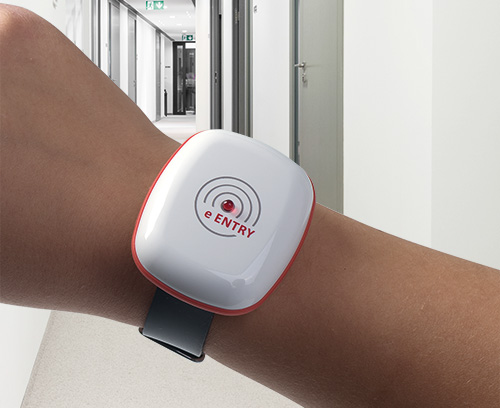

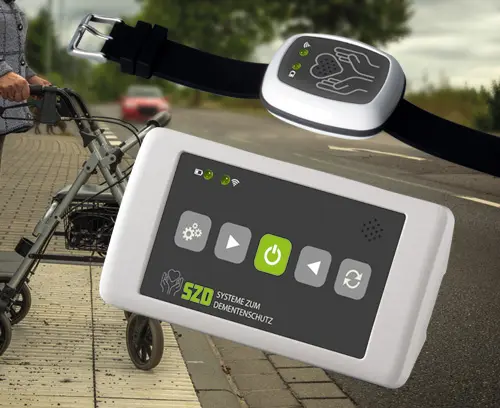

  • 应用示例

应用范围

  • 移动数据采集和数据传输
  • Wearables
  • IoT/ IIoT

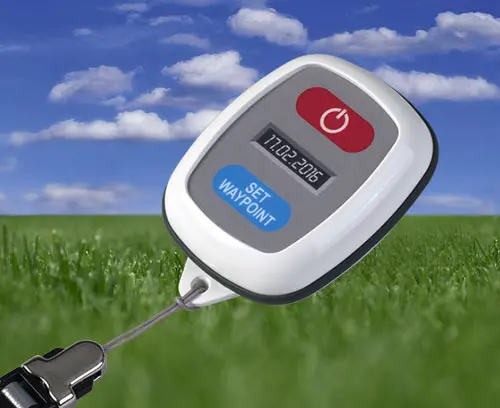

  • 跟踪和监控设备应用

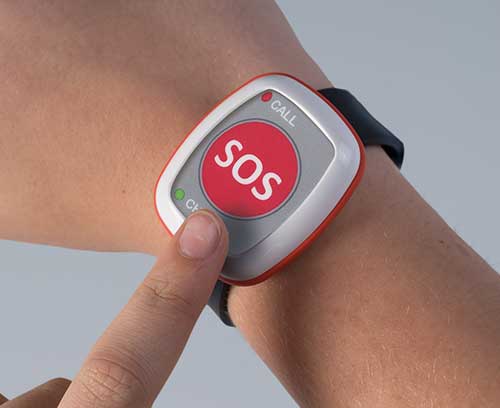

  • 应急和预警系统应用
  • 以及用于保健、医疗、理疗
  • 公共场所
  • 休闲和运动领域的信号传感
  • 此外应用于工业中
  • 例如数控通信技术
  • 存储和销售物流
  • 安全设备
  • 仪器仪表和测量设备及自动化控制
  • 为保证安全所需的具备位置跟踪的工作岗位的应用
  • 选择所有项目
  • 配件
  • 按客户要求修改加工
AltText

B1604107

BODY-CASE M, without recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version Without recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

关闭

B1604107

BODY-CASE M, without recess
产品已添加到关注清单中
ASA (UL 94 HB)
traffic white RAL 9016
50x41x15mm
IP 65
AltText

B1604117

BODY-CASE M, without recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version Without recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

关闭

B1604117

BODY-CASE M, without recess
产品已添加到关注清单中
ASA (UL 94 HB)
traffic white RAL 9016
50x41x15mm
IP 65
AltText

B1604207

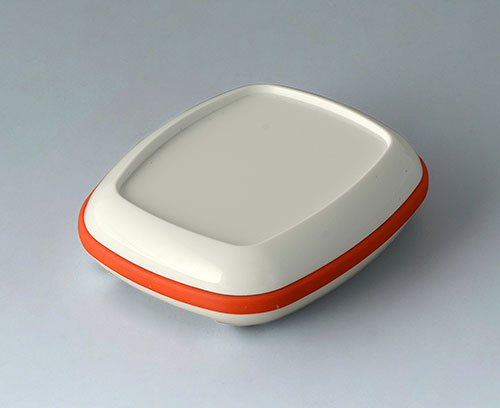

BODY-CASE M, with recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Recessed area in top for locating a membrane keyboard or decor foil. Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version With recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

关闭

B1604207

BODY-CASE M, with recess
产品已添加到关注清单中
ASA (UL 94 HB)
traffic white RAL 9016
50x41x14mm
IP 65
AltText

B1604217

BODY-CASE M, with recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Recessed area in top for locating a membrane keyboard or decor foil. Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version With recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

关闭

B1604217

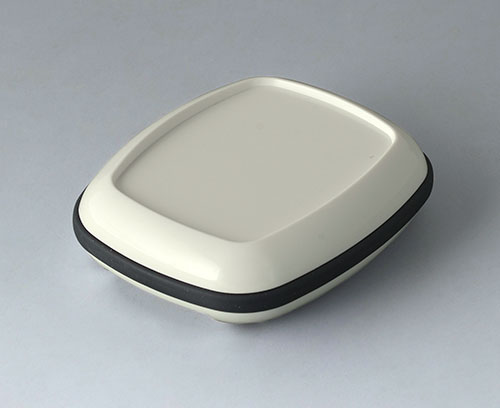

BODY-CASE M, with recess
产品已添加到关注清单中
ASA (UL 94 HB)
traffic white RAL 9016
50x41x14mm
IP 65
AltText

B1606107

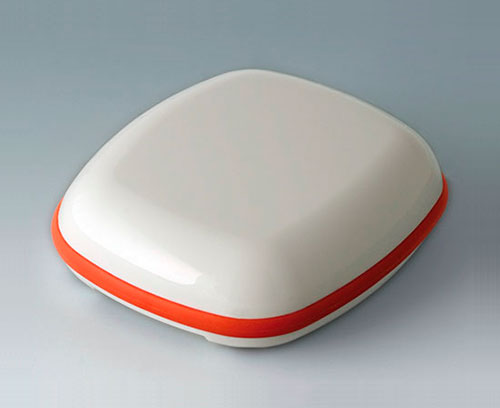

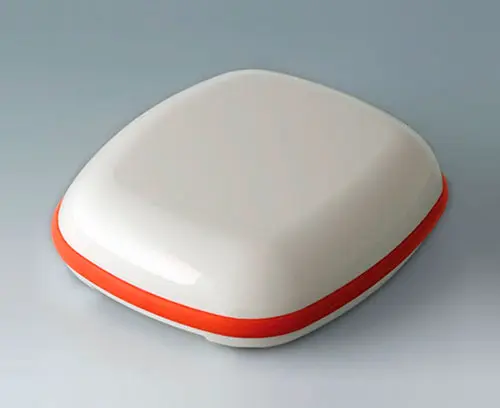

BODY-CASE L, without recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version Without recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

关闭

B1606107

BODY-CASE L, without recess
产品已添加到关注清单中
ASA (UL 94 HB)
traffic white RAL 9016
55x46x17mm
IP 65
AltText

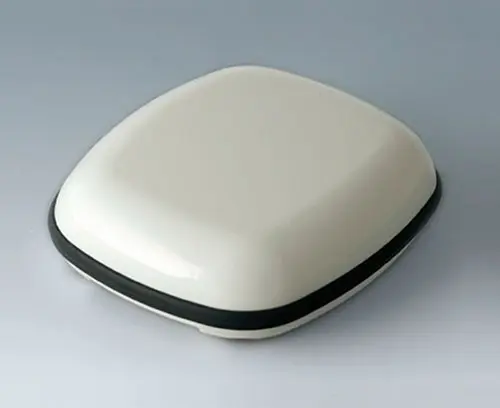

B1606117

BODY-CASE L, without recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version Without recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

关闭

B1606117

BODY-CASE L, without recess
产品已添加到关注清单中
ASA (UL 94 HB)
traffic white RAL 9016
55x46x17mm
IP 65
AltText

B1606207

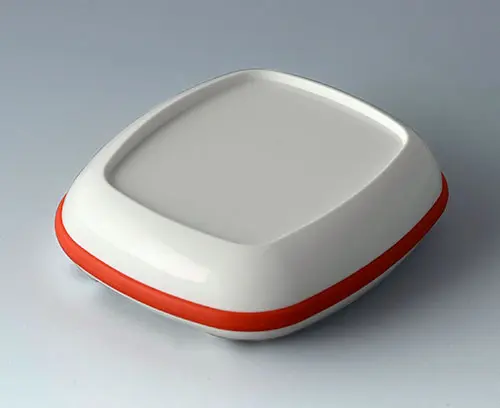

BODY-CASE L, with recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Recessed area in top for locating a membrane keyboard or decor foil. Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version With recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

关闭

B1606207

BODY-CASE L, with recess
产品已添加到关注清单中
ASA (UL 94 HB)
traffic white RAL 9016
55x46x16mm
IP 65
AltText

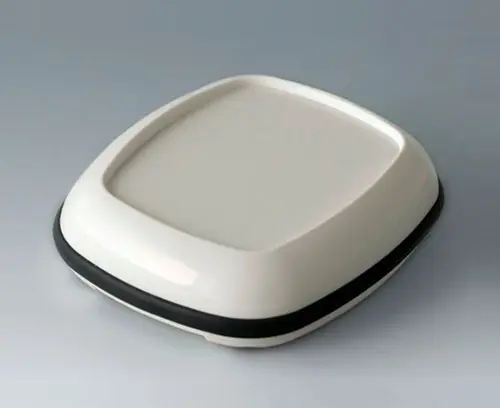

B1606217

BODY-CASE L, with recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Recessed area in top for locating a membrane keyboard or decor foil. Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version With recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

关闭

B1606217

BODY-CASE L, with recess
产品已添加到关注清单中
ASA (UL 94 HB)
traffic white RAL 9016
55x46x16mm
IP 65
AltText

B1608107

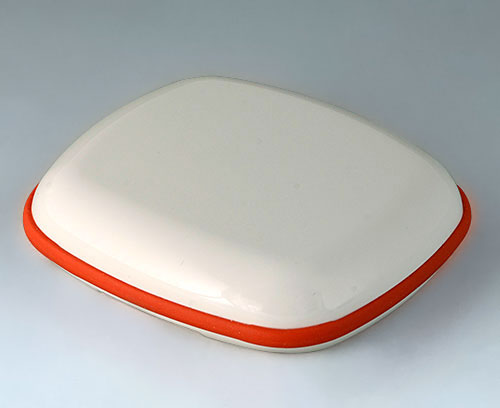

BODY-CASE XL, without recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version Without recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

关闭

B1608107

BODY-CASE XL, without recess
产品已添加到关注清单中
ASA (UL 94 HB)
traffic white RAL 9016
62x56x18mm
IP 65
AltText

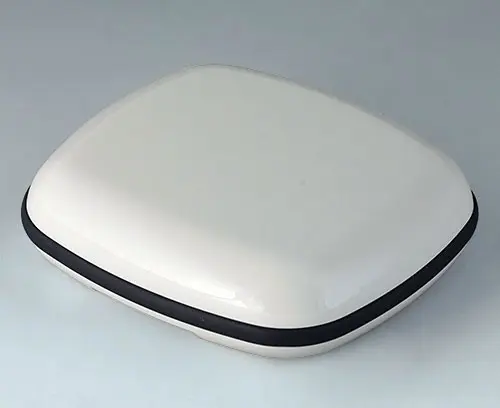

B1608117

BODY-CASE XL, without recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version Without recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

关闭

B1608117

BODY-CASE XL, without recess
产品已添加到关注清单中
ASA (UL 94 HB)
traffic white RAL 9016
62x56x18mm
IP 65
AltText

B1608207

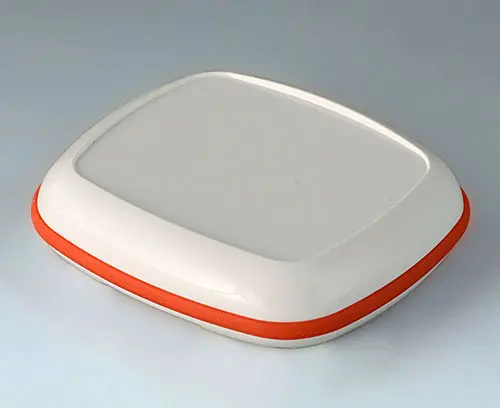

BODY-CASE XL, with recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Recessed area in top for locating a membrane keyboard or decor foil. Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version With recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

关闭

B1608207

BODY-CASE XL, with recess
产品已添加到关注清单中
ASA (UL 94 HB)
traffic white RAL 9016
62x56x17mm
IP 65
AltText

B1608217

BODY-CASE XL, with recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Recessed area in top for locating a membrane keyboard or decor foil. Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version With recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

关闭

B1608217

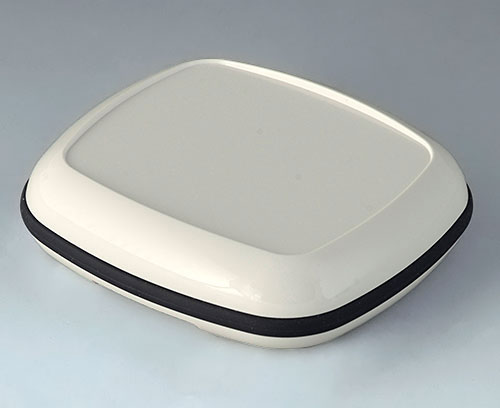

BODY-CASE XL, with recess
产品已添加到关注清单中
ASA (UL 94 HB)
traffic white RAL 9016
62x56x17mm
IP 65
AltText

A0325080

Self-tapping screws 2.5 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

关闭

A0325080

Self-tapping screws 2.5 x 8 mm (PZ1)
产品已添加到关注清单中
AltText

A0399T06

Torx T6 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T6 type screws. (The original part may differ from the part shown in the picture.)

Supply 1 T6 screwdriver

关闭

A0399T06

Torx T6 screwdriver
产品已添加到关注清单中
AltText

A9164001

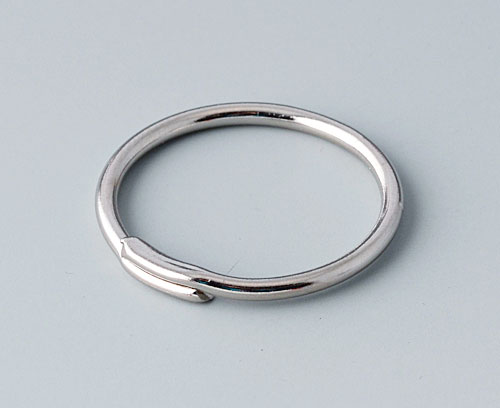

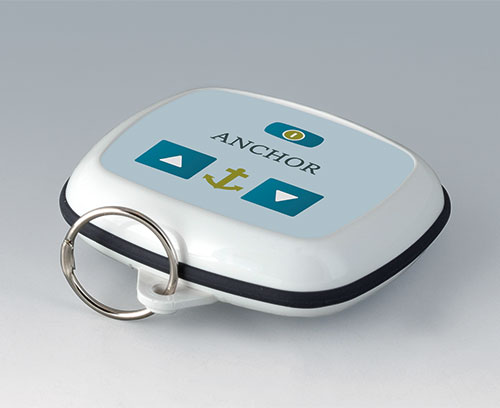

Key ring Version: diameter = 20.5 mm.

Supply 1 key ring

关闭

A9164001

Key ring
产品已添加到关注清单中
Steel
nickel-plated
20.5mm
AltText

B1704017

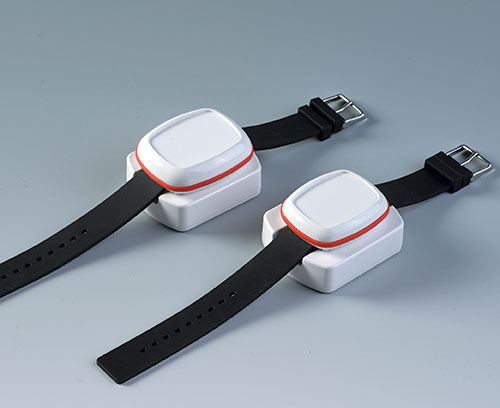

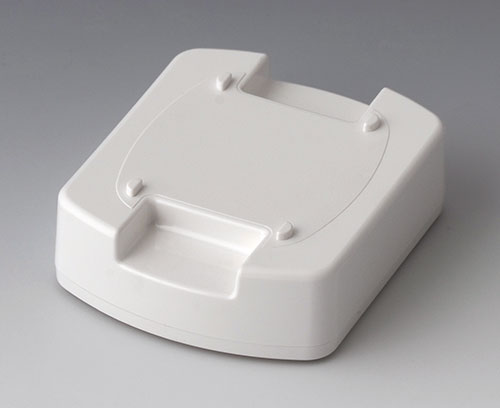

Station M For storing BODY-CASE M when not in use, and for fitting electronics, in particular for inductive charging of the device. Guides in the top part allow the enclosure to be easily located into position. On request, the stations can be mounted in series, for example as a charging console.

Exception: enclosure with belt / pocket clip. Inductive charging is not possible here.

Supply Top part, bottom panel, assembly kit

关闭

B1704017

Station M
产品已添加到关注清单中
ASA (UL 94 HB)
traffic white RAL 9016
62x50x17mm
AltText

B1704807

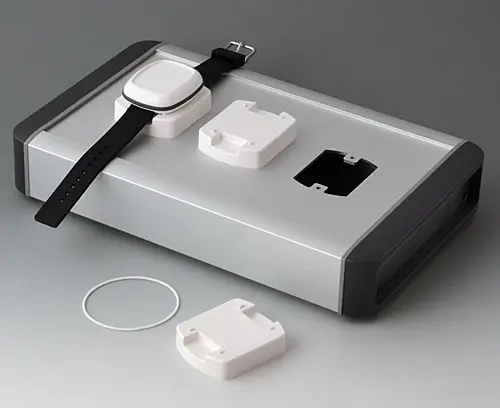

Station M (Mountable) Station top part only, for mounting individually or in series on a table stand, equipment housing or the like. Used as a storage or charging cradle for BODY-CASE M when it is not in use. For example, inductive charging electronics can be fitted inside. Guides in the top allow the enclosure to be easily located into position. An accessory seal (B1706003) is available for IP 54 protection class. Download the drawing for the mounting cut-out details.

Exception: enclosure with belt / pocket clip. Inductive charging is not possible here.

Supply 1 top part

关闭

B1704807

Station M (Mountable)
产品已添加到关注清单中
ASA (UL 94 HB)
traffic white RAL 9016
62x50x17mm
AltText

B1706001

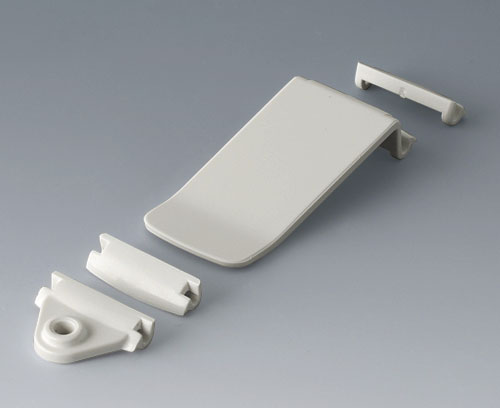

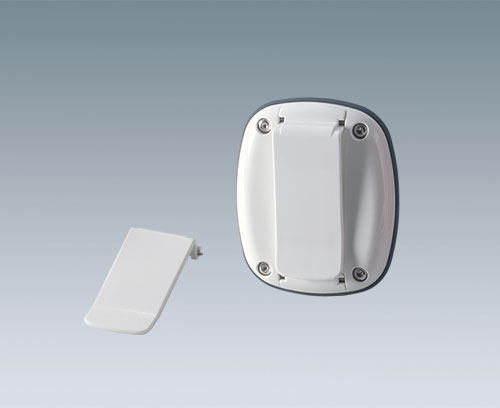

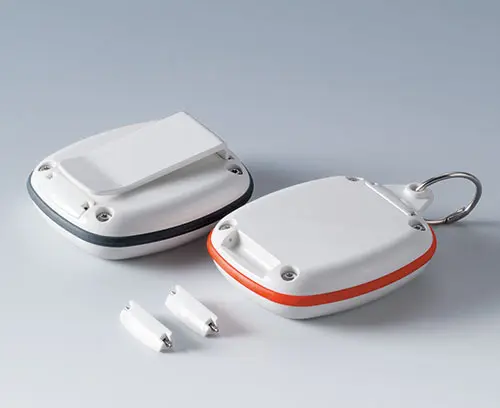

Eyelet / pocket clip kit Special accessories for BODY-CASE. Kit consisting of 1 pocket clip for shirt or trouser pocket, 1 fastening eyelet for lanyard/chain/cord as well as 2 covers for closing one or both rear wrist strap attachments if required. Fastening with spring bars (supplied with the enclosures).

Supply 1 kit

关闭

B1706001

Eyelet / pocket clip kit
产品已添加到关注清单中
ASA (UL 94 HB)
traffic white RAL 9016
AltText

B1706003

Seal, for Station (Mountable) M/L Application: Fits into a groove in the top part of the size M and size L Stations (Mountable) for increasing the protection class.

Supply 1 seal

关闭

B1706003

Seal, for Station (Mountable) M/L
产品已添加到关注清单中
AltText

B1706017

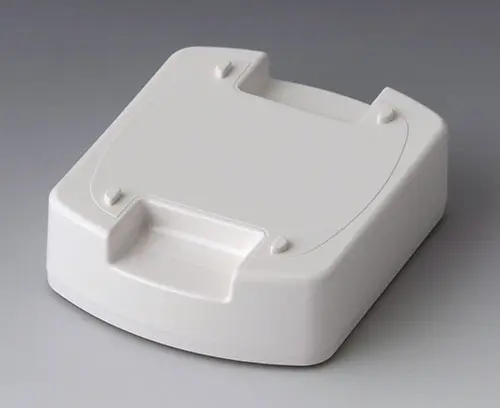

Station L For storing BODY-CASE L when not in use, and for fitting electronics, in particular for inductive charging of the device. Guides in the top part allow the enclosure to be easily located into position. On request, the stations can be mounted in series, for example as a charging console.

Exception: enclosure with belt / pocket clip. Inductive charging is not possible here.

Supply Top part, bottom panel, assembly kit

关闭

B1706017

Station L
产品已添加到关注清单中
ASA (UL 94 HB)
traffic white RAL 9016
62x50x17mm
AltText

B1706202

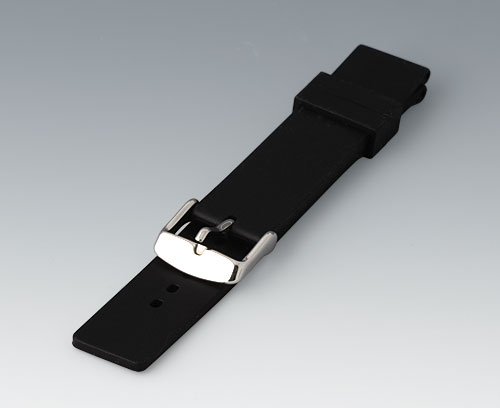

Wrist strap, 18 mm Special wrist strap made of silicone for BODY-CASE: elastic, waterproof and comfortable to wear. The smooth surface is also easy to clean. Spring bar width 18 mm. Total length without buckle approx. 193 mm. Buckle made of stainless steel. Fastening with spring bars (supplied with the enclosures).

Supply 1 wrist strap

关闭

B1706202

Wrist strap, 18 mm
产品已添加到关注清单中
Silicone
black
AltText

B1706203

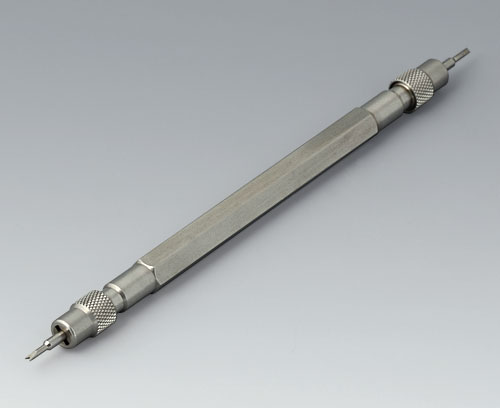

Spring bar tool Tool with "fork-shaped" end for the easy insertion and removal of the spring bars of the wrist strap, belt / pocket clip, eyelet and covers. Pointed end suitable as an instrument for pushing out pins in metal wrist straps with flexible chain links, or in buckles. (The original part may differ from the part shown in the picture.)

Supply 1 Spring bar tool

关闭

B1706203

Spring bar tool
产品已添加到关注清单中
Stainless steel
AltText

B1706807

Station L (Mountable) Station top part only, for mounting individually or in series on a table stand, equipment housing or the like. Used as a storage or charging cradle for BODY-CASE L when it is not in use. For example, inductive charging electronics can be fitted inside. Guides in the top allow the enclosure to be easily located into position. An accessory seal (B1706003) is available for IP 54 protection class. Download the drawing for the mounting cut-out details.

Exception: enclosure with belt / pocket clip. Inductive charging is not possible here.

Supply 1 top part

关闭

B1706807

Station L (Mountable)
产品已添加到关注清单中
ASA (UL 94 HB)
traffic white RAL 9016
62x50x17mm
AltText

B9100063

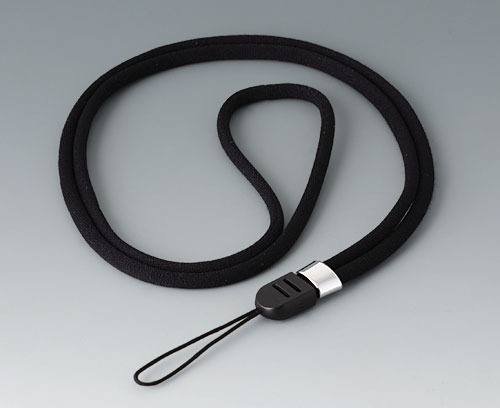

Carrying strap, textile lanyard Textile lanyard with loop attachment.

ATTTENTION, PART TO BE DISCONTINUED:
The article is only available in limited quantities. Please ask for it!

Supply 1 lanyard

关闭

B9100063

Carrying strap, textile lanyard
产品已添加到关注清单中
black
860mm

产品类型用于 Body-Case 携戴盒

如何体现您的特殊产品? 如有需要,我们执行所有必要的修改和精加工,提供组装完毕的机盒。
